Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

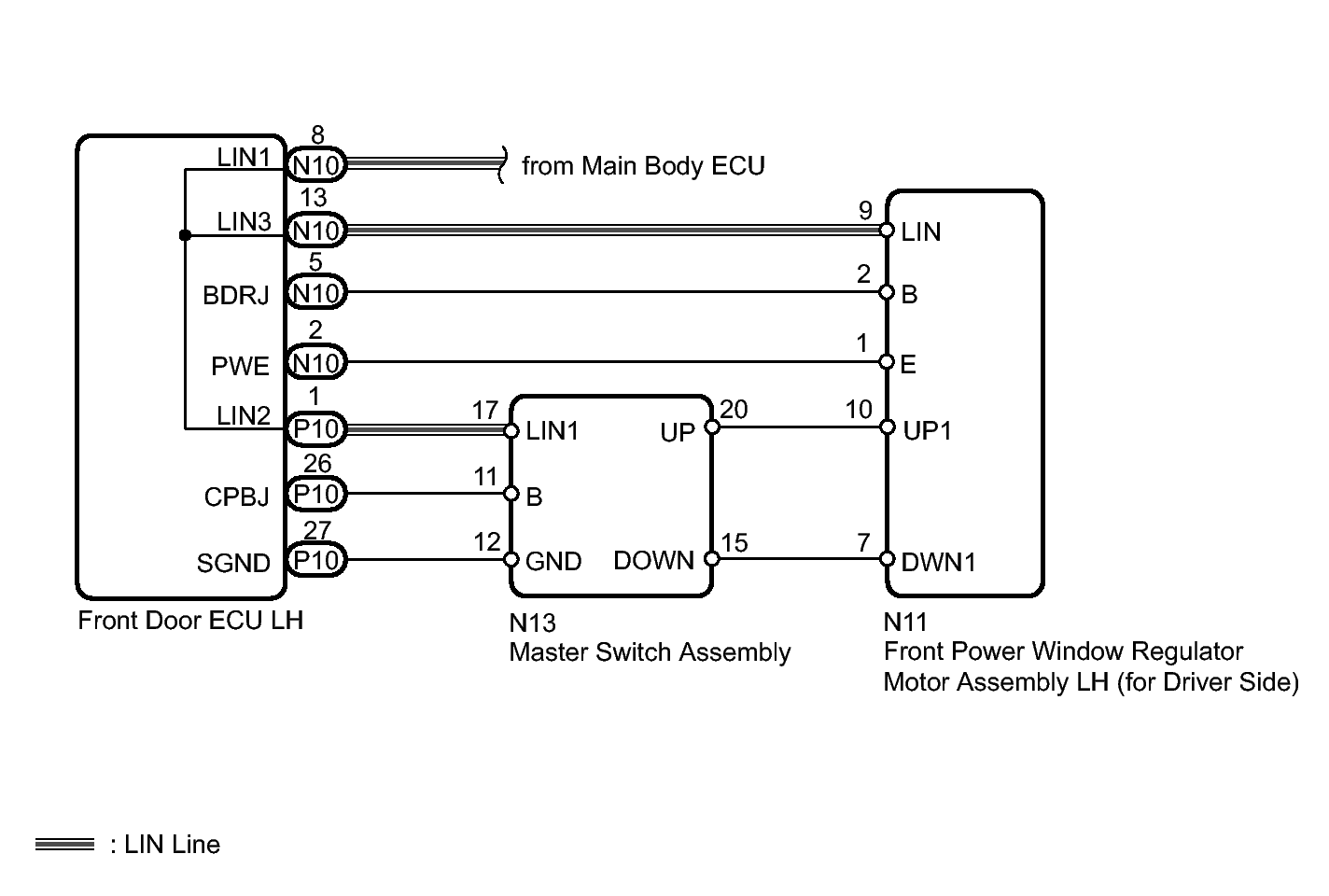

Fig 1: Driver Side Power Window Wiring Diagram
GTY121169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
