Cigarette Lighter: Notes

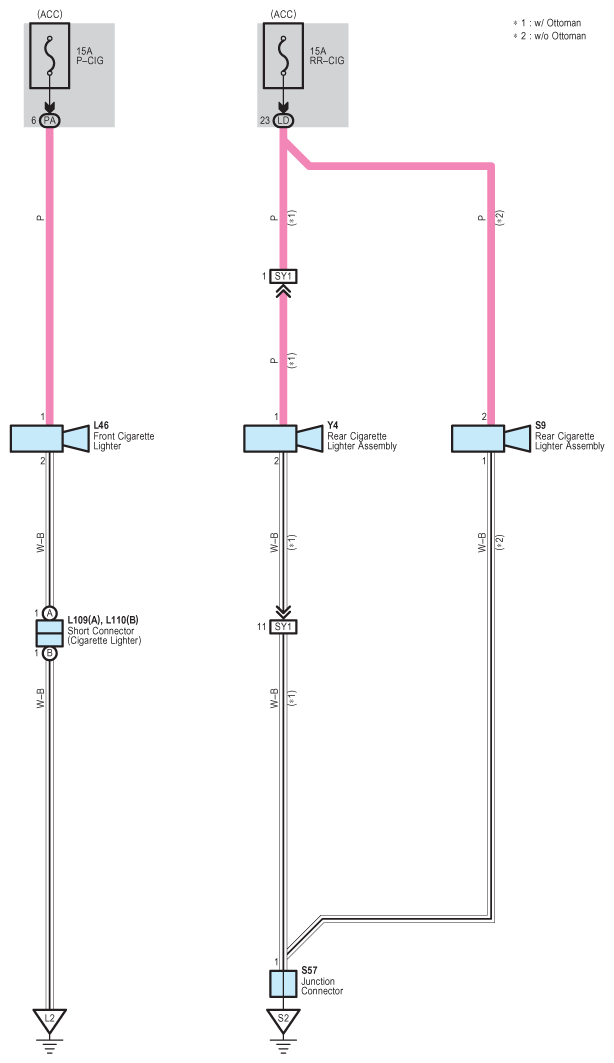

Fig 1: Cigarette Lighter - Circuit Diagram
G07607248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
