Lexus
›
2009
›
LS 600hL
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Headlight Cleaner
›
Notes
Headlight Cleaner: Notes

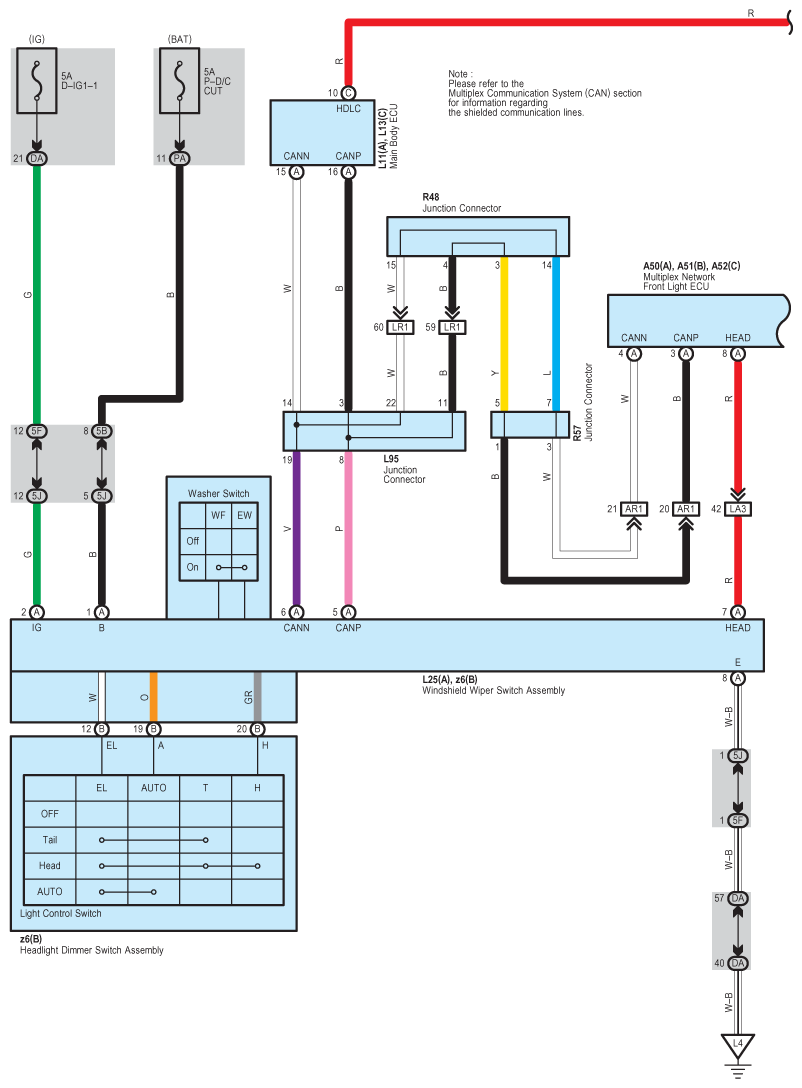

Fig 1: Headlight Cleaner - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

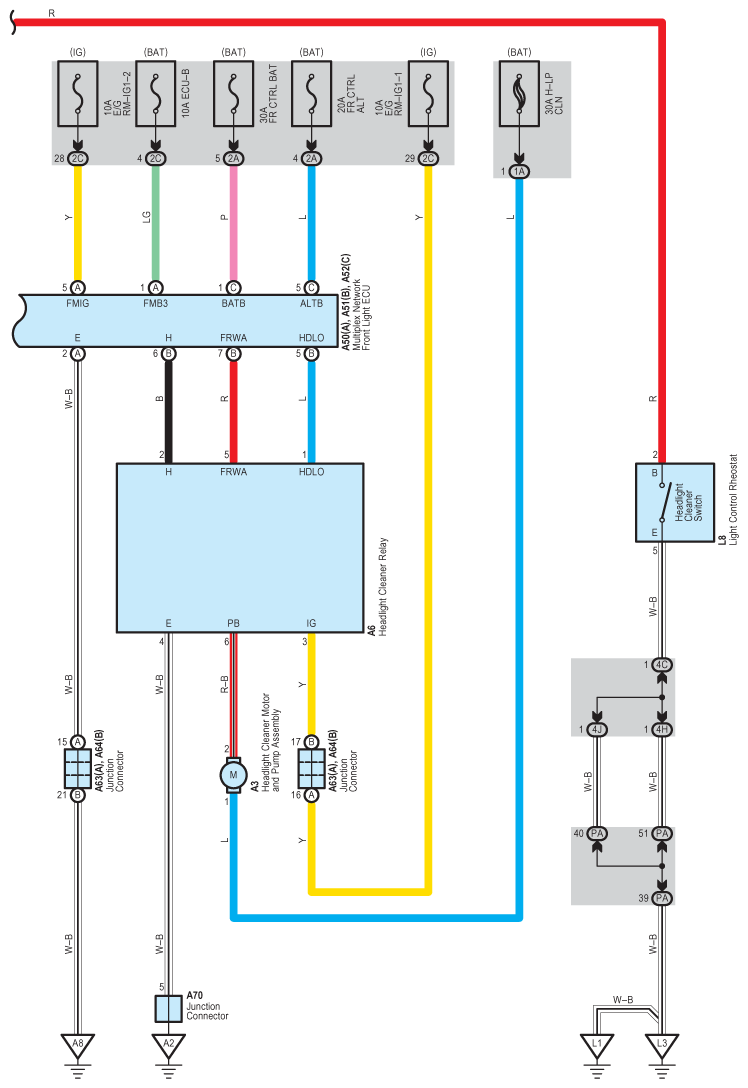

Fig 2: Headlight Cleaner - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
