Vibration Seat: Notes

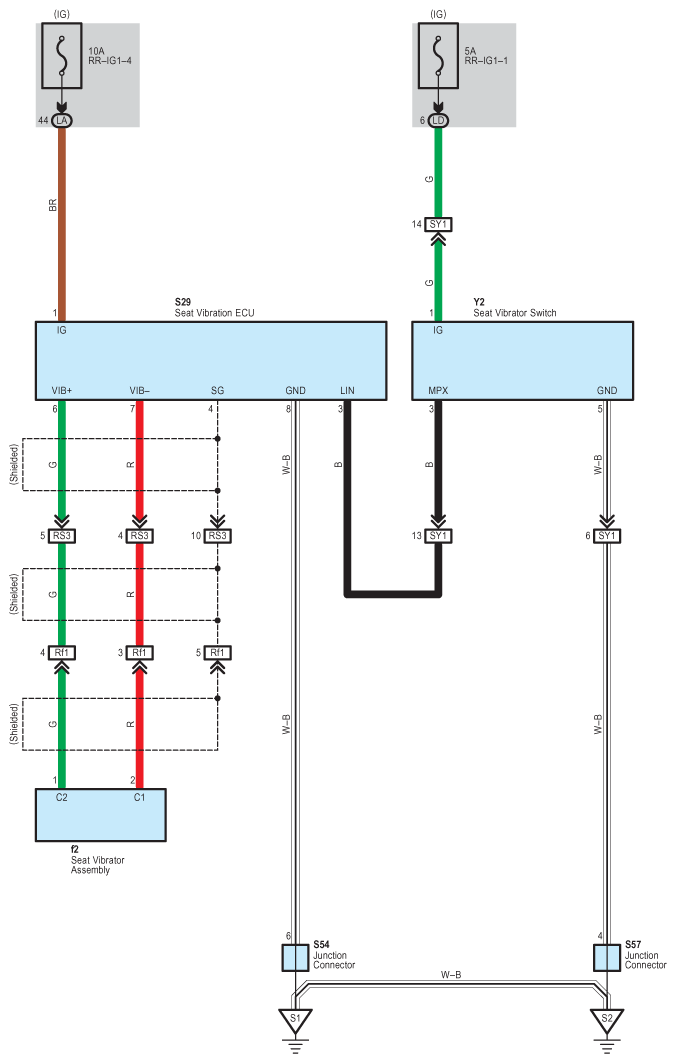

Fig 1: Vibration Seat - Circuit Diagram
G07607245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
