Parts Location: Illustration

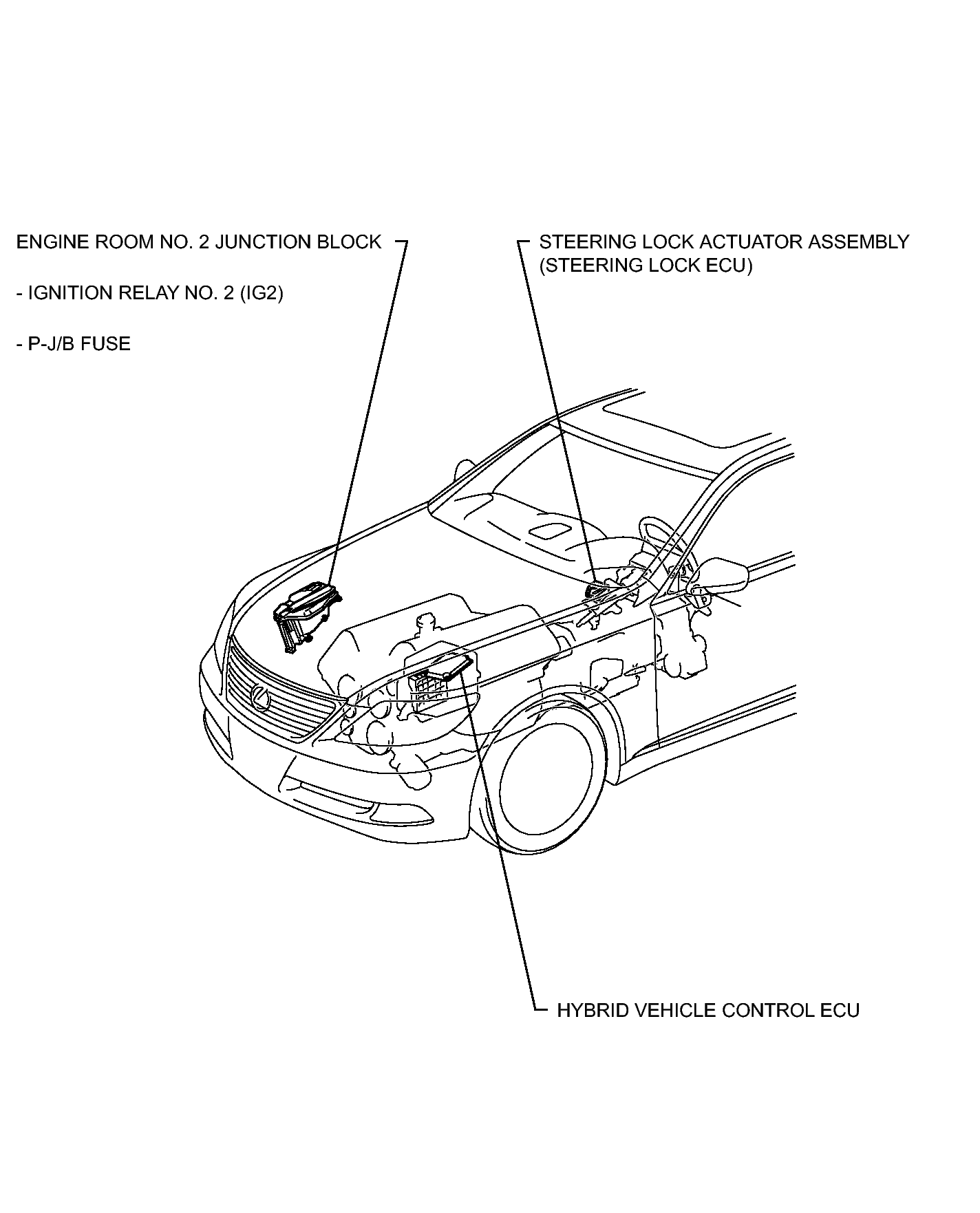

Fig 1: Identifying Smart Access System With Push-Button Start Parts Location (1 Of 2)
GTY133786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

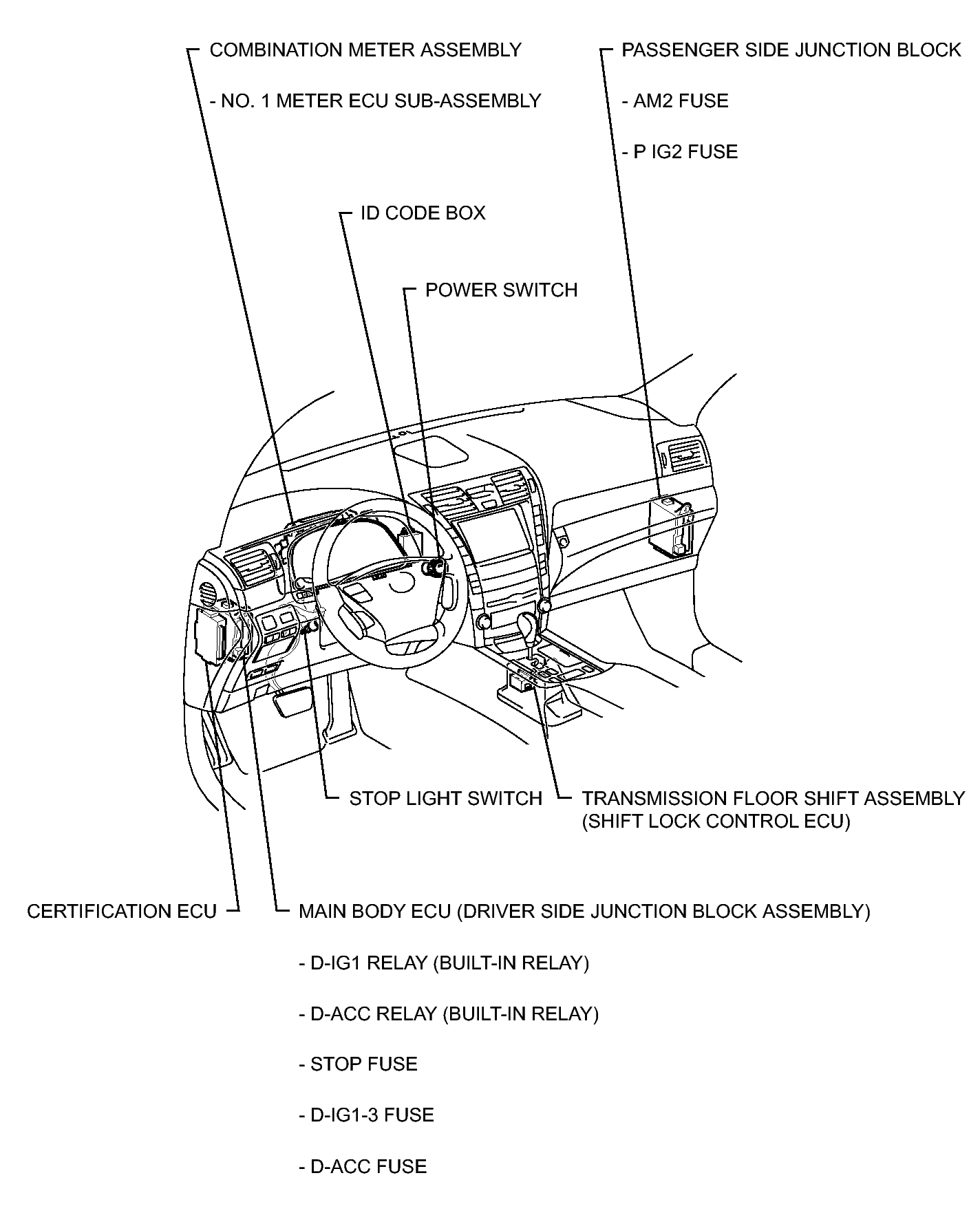

Fig 1: Identifying Smart Access System With Push-Button Start Parts Location (2 Of 2)
GTY109928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
