System Diagram

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
  1. EVAP CONTROL SYSTEM DIAGRAM

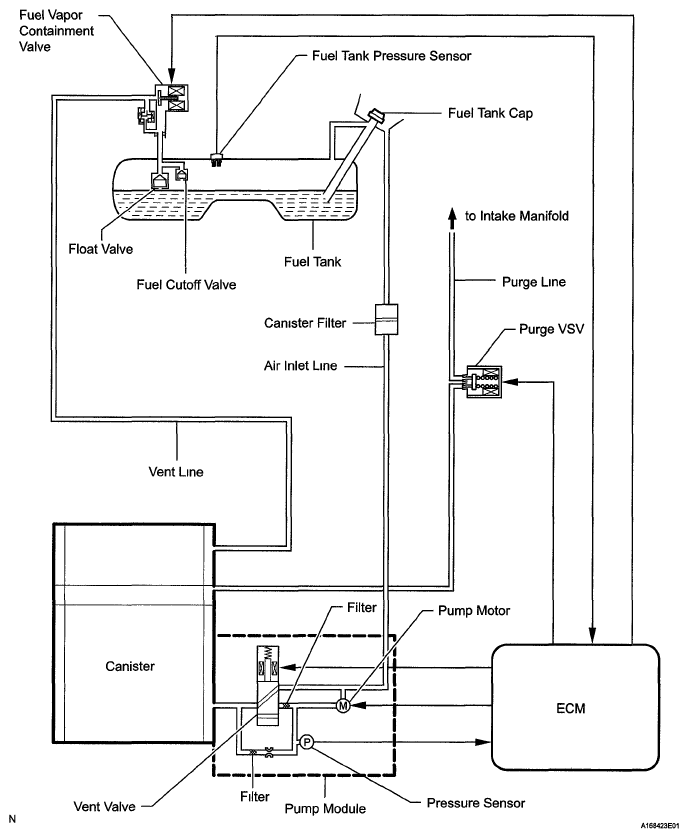

    Fig 1: EVAP Control System Diagram
    G05773091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. EVAP CONTROL WIRING DIAGRAM

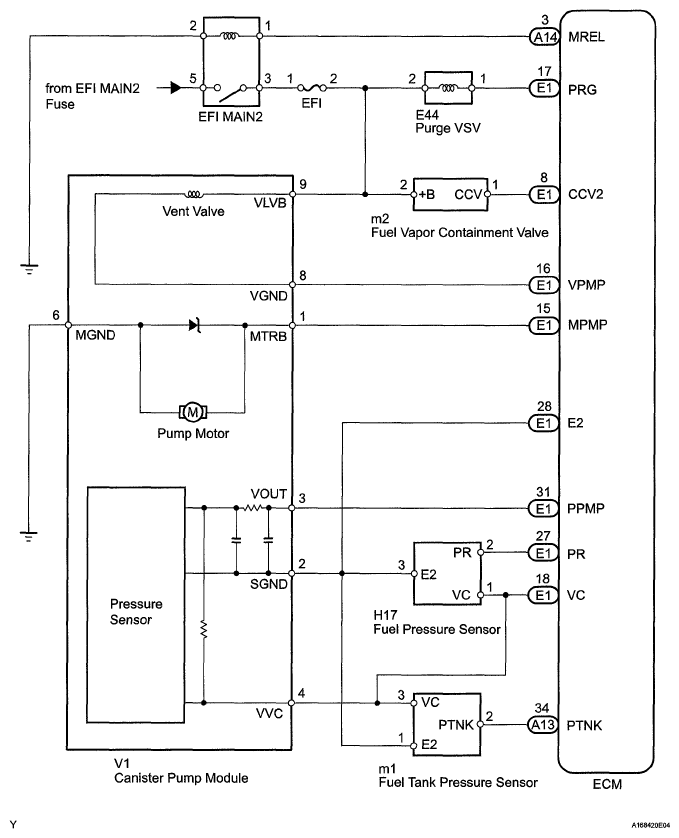

    Fig 2: EVAP Control Wiring Diagram
    G05773092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. HYDROCARBON ABSORBER SYSTEM DIAGRAM

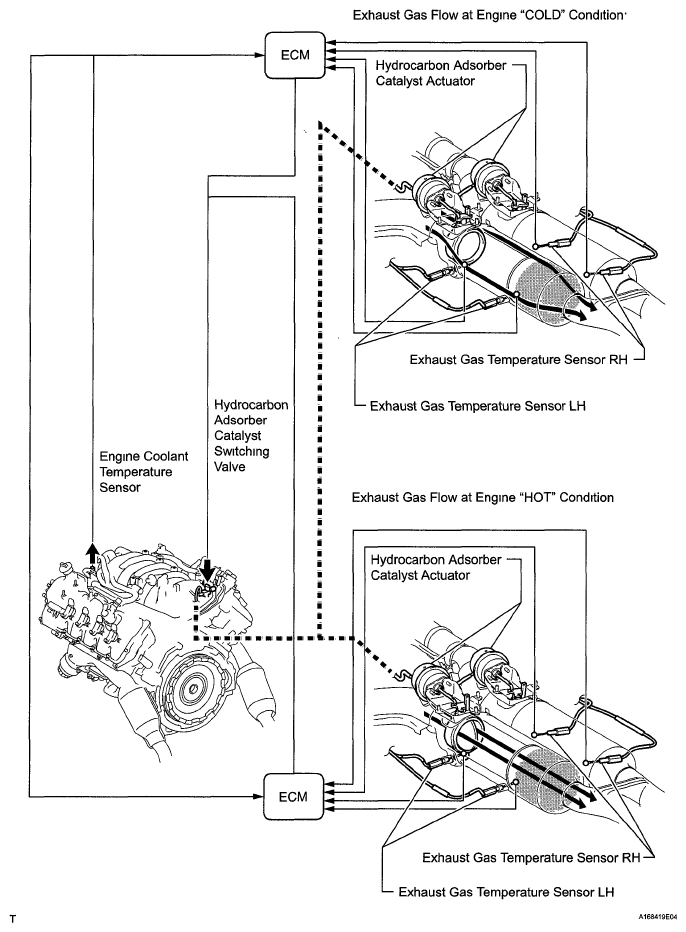

    Fig 3: Hydrocarbon Absorber System Diagram
    G05773093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. HYDROCARBON ABSORBER WIRING DIAGRAM

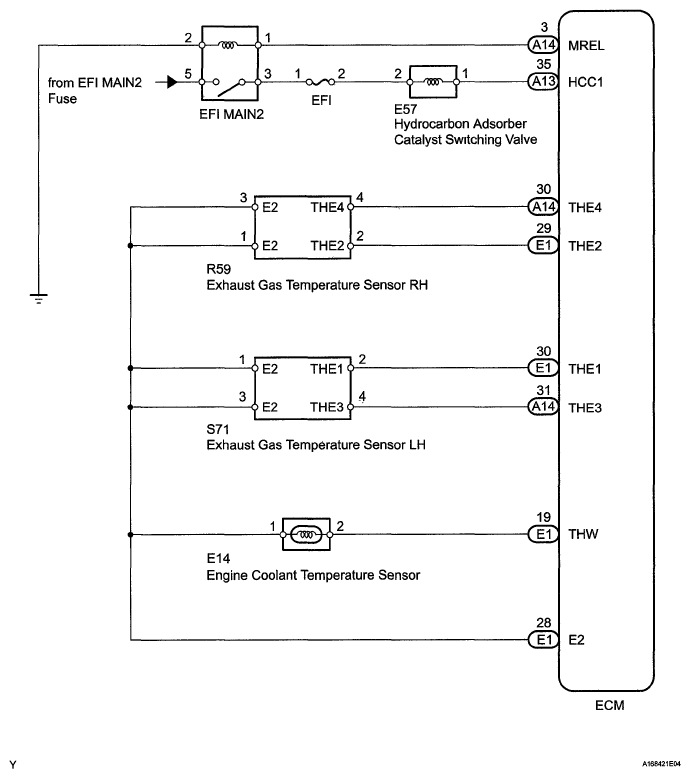

    Fig 4: Hydrocarbon Absorber Wiring Diagram
    G05773094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
