Fuel Tank Pressure Sensor: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

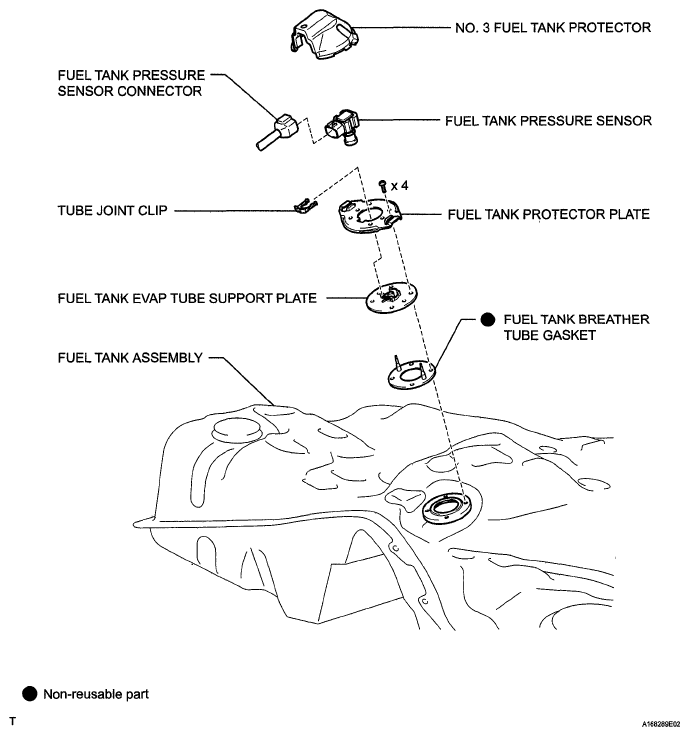

Fig 1: Identifying Fuel Tank Pressure Sensor Components
G05773171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
