Blower Unit: Installation

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL AIR FILTER
1. Attach the 2 claws to install the filter

  Fig 1: Identifying Air Filter Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BLOWER WITH FAN MOTOR SUB-ASSEMBLY
1. Install the motor with the 3 screws

  Fig 2: Identifying Blower With Fan Motor And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DAMPER SERVO SUB-ASSEMBLY
1. Install the damper servo with the 3 screws

  Fig 3: Locating Damper Servo Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BLOWER ASSEMBLY
1. Attach the claw to install the blower unit.
2. Connect the connector.
3. Install the screw
INSTALL AIR CONDITIONING UNIT
1. Install the air conditioning unit (see REASSEMBLY ).

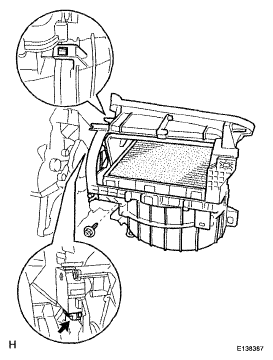

  Fig 4: Identifying Blower Unit Connector And Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
