Refrigerant Line: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

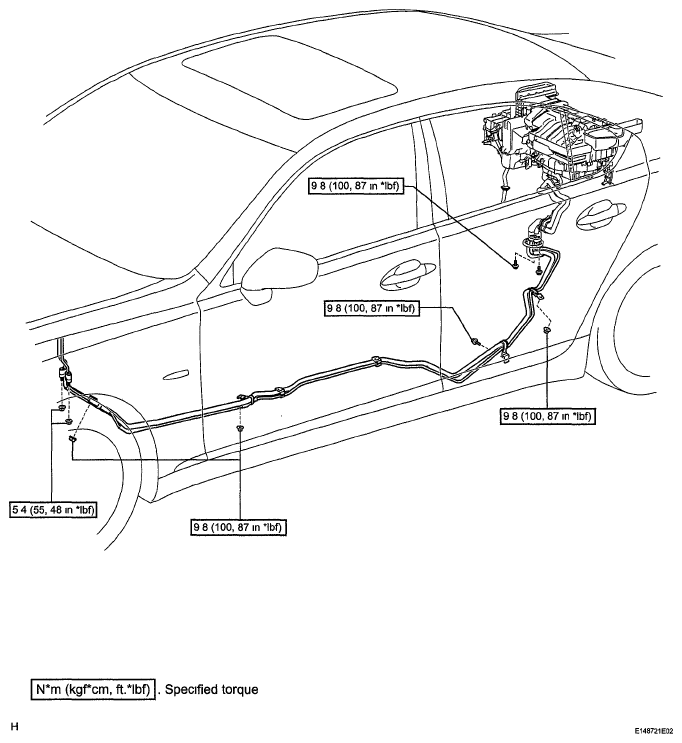

Fig 1: Refrigerant Line Replacement Components With Torque Specifications (1 Of 2)

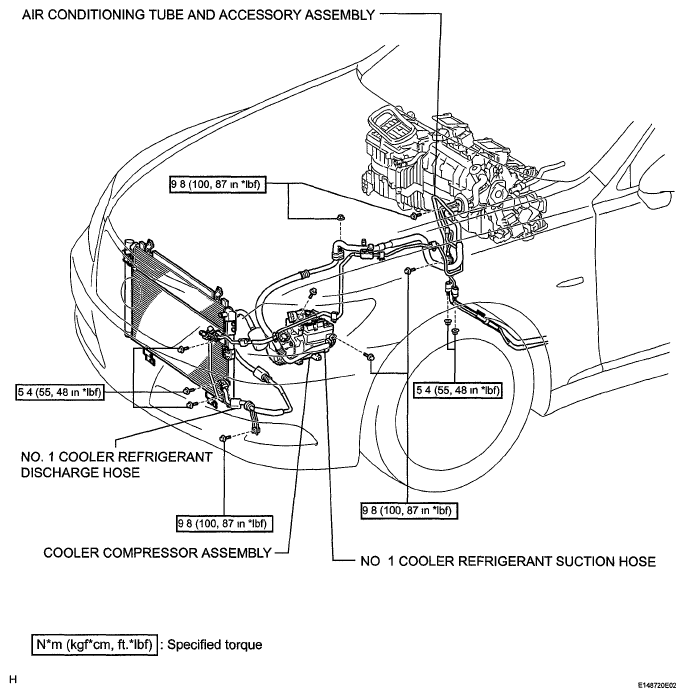

Fig 2: Refrigerant Line Replacement Components With Torque Specifications (2 Of 2)
