Differential Carrier Assembly: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

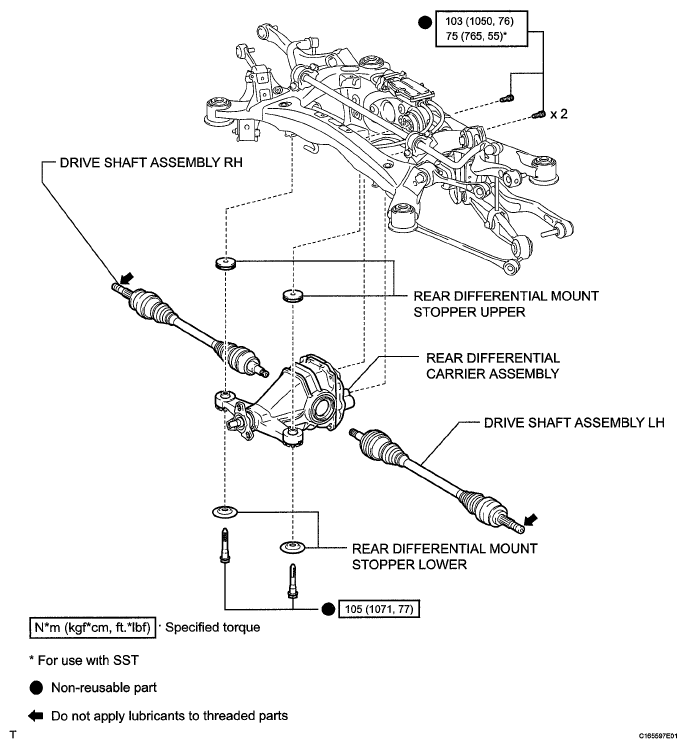

Fig 1: Differential Carrier Assembly Replacement Components With Torque Specifications (1 Of 3)
G05781227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

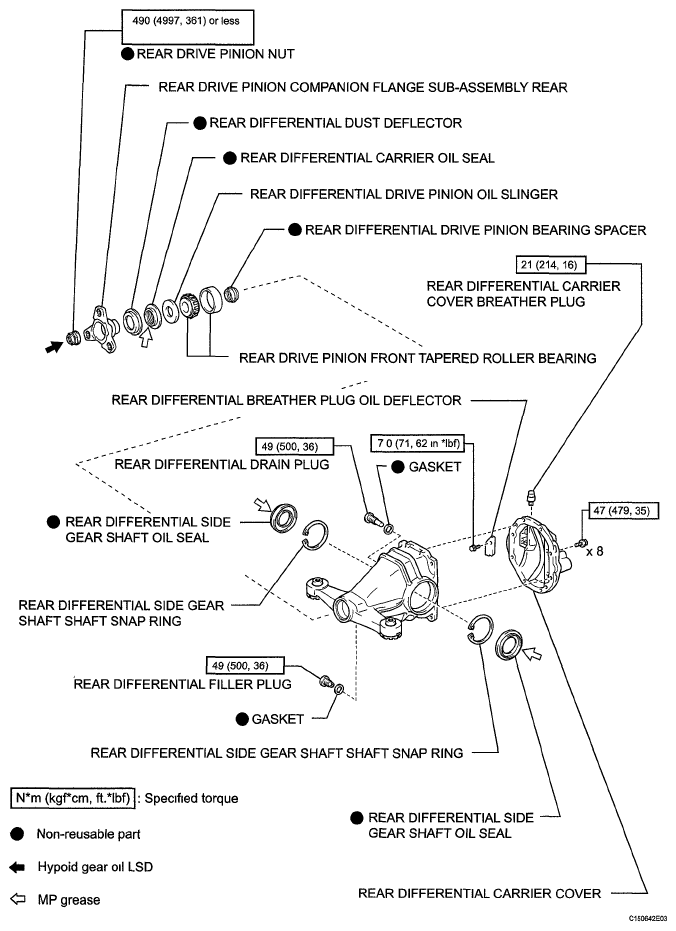

Fig 2: Differential Carrier Assembly Replacement Components With Torque Specifications (2 Of 3)
G05781228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

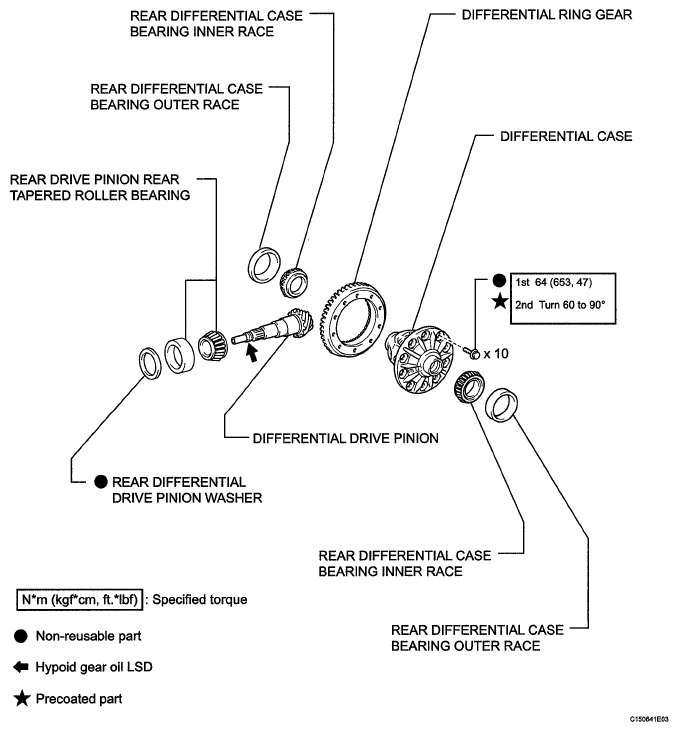

Fig 3: Differential Carrier Assembly Replacement Components With Torque Specifications (3 Of 3)
G05781229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
