Driver Side Knee Airbag Assembly: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

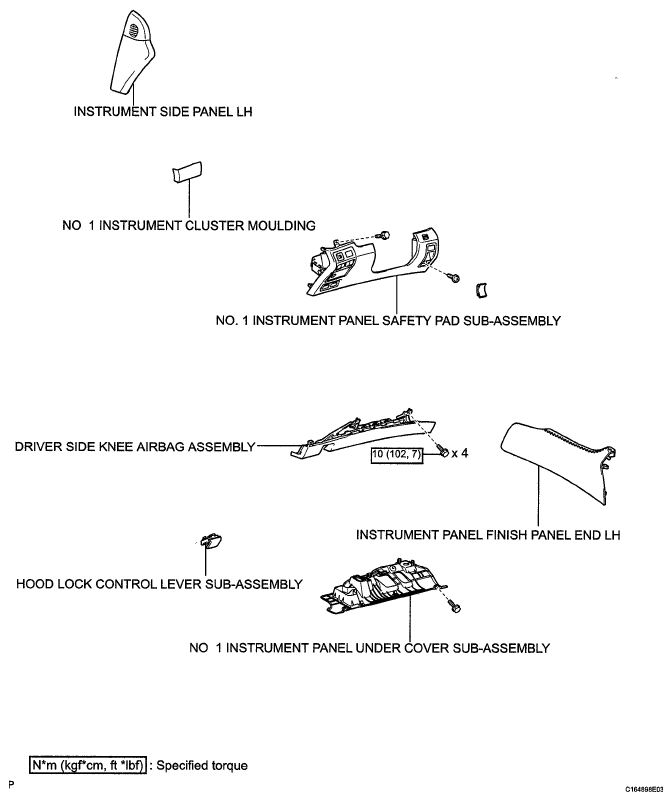

Fig 1: Identifying Driver Side Knee Airbag Assembly Components (1 Of 2)

Fig 2: Driver Side Knee Airbag Assembly Replacement Components With Torque Specifications (2 Of 2)
