Rear Airbag Sensor: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Rear Airbag Sensor Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

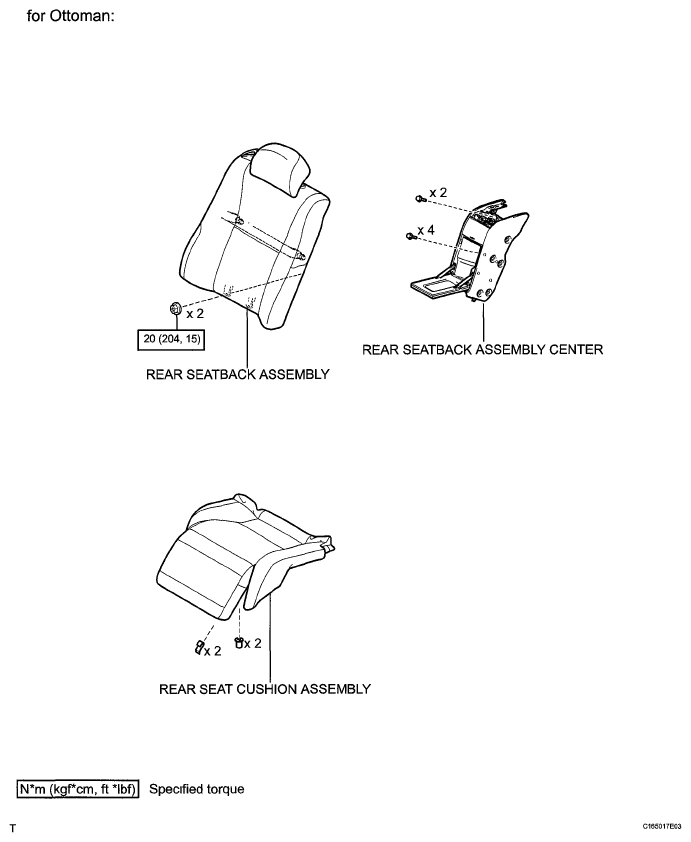

Fig 2: Rear Airbag Sensor Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

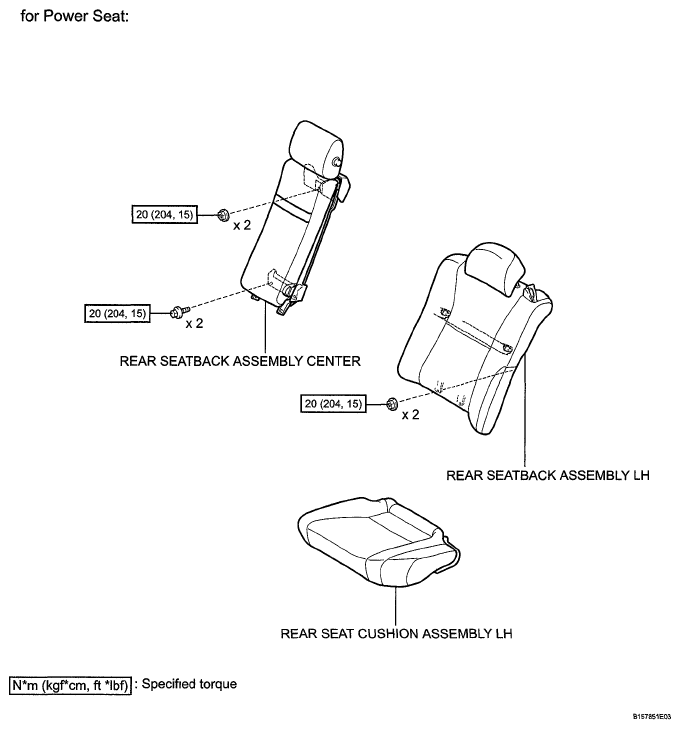

Fig 3: Rear Airbag Sensor Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

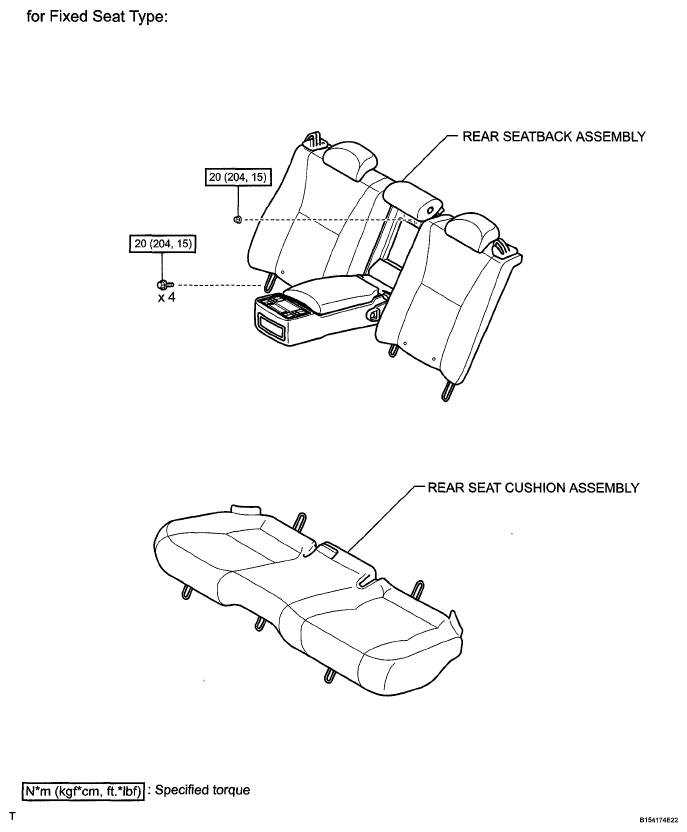

Fig 4: Rear Airbag Sensor Replacement Components With Torque Specifications (4 Of 6)

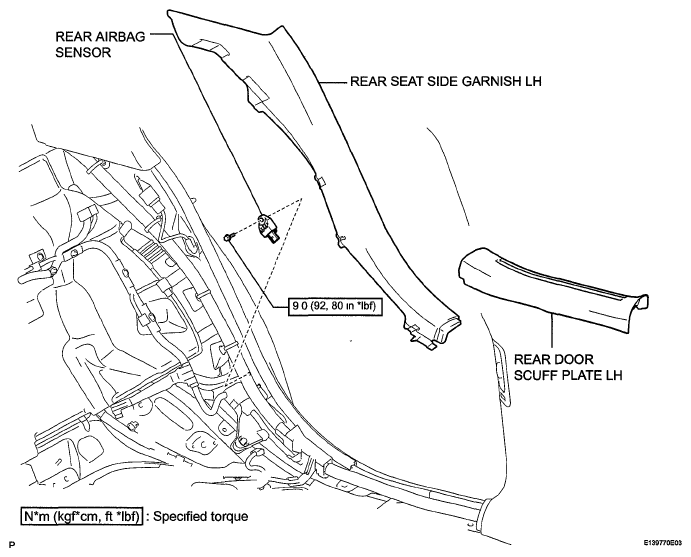

Fig 5: Rear Airbag Sensor Replacement Components With Torque Specifications (5 Of 6)

Fig 6: Rear Airbag Sensor Replacement Components With Torque Specifications (6 Of 6)
