Exhaust Pipe: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

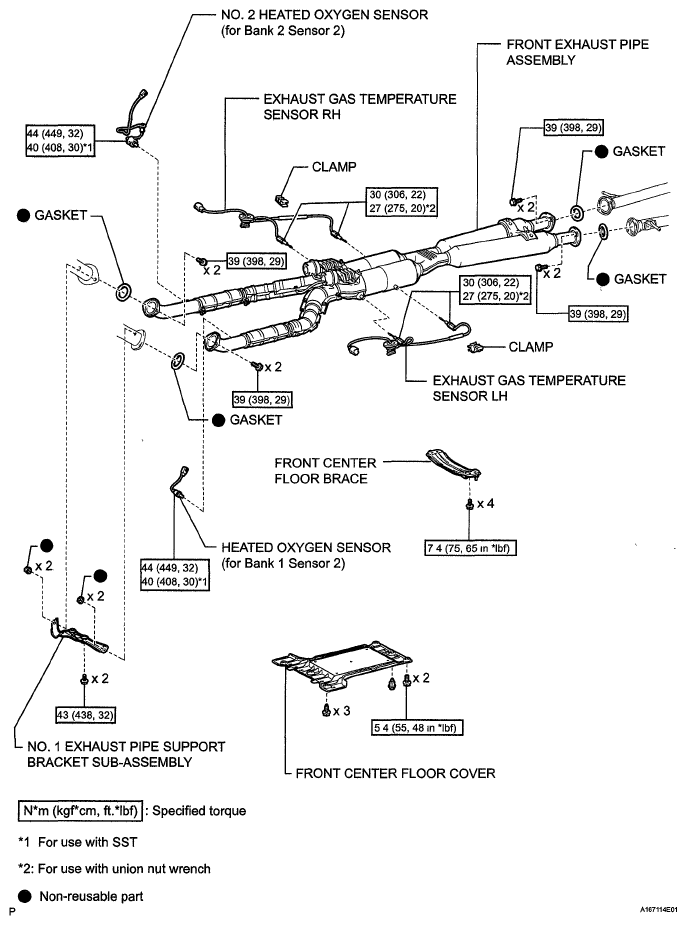

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications (2 Of 3)

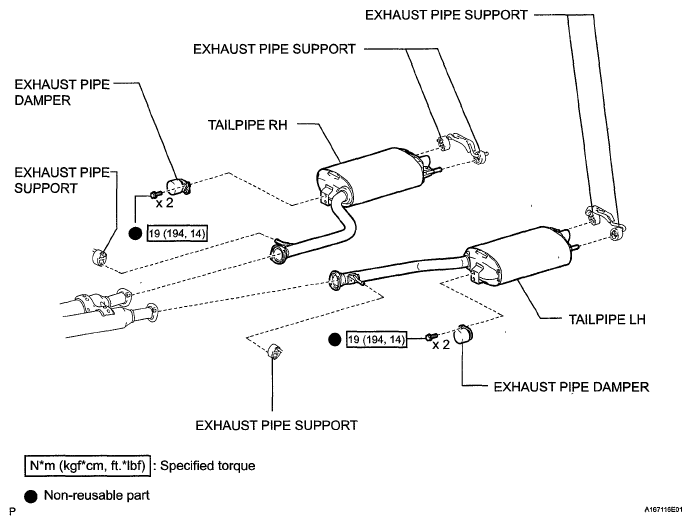

Fig 3: Exhaust Pipe Replacement Components With Torque Specifications (3 Of 3)
