System Diagram

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

HINT.

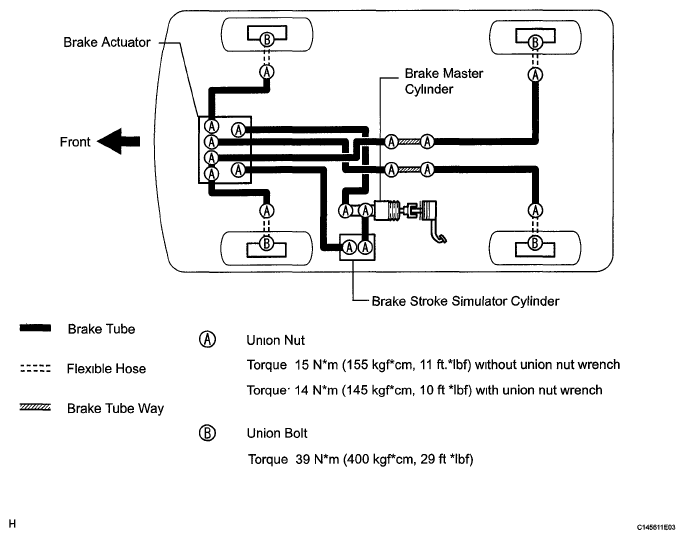

Refer to the diagram below to confirm the locations and tightening torque of the flexible hoses and brake tubes

Fig 1: Brake - System Diagram
G05781961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
