Stereo Component Amplifier: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Stereo Component Amplifier Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Stereo Component Amplifier Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Stereo Component Amplifier Components (3 Of 4)

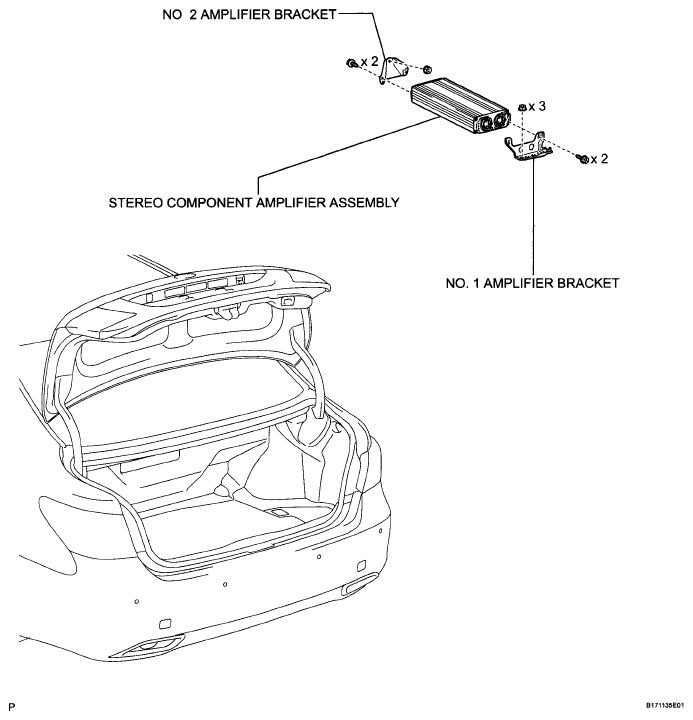

Fig 4: Identifying Stereo Component Amplifier Components (4 Of 4)
