Television Display: Installation

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TELEVISION DISPLAY BRACKET
1. Attach the claw of the bracket and move the bracket in the direction indicated by arrow A. Then attach a new clip to install the bracket
2. Install the 4 bolts.
INSTALL TELEVISION DISPLAY ASSEMBLY
1. Attach the 3 claws to install the television display

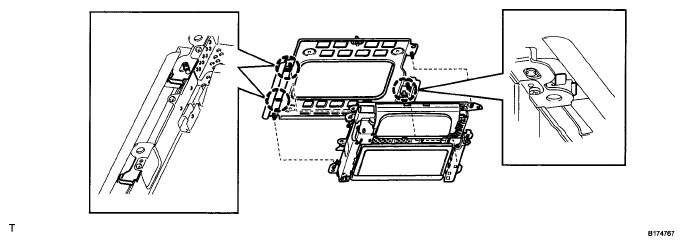

  Fig 1: Installing Television Display Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 2: Identifying Claws And Television Display
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. After installing the television display to the bracket, check that the display's holes and bracket's protrusions are as shown in the illustration

  Fig 3: Identifying Display Holes And Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 5 nuts.
4. Connect the connectors.

  Fig 4: Locating Nuts And Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF CONSOLE BOX ASSEMBLY
1. w/o Infrared Rays Sensor:
  1. Connect the connector.
  2. Attach the 2 claws, and then attach the 6 clips to install the roof console box.
  3. Install the 2 screws
2. w/ Infrared Rays Sensor.
  1. Connect the 2 connectors.
  2. Attach the 2 claws, and then attach the 6 clips to install the roof console box.
  3. Install the 2 screws.

    Fig 5: Identifying Roof Console Box Clips And Claws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPOT LIGHT LENS
1. Attach the 4 claws to install the lens
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).

Fig 6: Identifying Claws And Lens
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BATTERY SERVICE HOLE COVER LH (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (See INSTALLATION )
