Mayday Battery: Components
WARNING:
This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

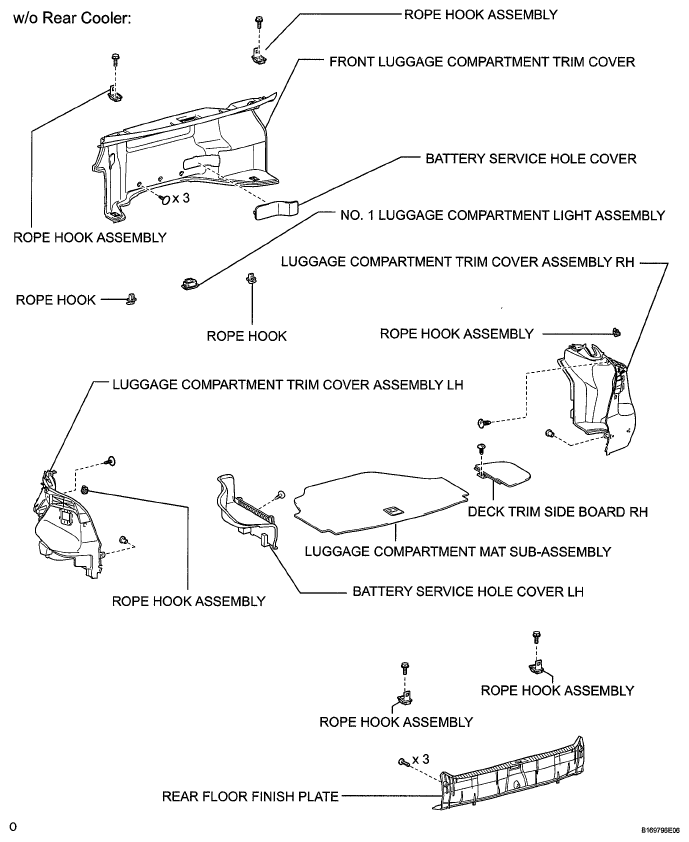

Fig 1: Identifying Mayday Battery Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

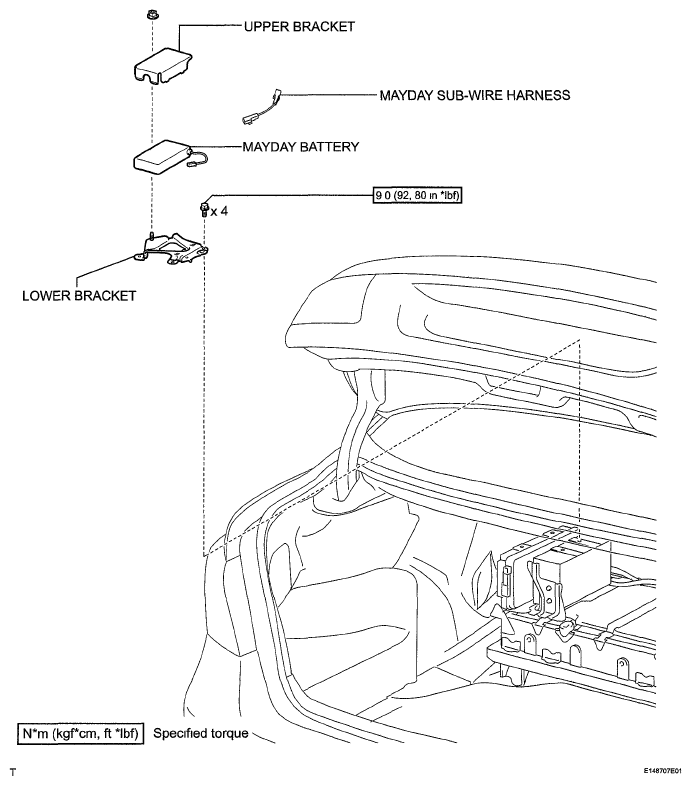

Fig 2: Identifying Mayday Battery Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

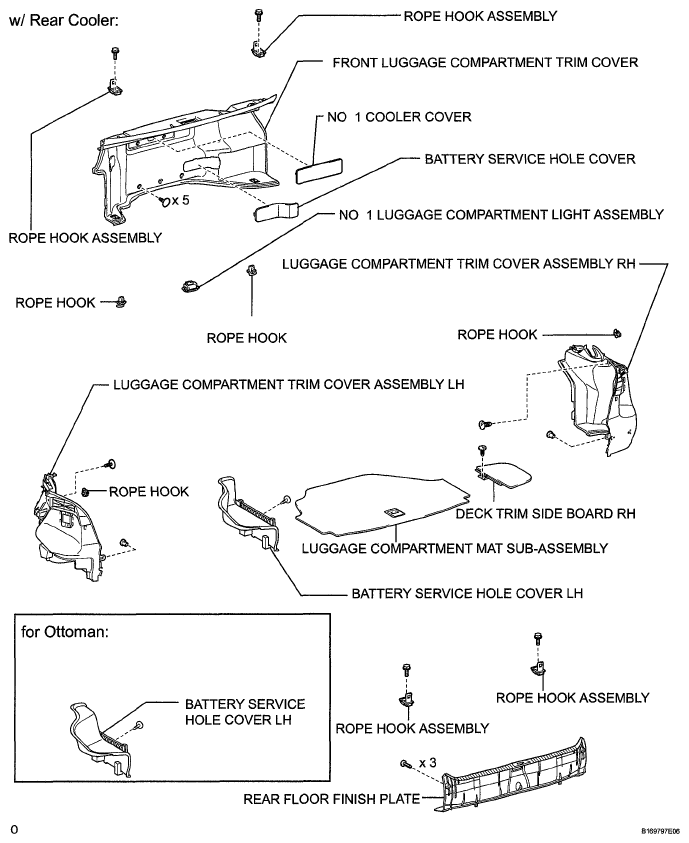

Fig 3: Identifying Mayday Battery Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
