Rocker Panel Moulding: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

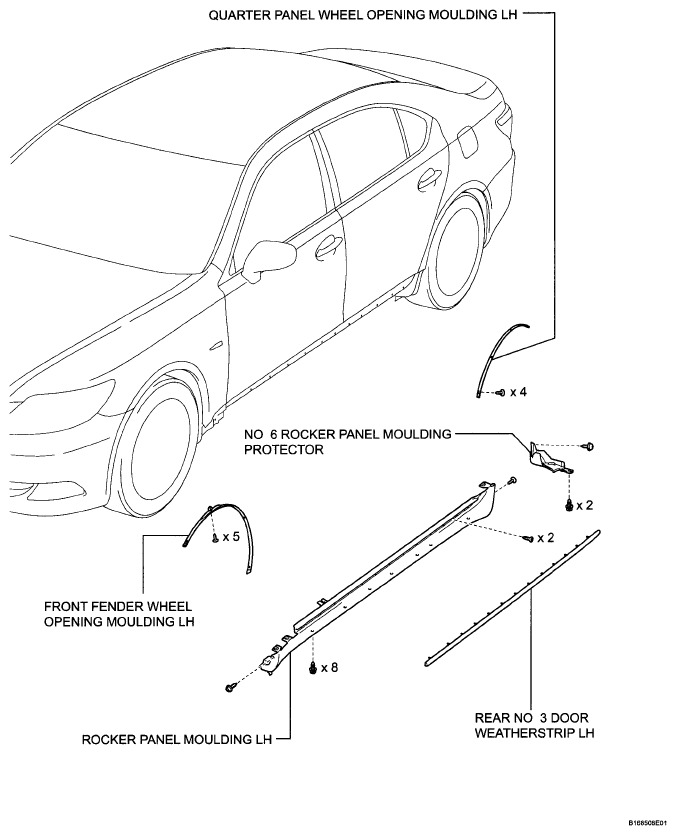

Fig 1: Identifying Rocker Panel Moulding Components (1 Of 2)
G05786740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

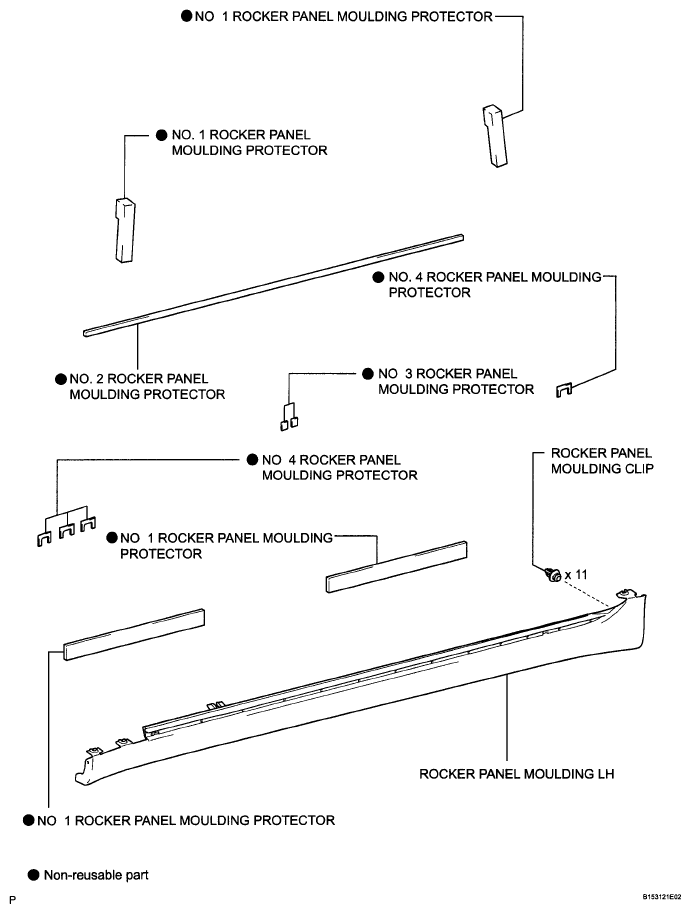

Fig 2: Identifying Rocker Panel Moulding (2 Of 2)
G05786741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
