System Diagram

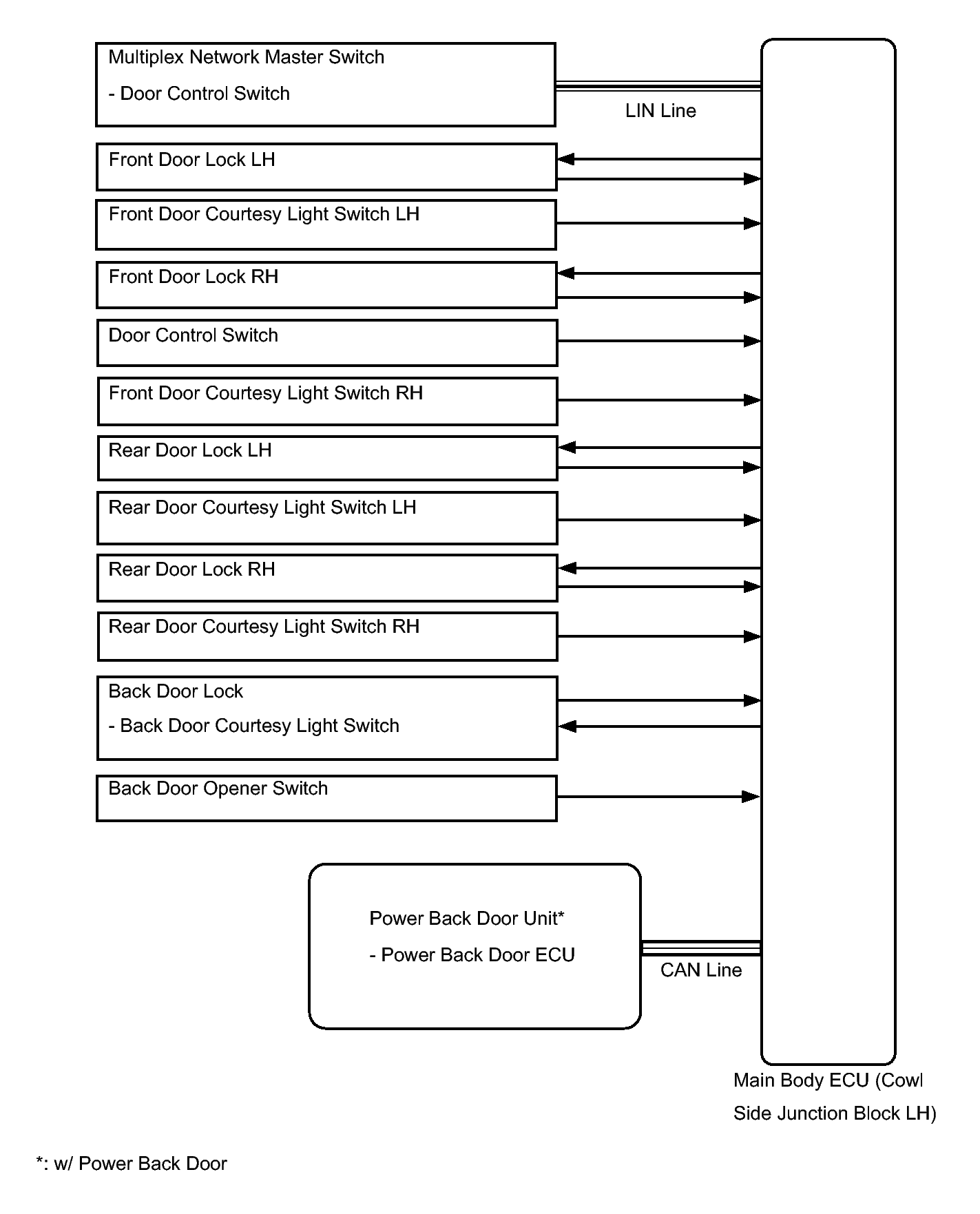

Fig 1: Power Door Lock Control System - System Diagram
GTY114853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Master Switch Main Body ECU Driver side door manual lock switch signal LIN
