OEM System Circuits
›
Back Door Opener without Power Back Door
›
Notes
Back Door Opener without Power Back Door: Notes

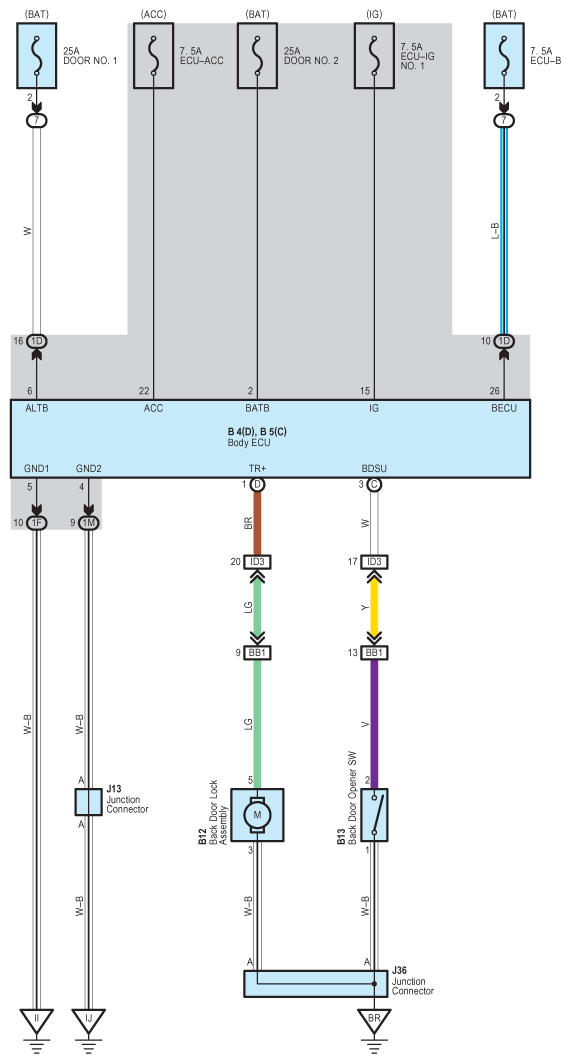

Fig 1: Back Door Opener Without Power Back Door - Circuit Diagram
