Cooling Fan: Notes

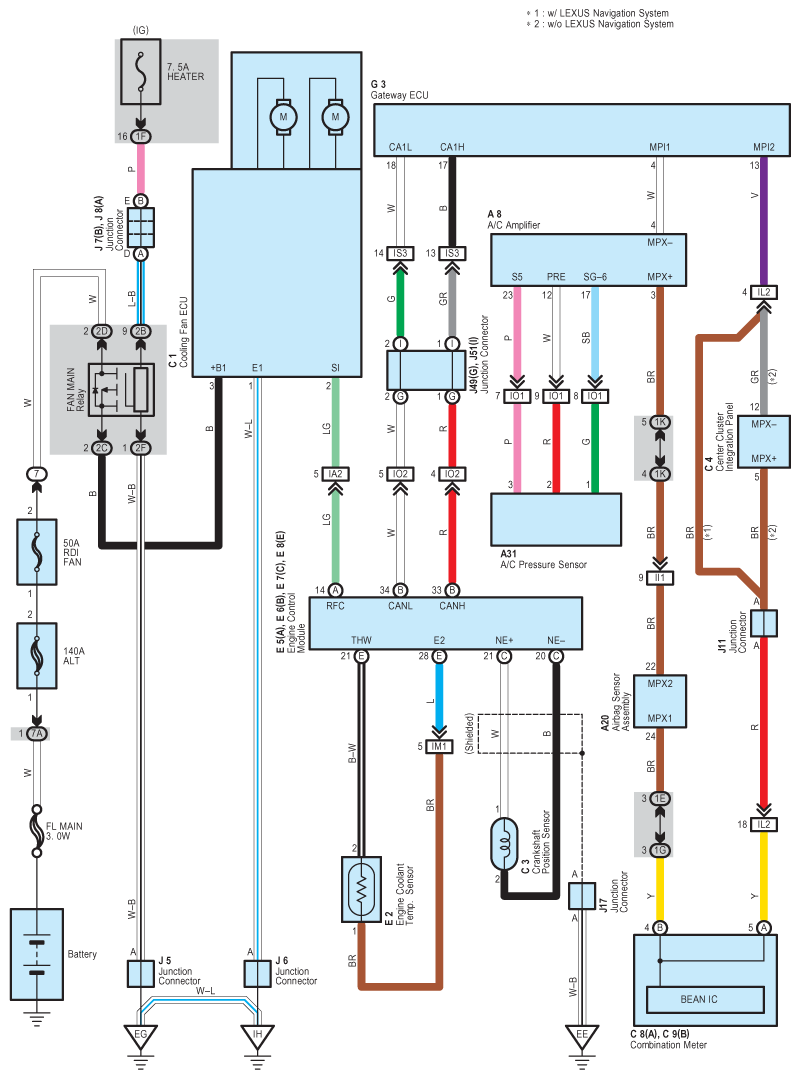

Fig 1: Cooling Fan - Circuit Diagram

G07614638

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
