Front Wiper and Washer with Auto Wiper System: Notes

WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

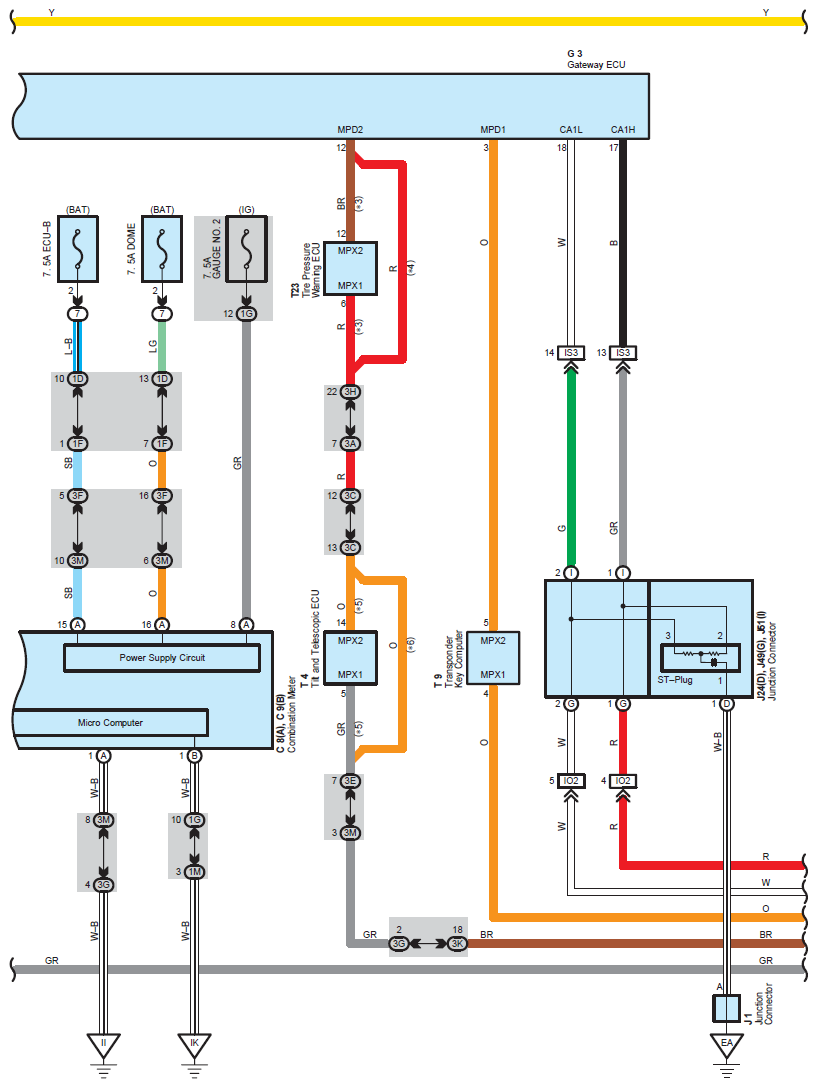

Fig 1: Front Wiper And Washer With Auto Wiper System - Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

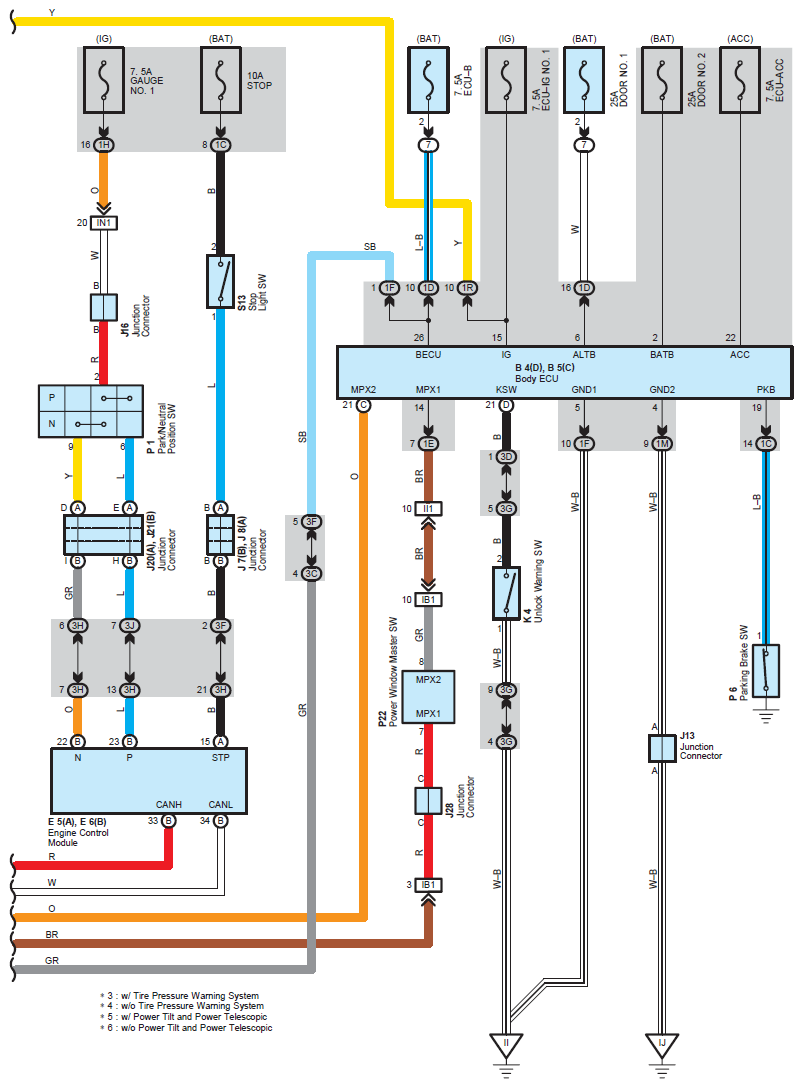

Fig 2: Front Wiper And Washer With Auto Wiper System - Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

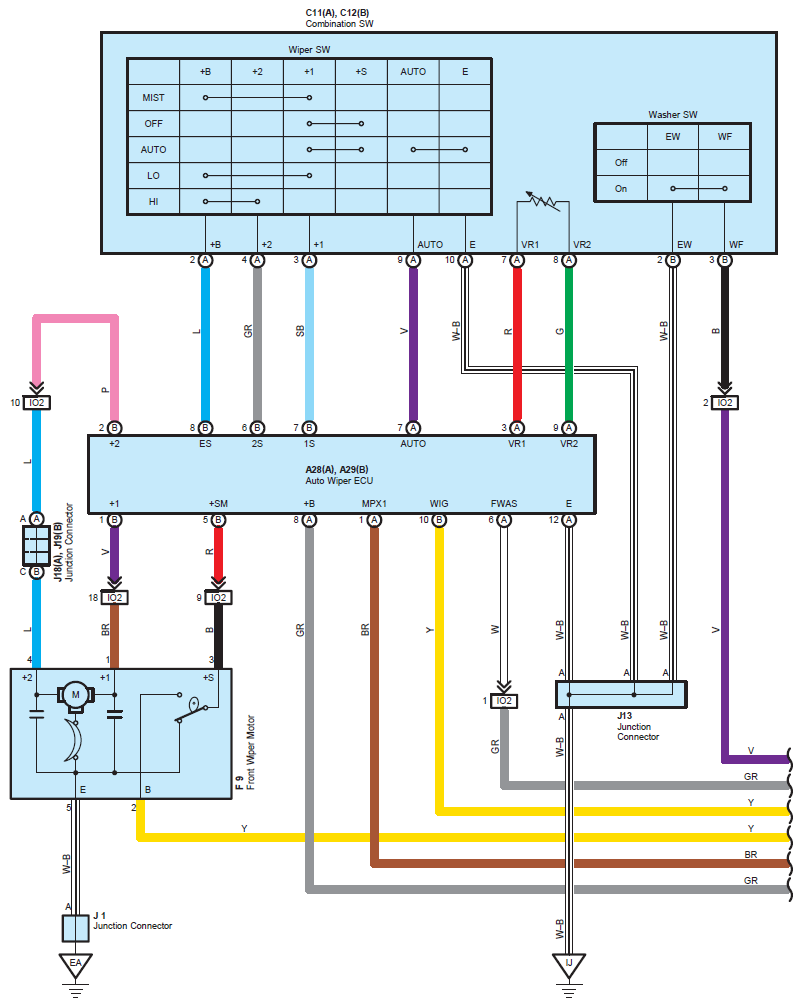

Fig 3: Front Wiper And Washer With Auto Wiper System - Circuit Diagram (3 Of 4)

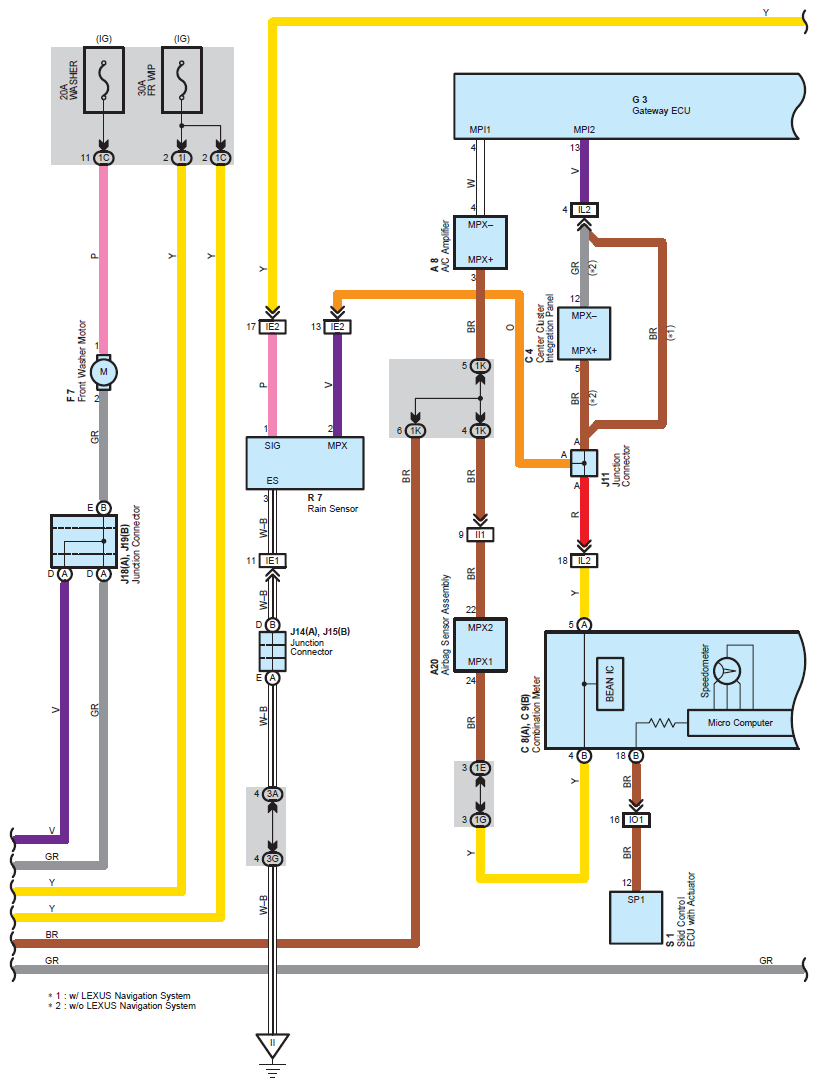

Fig 4: Front Wiper And Washer With Auto Wiper System - Circuit Diagram (4 Of 4)
