Power Seat for Driver's Seat without Memory: Notes
WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

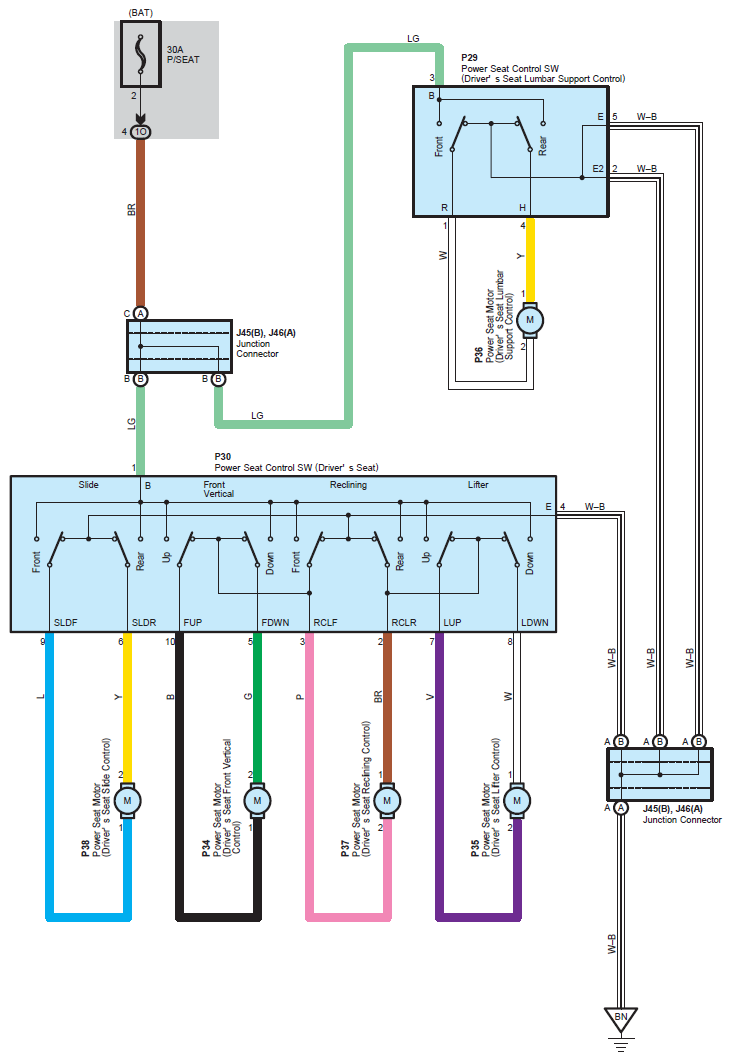

Fig 1: Power Seat For Driver's Seat Without Memory - Circuit Diagram
