Windshield Glass: Installation: Installation

  1. INSTALL WINDSHIELD GLASS NO. 1 STOPPER
    1. Install 2 new stoppers to the vehicle body, as shown in the illustration.

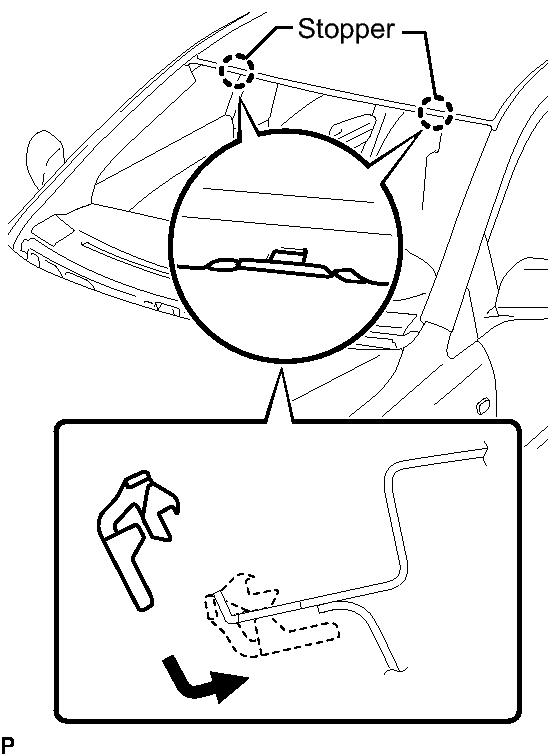

      Fig 1: Identifying Windshield Glass No. 1 Stoppers
      GTY120021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL WINDSHIELD GLASS NO. 2 STOPPER
    1. Coat the installation part of the stopper with Primer G.
      Fig 2: Identifying Windshield Glass No. 2 Stopper
      GTY120022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.
      • Do not apply too much primer.
    2. Install 2 new windshield glass stoppers onto the glass, as shown in the illustration.

      Standard dimension

      Area Dimension
      A 40.0 mm (1.575 in.)
      B 9.0 mm (0.354 in.)
      C 15.0 mm (0.591 in.)
  3. INSTALL WINDSHIELD GLASS RETAINER
    1. Install a new windshield glass retainer to the glass, as shown in the illustration.
      Fig 3: Identifying Windshield Glass Retainer
      GTY120023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL WINDOW GLASS ADHESIVE DAM
    1. Coat the installation part of the dam with Primer G.
      Fig 4: Identifying Window Glass Adhesive Dam
      GTY120024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not apply too much primer.
    2. Install a new dam, applying double-sided tape all the way around the glass except where the dam is installed, as shown in the illustration.

      Standard dimension

      Area Dimension
      a 9.5 mm (0.374 in.)
      b 50.0 mm (1.969 in.)
      c 8.0 mm (0.315 in.)
  5. INSTALL WINDOW GLASS NO. 2 ADHESIVE DAM
  6. INSTALL WINDSHIELD GLASS
    1. Clean and shape the contact surface of the vehicle body.
      Fig 5: Identifying Area For Applying Adhesive
      GTY120025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a knife, cut away any rough adhesive on the contact surface of the vehicle body to ensure the appropriate surface shape.
        NOTE:

        Be careful not to damage the vehicle body.

        HINT:

        Leave as much adhesive on the vehicle body as possible.

      2. Clean the contact surface of the vehicle body with a piece of shop rag saturated with cleaner.

        HINT:

        Even if all the adhesive has been removed, clean the vehicle body.

    2. Position the glass.
      Fig 6: Identifying Reference Marks Between Glass & Vehicle Body
      GTY133326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a suction cup, place the glass in the correct position.
      2. Check that the whole contact surface of the glass rim is perfectly even.
      3. Place reference marks between the glass and vehicle body.
        NOTE:

        Check that the stoppers are attached to the vehicle body correctly.

        HINT:

        When reusing the glass, check and correct the reference mark positions.

      4. Remove the glass.
    3. Using a brush, coat the exposed part of the vehicle body on the vehicle side with Primer M.

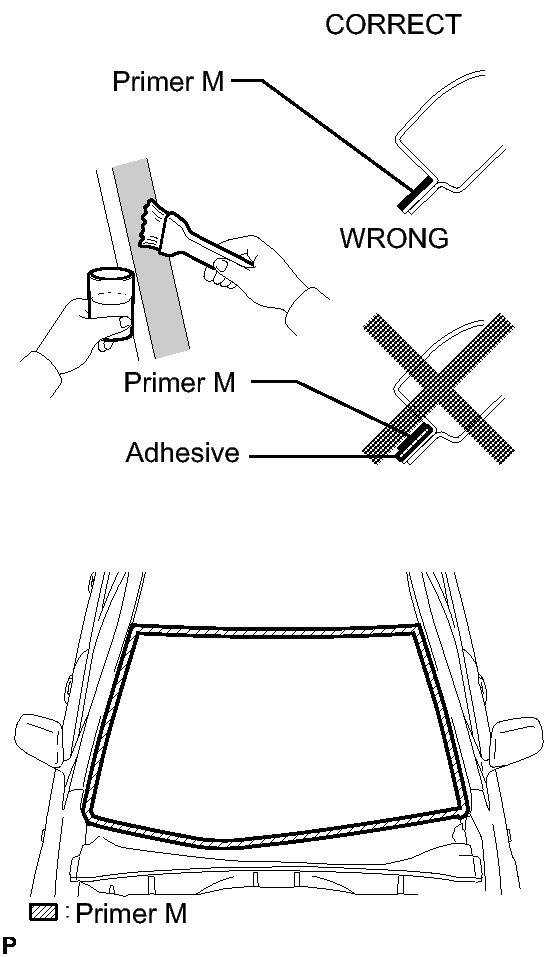

      Fig 7: Identifying Correct & Incorrect Procedure For Applying Primer On Windshield Glass
      GTY138281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not coat the adhesive with Primer M.
      • Do not keep any of the opened Primer M for later use.
    4. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.
      Fig 8: Identifying Contact Surface With Primer G
      GTY120027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean shop rag before it dries.

    5. Apply adhesive (Adhesive: TOYOTA genuine windshield glass adhesive or equivalent).

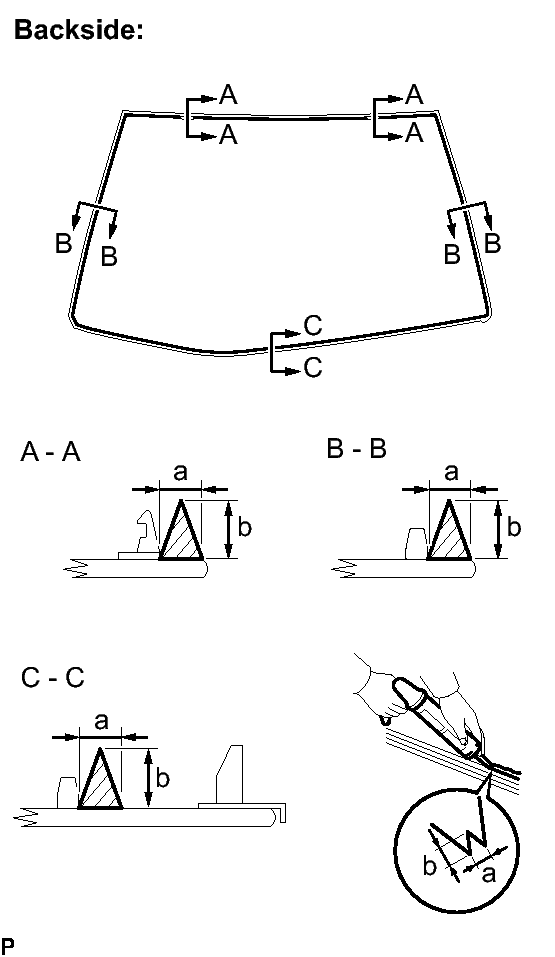

      Fig 9: Coating Glass With Adhesive
      GTY120028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Cut off the tip of the cartridge nozzle, as shown in the illustration.

        HINT:

        After cutting off the tip, use all adhesive within the time described in the table below.

        Tack-free time

        Temperature Tack-free Time
        35°C (95°F) 15 minutes
        20°C (68°F) 1 hour 40 minutes
        5°C (41°F) 8 hours
      2. Load the sealer gun with the cartridge.
      3. Coat the glass with adhesive, as shown in the illustration.

        Standard dimension

        Area Dimension
        a 8.0 mm (0.315 in.)
        b 12.0 mm (0.472 in.)
    6. Install the glass.
      Fig 10: Identifying Glass Installation Position
      GTY141217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a suction cup, position the glass so that the reference marks are aligned, and press it in gently along the rim.
        NOTE:
        • Allow the primer coating to dry for 3 minutes or more.
        • Check that the stoppers are attached to the vehicle body correctly.
        • Check the clearance between the vehicle body and glass.
      2. Lightly press the front surface of the glass to ensure a close fit.
      3. Using a scraper, remove any excess or protruding adhesive.
        Fig 11: Identifying Excess Or Protruding Adhesive
        GTY144462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        Take care not to drive the vehicle for the time described in the table below.

        Minimum time

        Temperature Minimum time prior to driving vehicle
        35°C (95°F) 1 hour 30 minutes
        20°C (68°F) 5 hours
        5°C (41°F) 24 hours

        HINT:

        Apply adhesive onto the glass rim.

  7. INSTALL WINDSHIELD MOLDING OUTSIDE
    1. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not coat the adhesive with Primer G.
      • Do not keep any of the opened Primer G for later use.
    2. Install the windshield molding.
  8. CHECK FOR LEAKS AND REPAIR
    1. Conduct a leak test after the adhesive has completely hardened.
    2. Seal any leaks with auto glass sealer.
  9. INSTALL RAIN SENSOR (w/ Auto Wiper)  . Refer to INSTALLATION - Step 1
  10. INSTALL ROOF HEADLINING ASSEMBLY  . Refer to INSTALLATION - Step 6
  11. INSTALL ASSIST GRIP SUB-ASSEMBLY
  12. INSTALL VISOR HOLDER
  13. INSTALL VISOR ASSEMBLY LH
  14. INSTALL VISOR ASSEMBLY RH
  15. INSTALL MAP LIGHT ASSEMBLY
  16. INSTALL FRONT PILLAR GARNISH LH
  17. INSTALL FRONT PILLAR GARNISH RH
  18. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  19. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  20. INSTALL INNER REAR VIEW MIRROR ASSEMBLY  . Refer to INSTALLATION - Step 1
  21. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
  22. INSTALL FRONT FENDER TO COWL SIDE SEAL LH
  23. INSTALL FRONT FENDER TO COWL SIDE SEAL RH
  24. INSTALL FRONT WIPER ARM LH  . Refer to INSTALLATION - Step 4
  25. INSTALL FRONT WIPER ARM RH  . Refer to INSTALLATION - Step 5
  26. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  27. PERFORM INITIALIZATION
    NOTE:

    Some systems need initialization when disconnecting the cable from the negative (-) battery terminal. Refer to INITIALIZATION .
