Headlight Beam Level Control: Notes

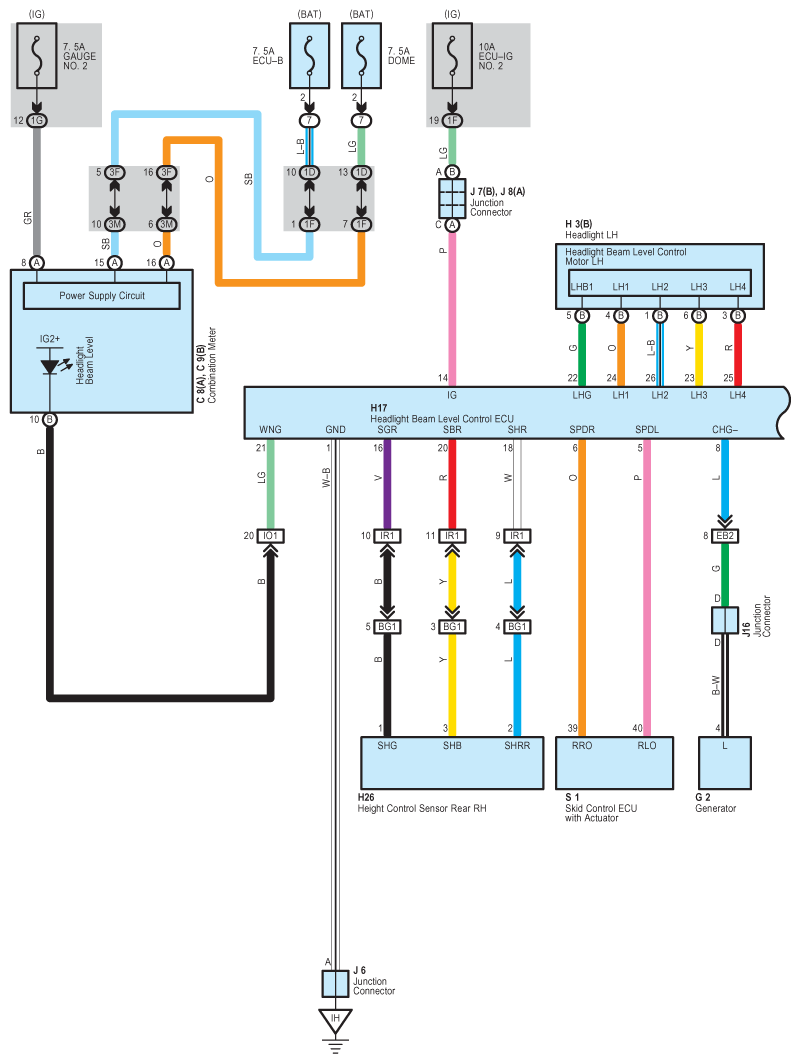

Fig 1: Headlight Beam Level Control - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

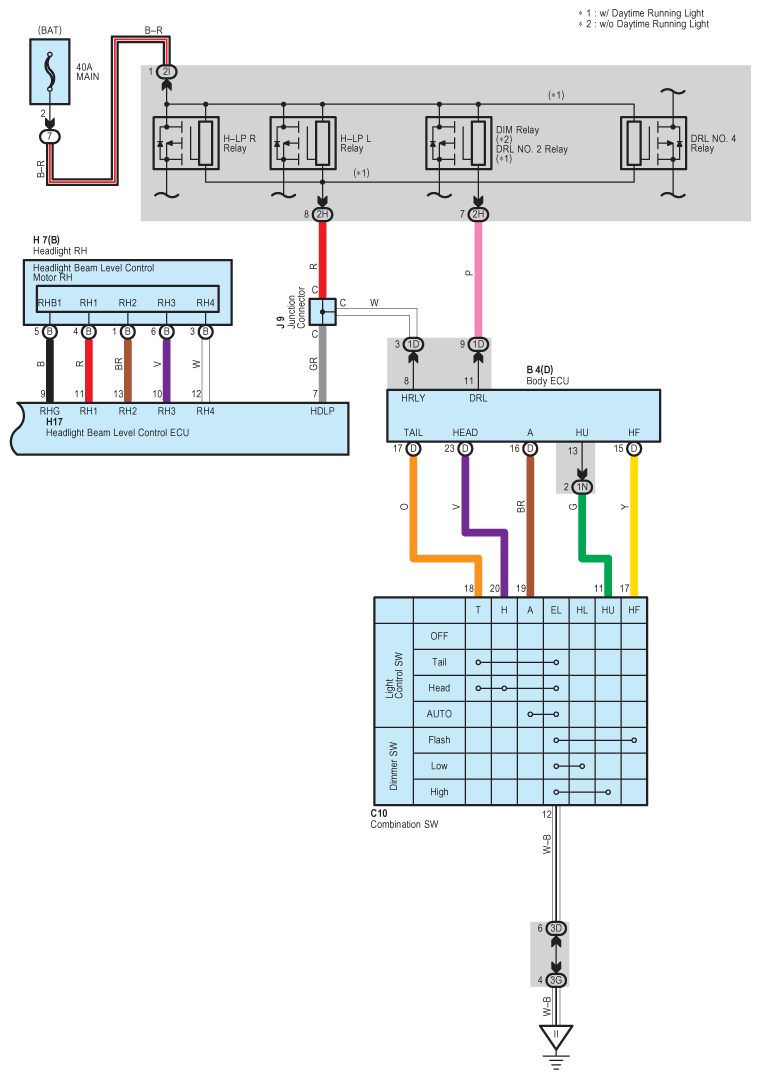

Fig 2: Headlight Beam Level Control - Circuit Diagram (2 Of 2)
