Camshaft Timing Oil Control Valve Assembly: Components: Illustration

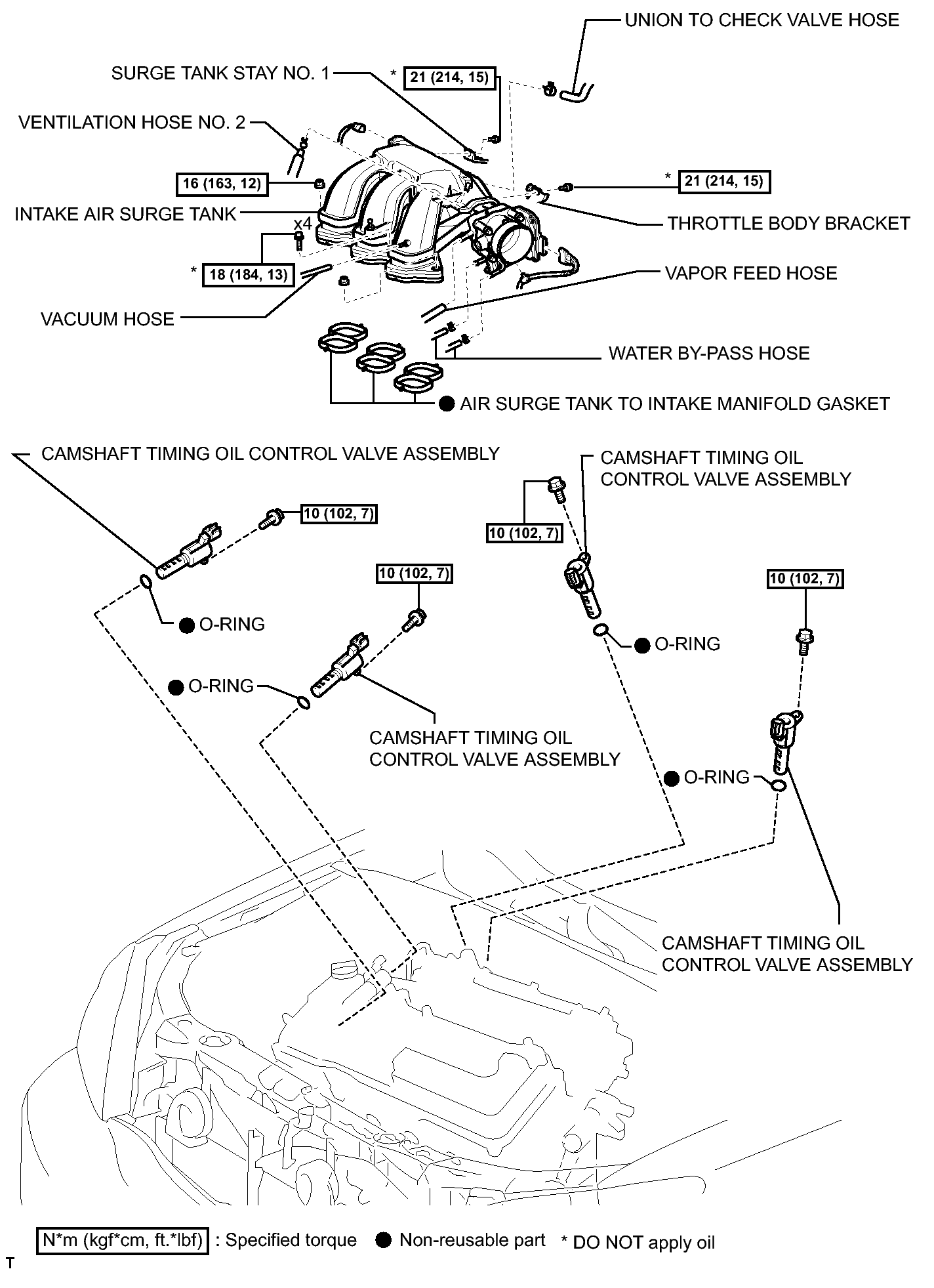

Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
