Power Door Lock System (Service Information)
›
Door Control Transmitter
›
Components
›
Illustration
Door Control Transmitter: Components: Illustration

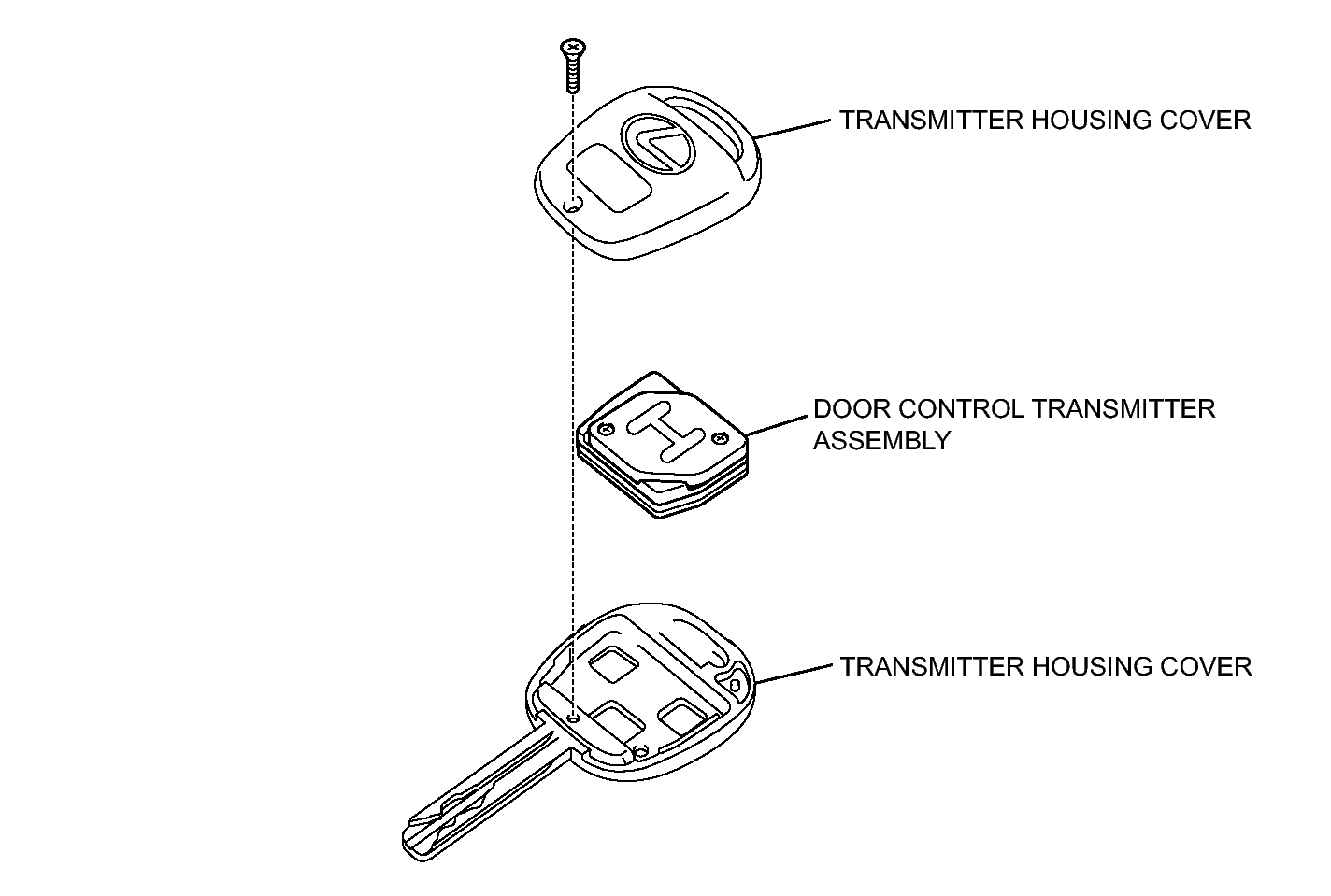

Fig 1: Identifying Door Control Transmitter Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
