Parts Location: Illustration

Fig 1: Identifying Front Power Seat Control System Replacement Components (1 Of 5)
GTY122414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

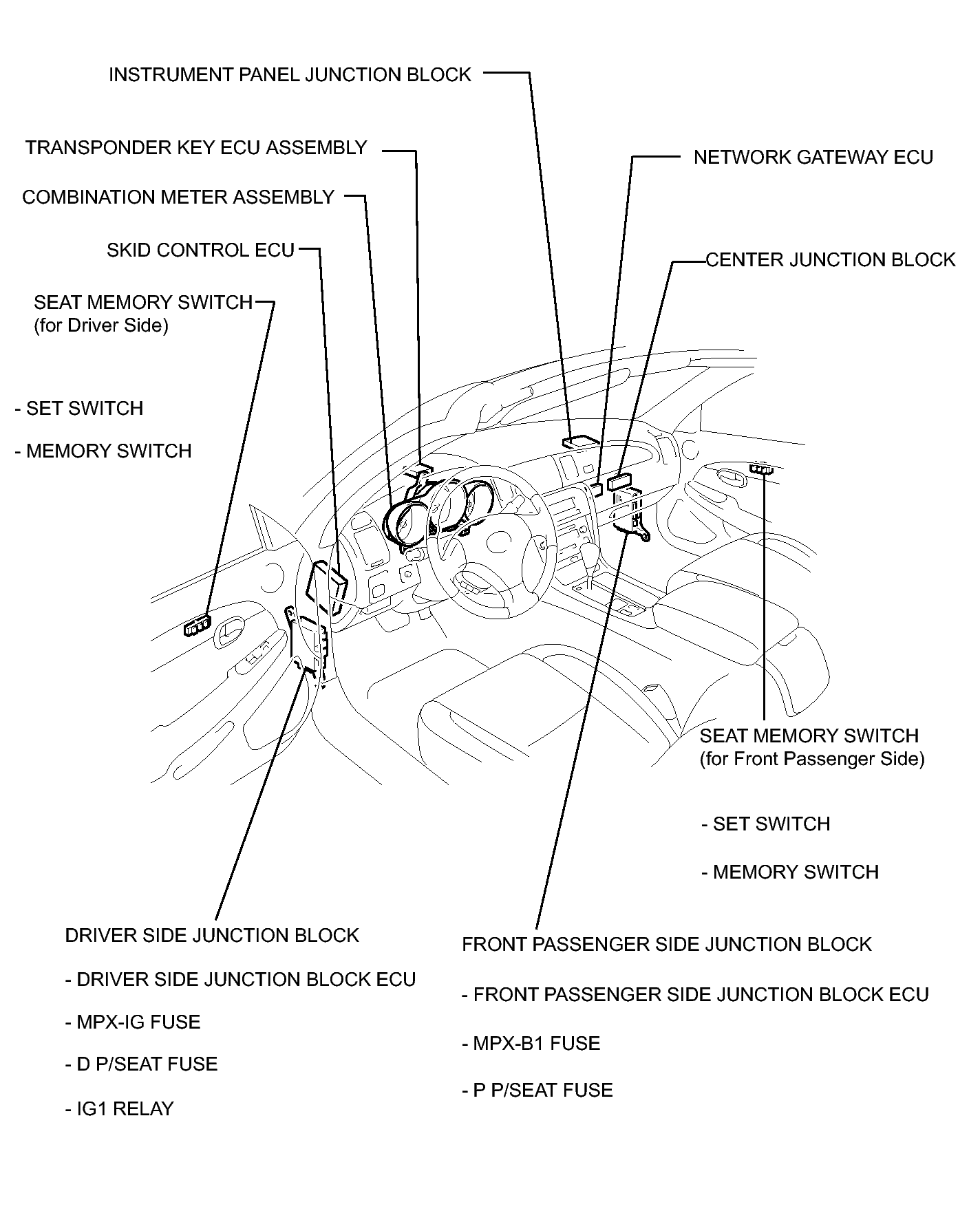

Fig 1: Identifying Front Power Seat Control System Replacement Components (2 Of 5)
GTY124235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


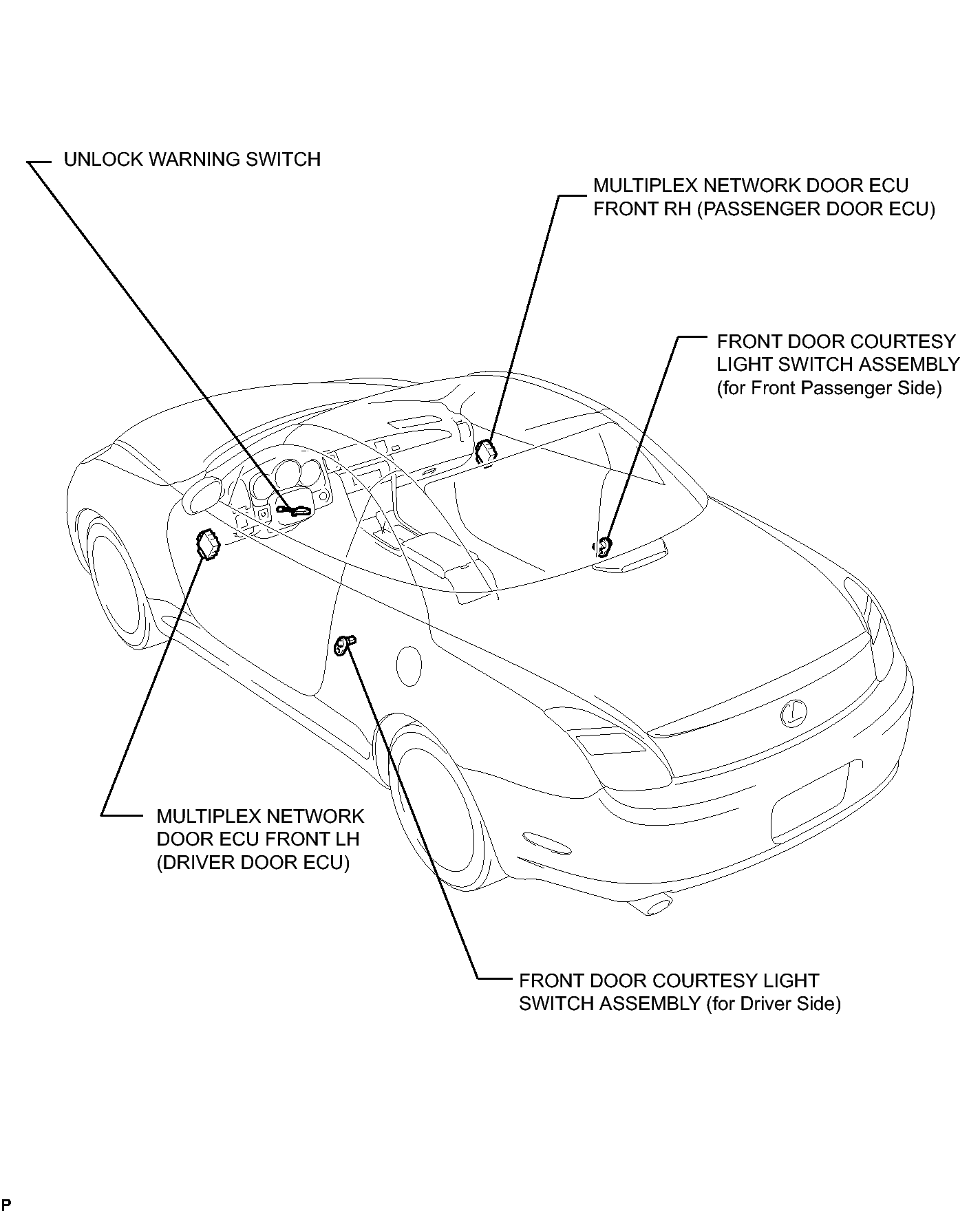

Fig 1: Identifying Front Power Seat Control System Replacement Components (3 Of 5)
GTY123328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

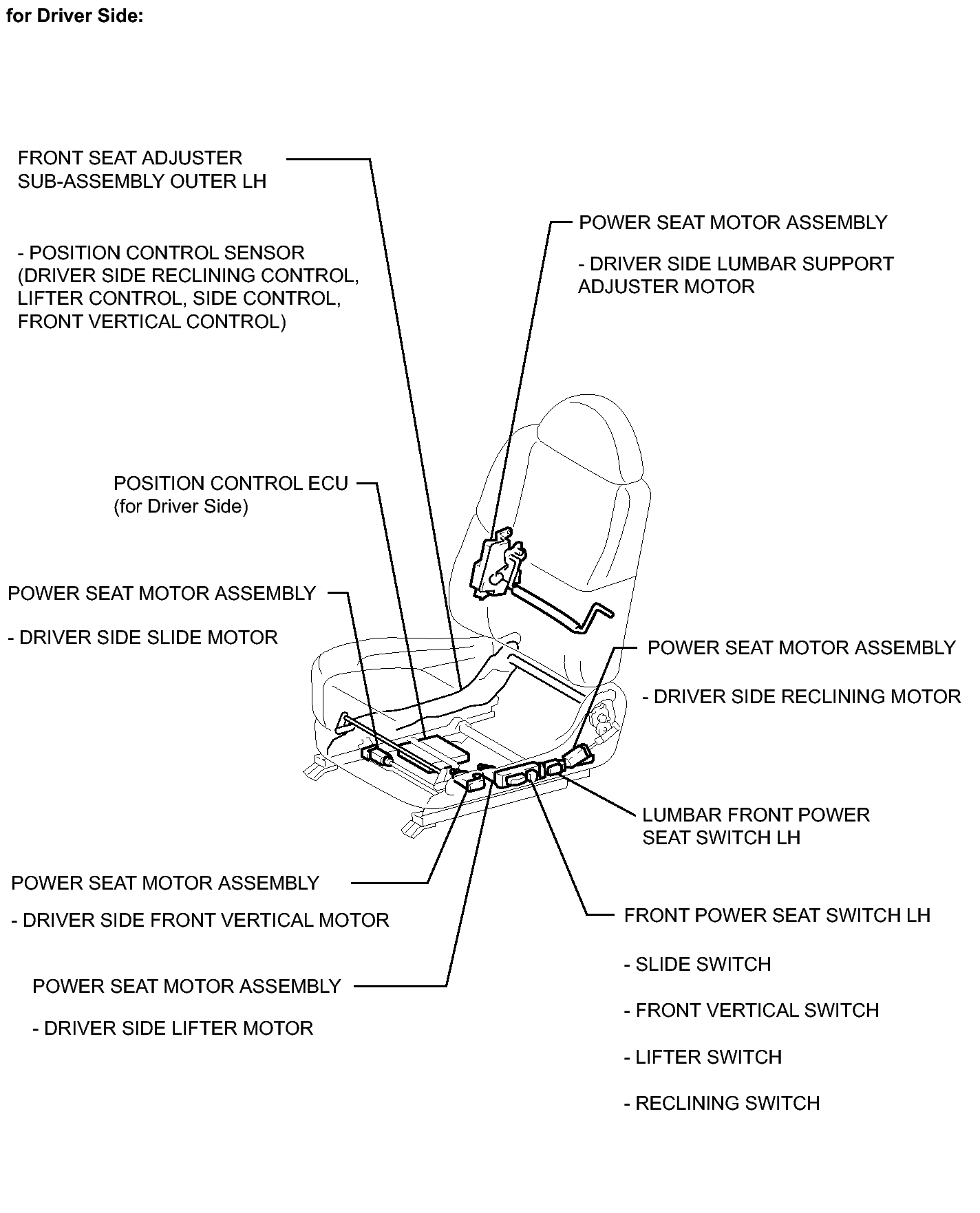

Fig 1: Identifying Front Power Seat Control System Replacement Components - Driver Side (4 Of 5)
GTY121040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

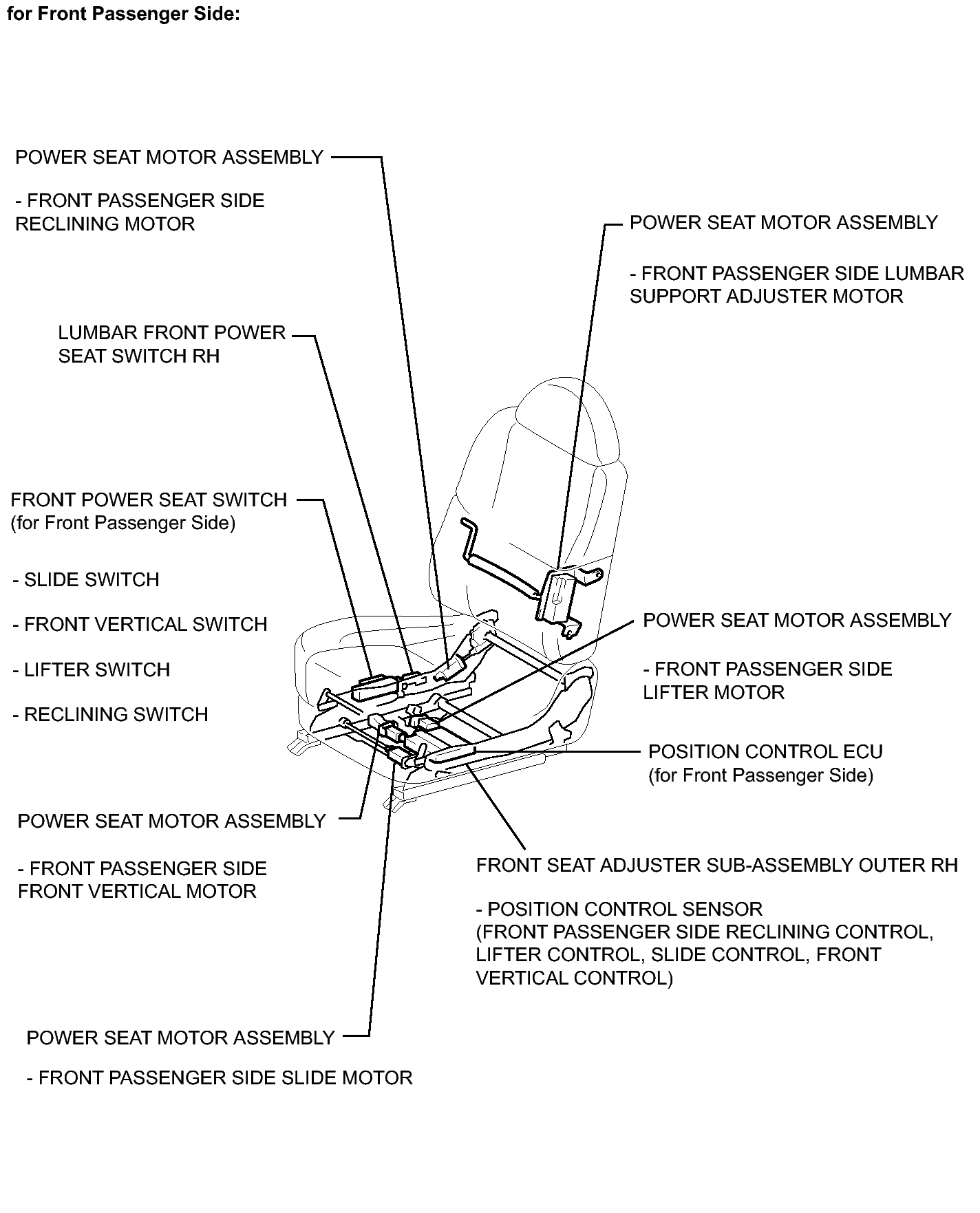

Fig 1: Identifying Front Power Seat Control System Replacement Components - Front Passenger Side (4 Of 5)
GTY137889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
