Power Window Control System (Diagnostic Codes & Symptom Tests)
›
Power Window Control System
›
Remote Up / Down Function does not Operate
›
Wiring Diagram
Remote Up / Down Function does not Operate: Wiring Diagram

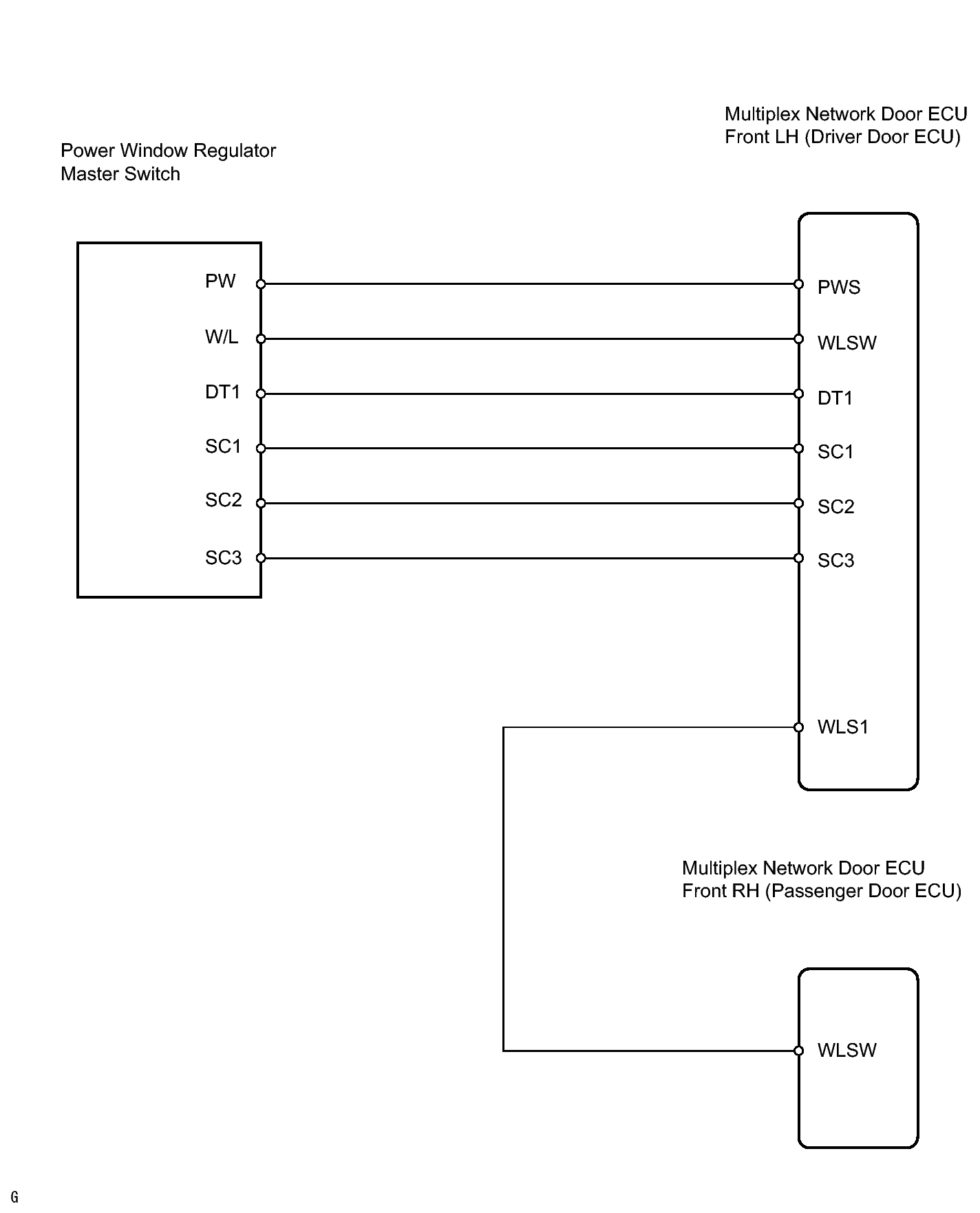

Fig 1: Remote Up/Down Function Does Not Operation - Wiring Diagram
