Parts Location: Illustration

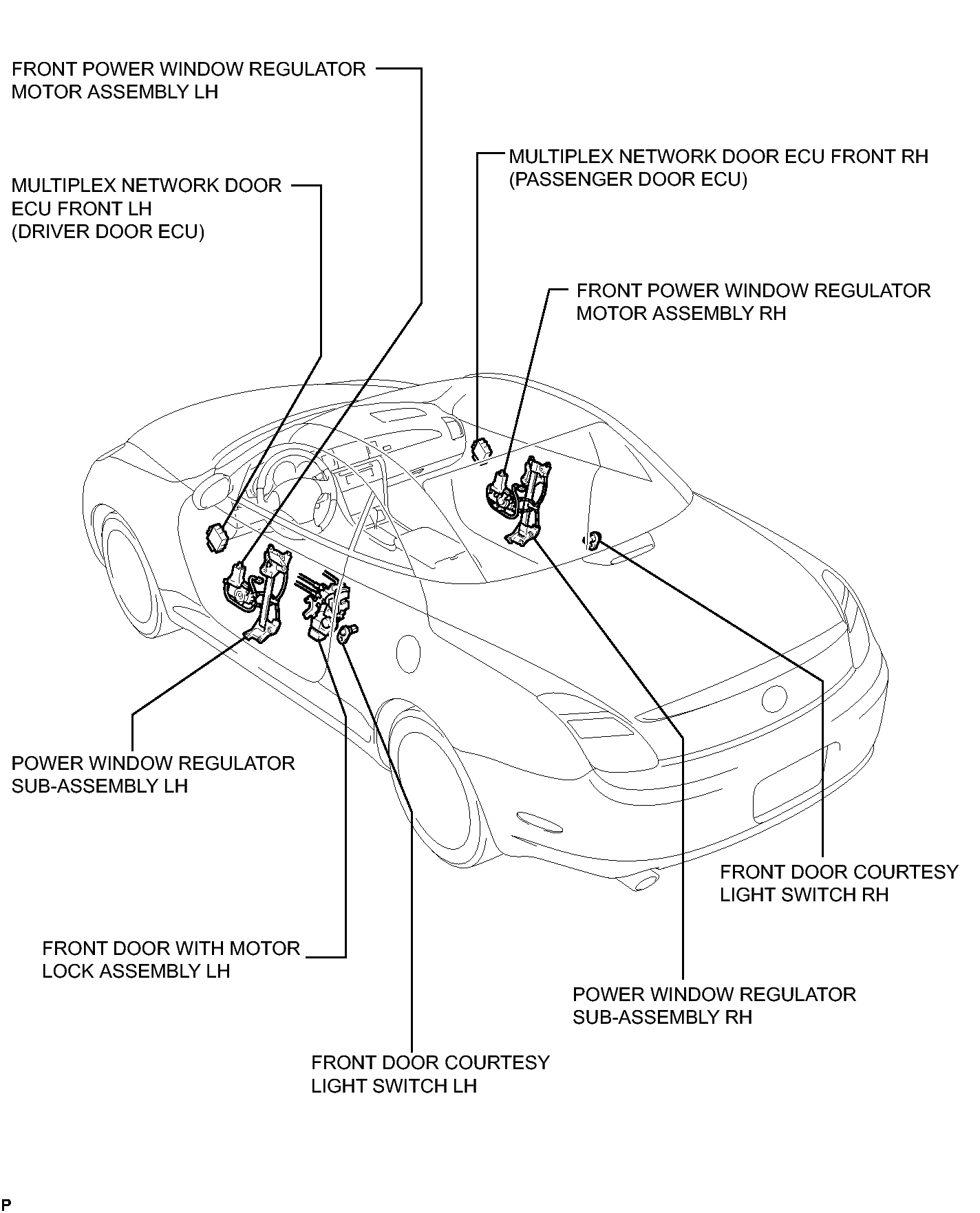

Fig 1: Identifying Power Window Control System Part Location (1 Of 3)
GTY143876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

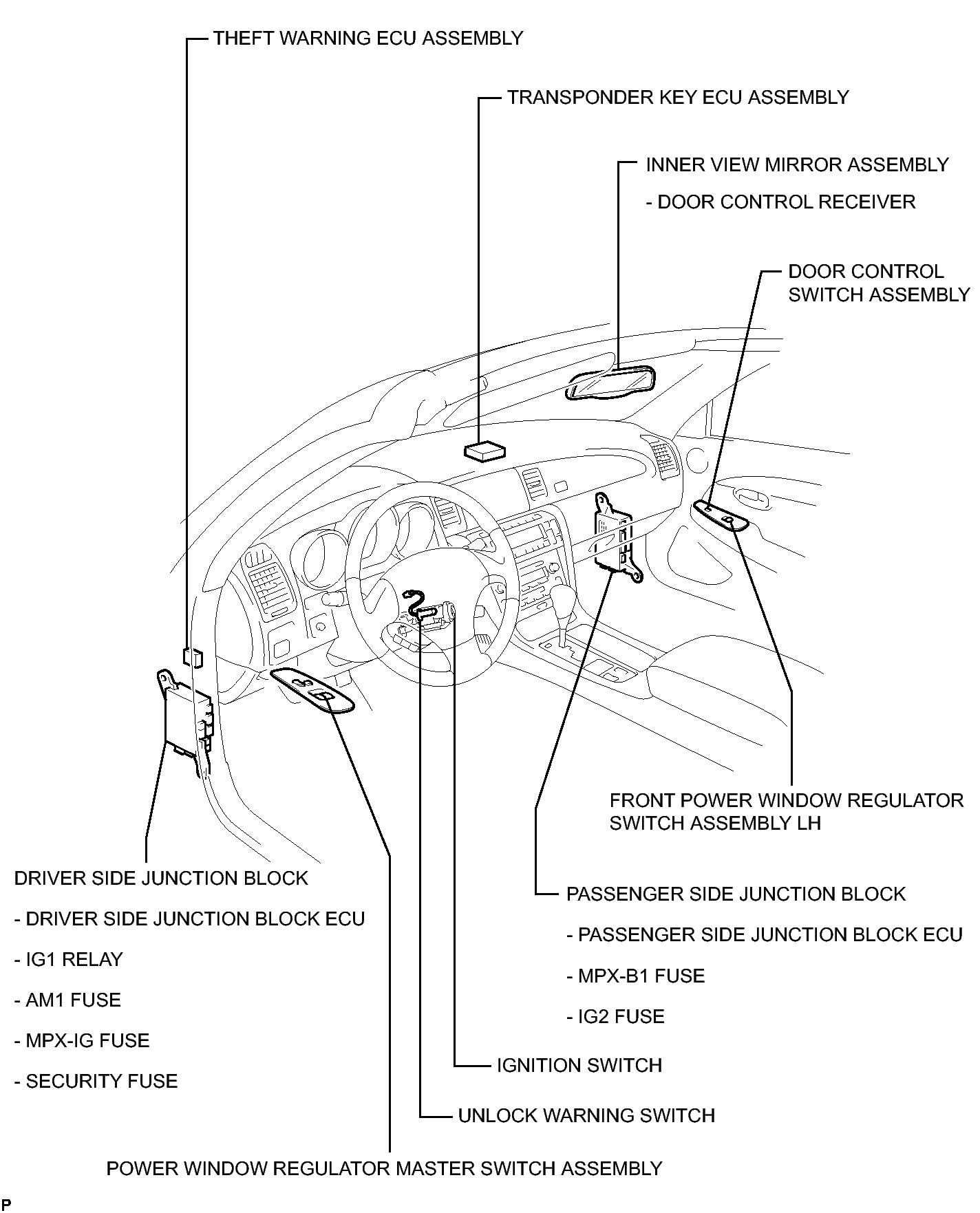

Fig 1: Identifying Power Window Control System Part Location (2 Of 3)
GTY134297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

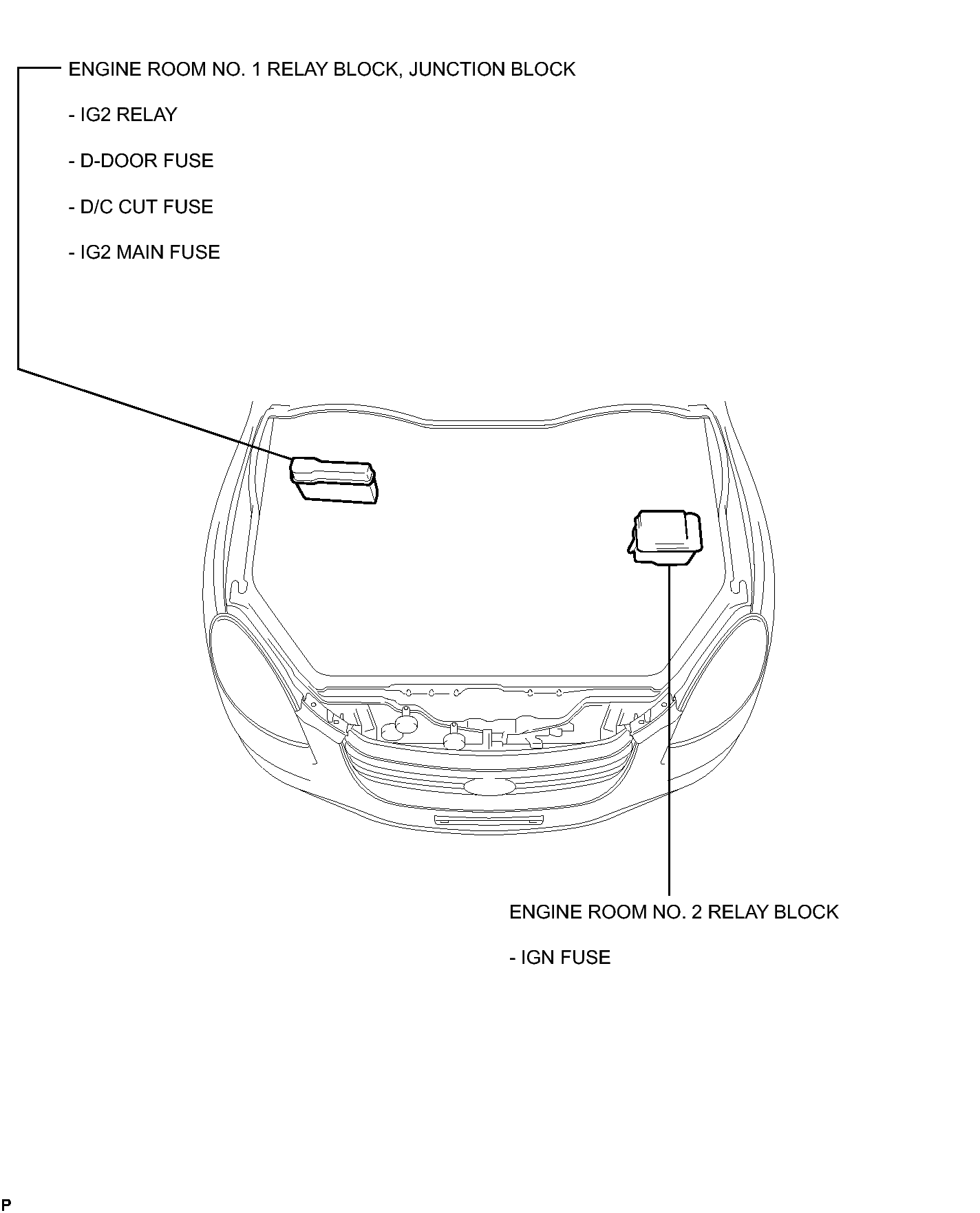

Fig 1: Identifying Power Window Control System Part Location (3 Of 3)
GTY155818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
