Parts Location: Illustration

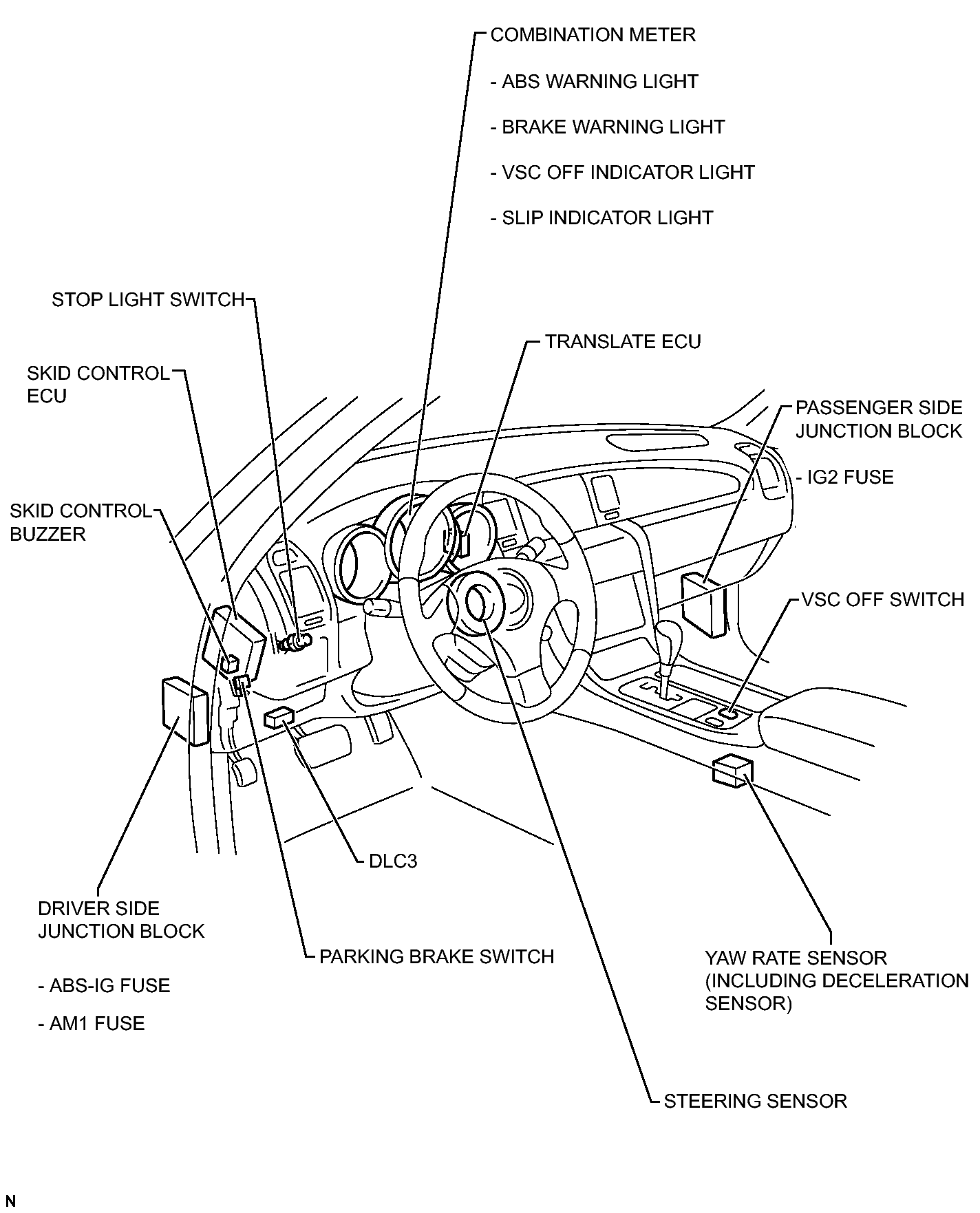

Fig 1: Identifying Vehicle Stability Control System Parts Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

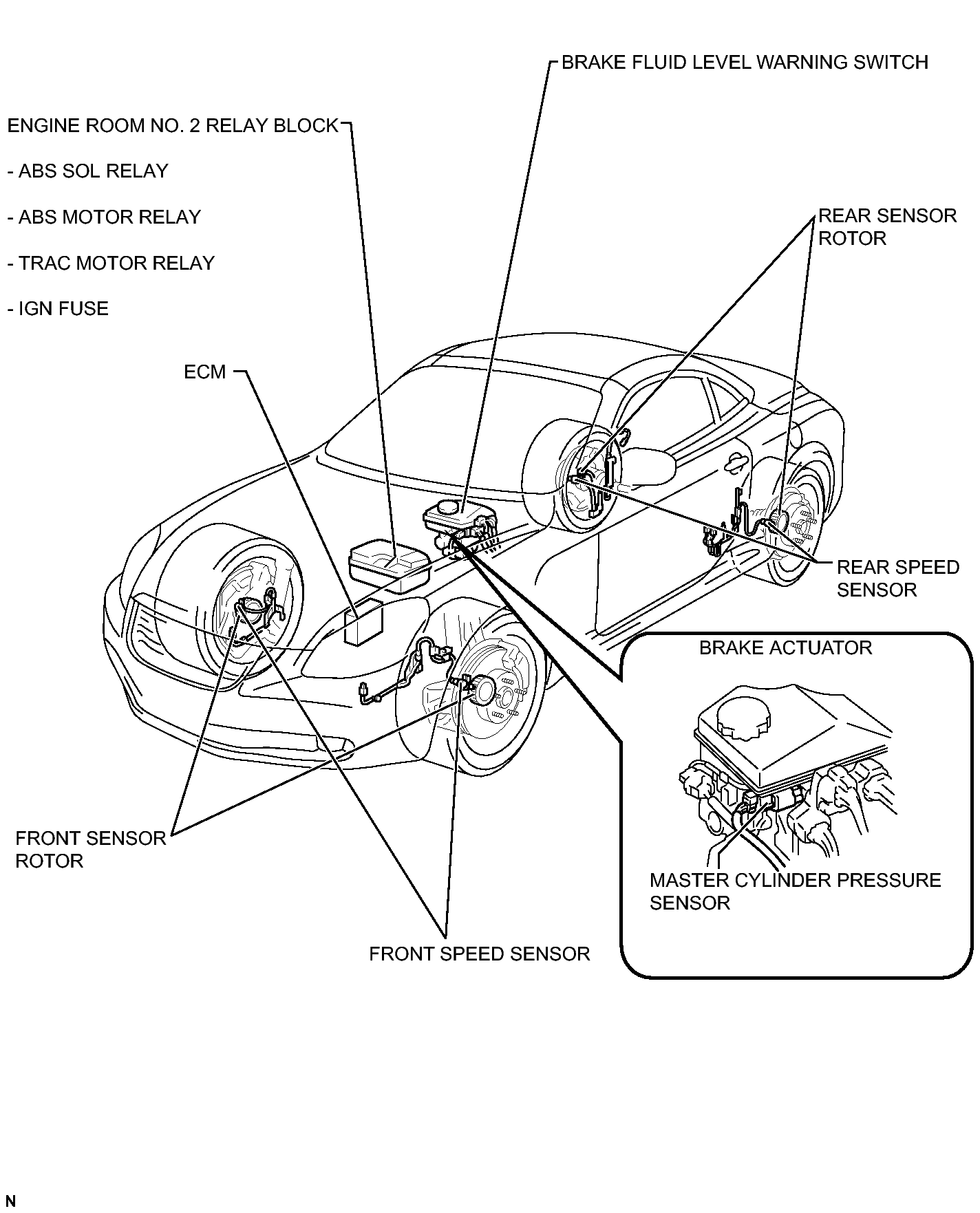

Fig 1: Identifying Vehicle Stability Control System Parts Location (2 Of 2)
