Rear Window Defogger: Notes

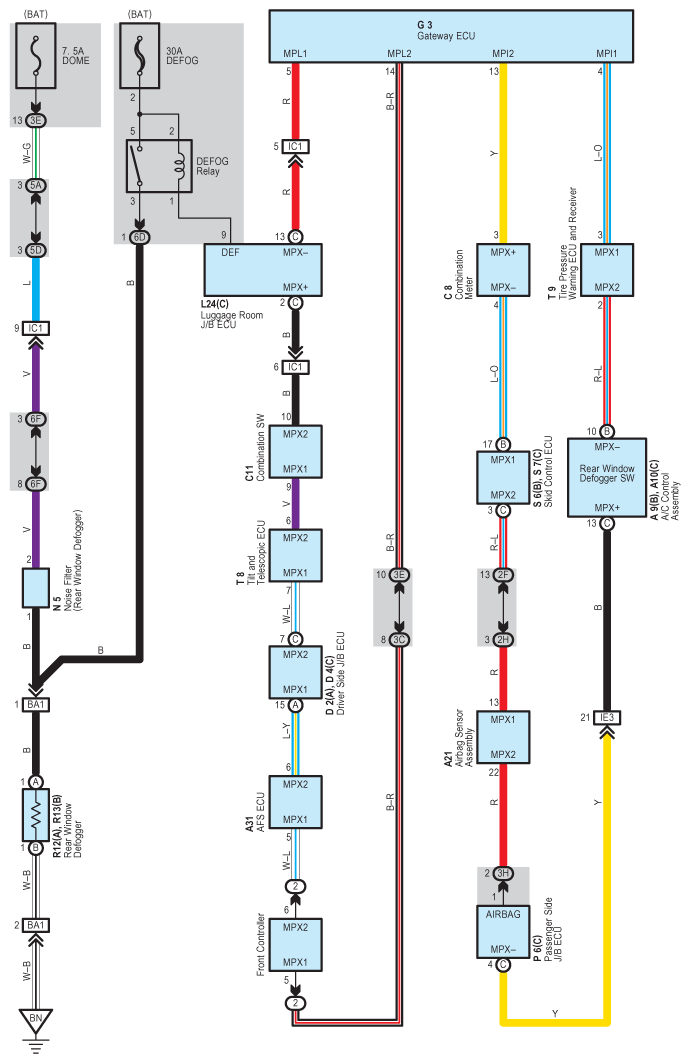

Fig 1: Rear Window Defogger - Circuit Diagram

G07607813

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
