Floor Shift Assembly: Components: Illustration

Fig 1: Identifying Floor Shift Assembly Replacement Components (1 Of 3)
GTY112727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

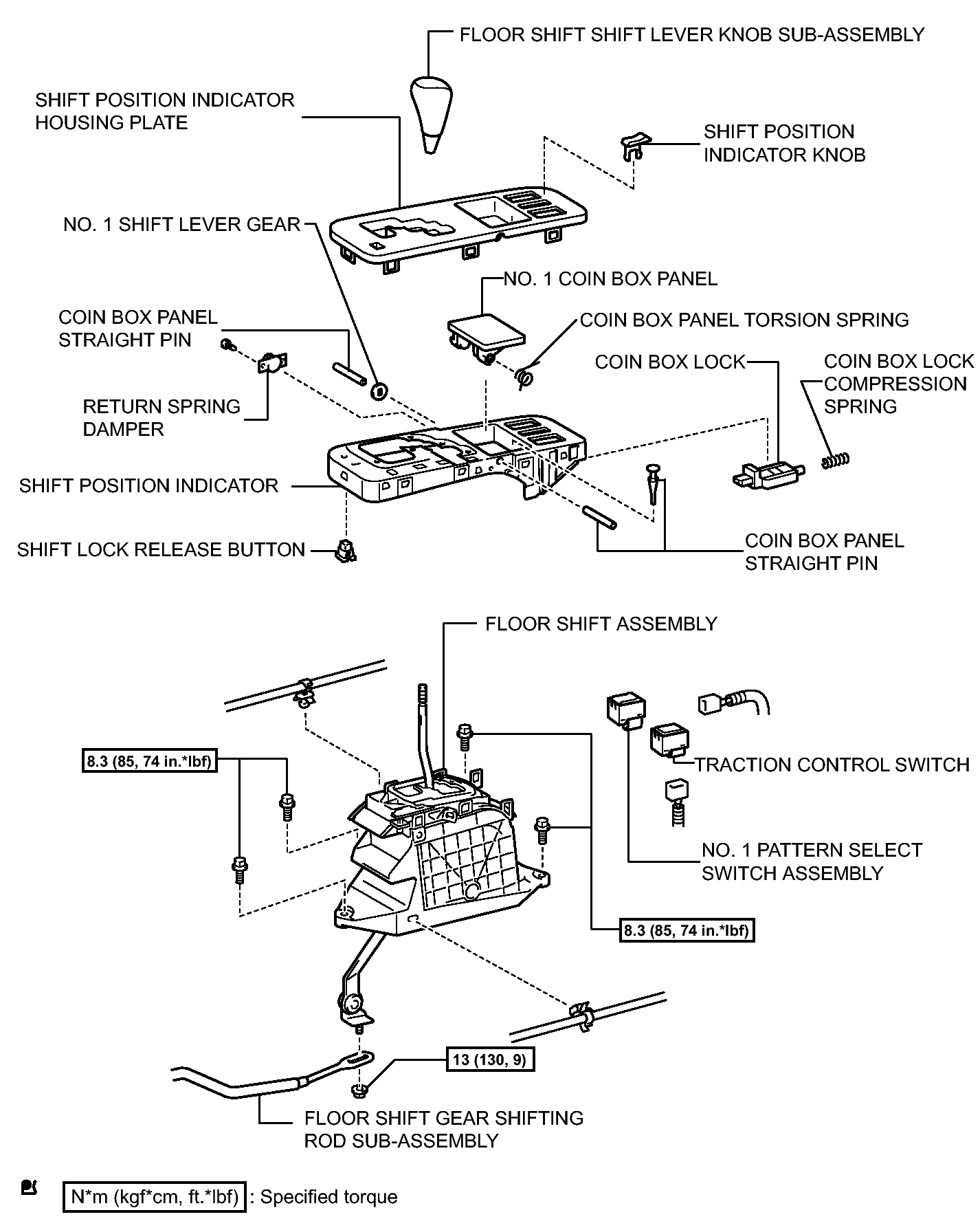

Fig 1: Identifying Floor Shift Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY112713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

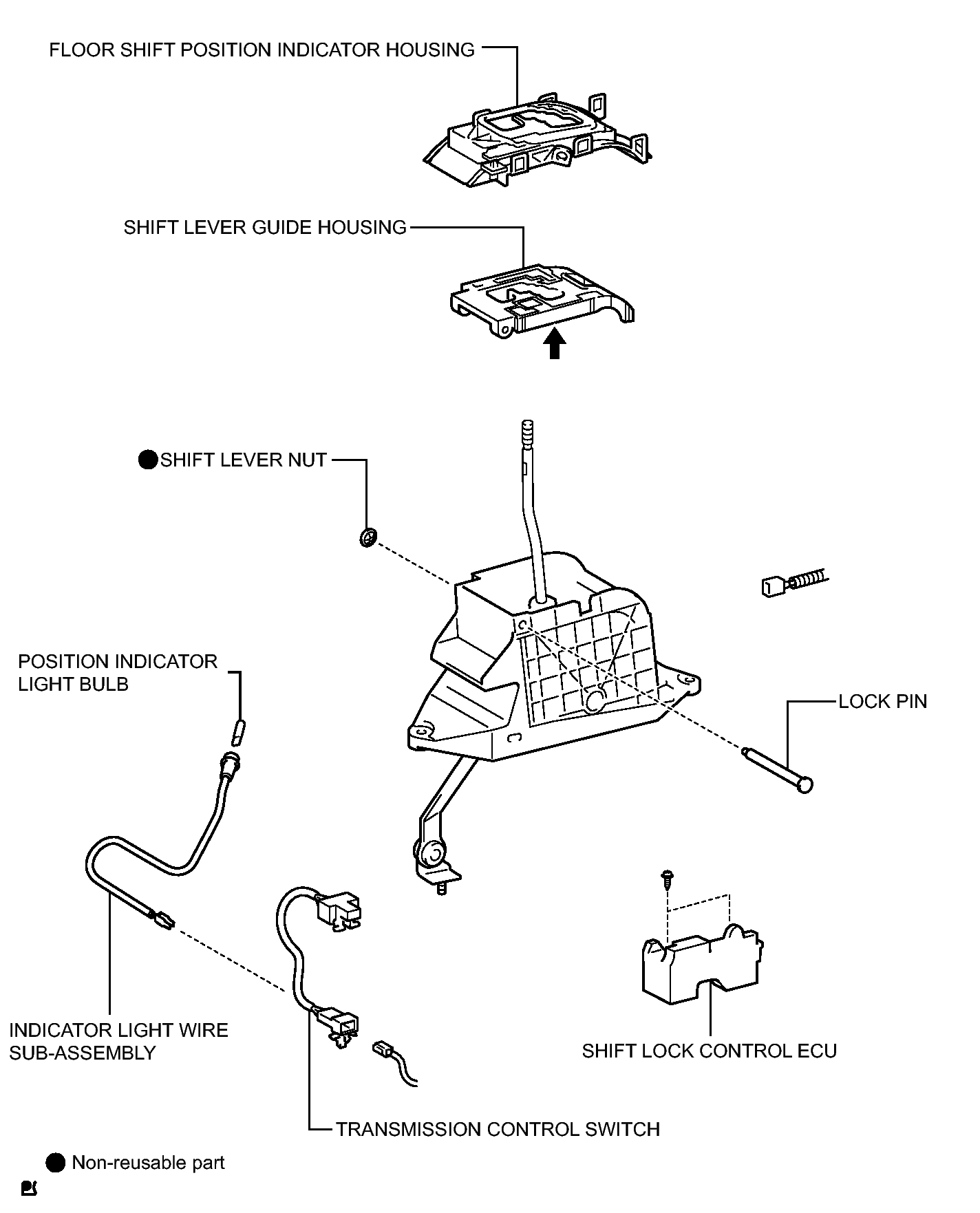

Fig 1: Identifying Floor Shift Assembly Replacement Components (3 Of 3)
GTY112714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
