Active Control Engine Mount System (Diagnostic Codes & Circuit Tests)
›
Active Control Engine Mount System
›
ECU Power Source Circuit
›
Wiring Diagram

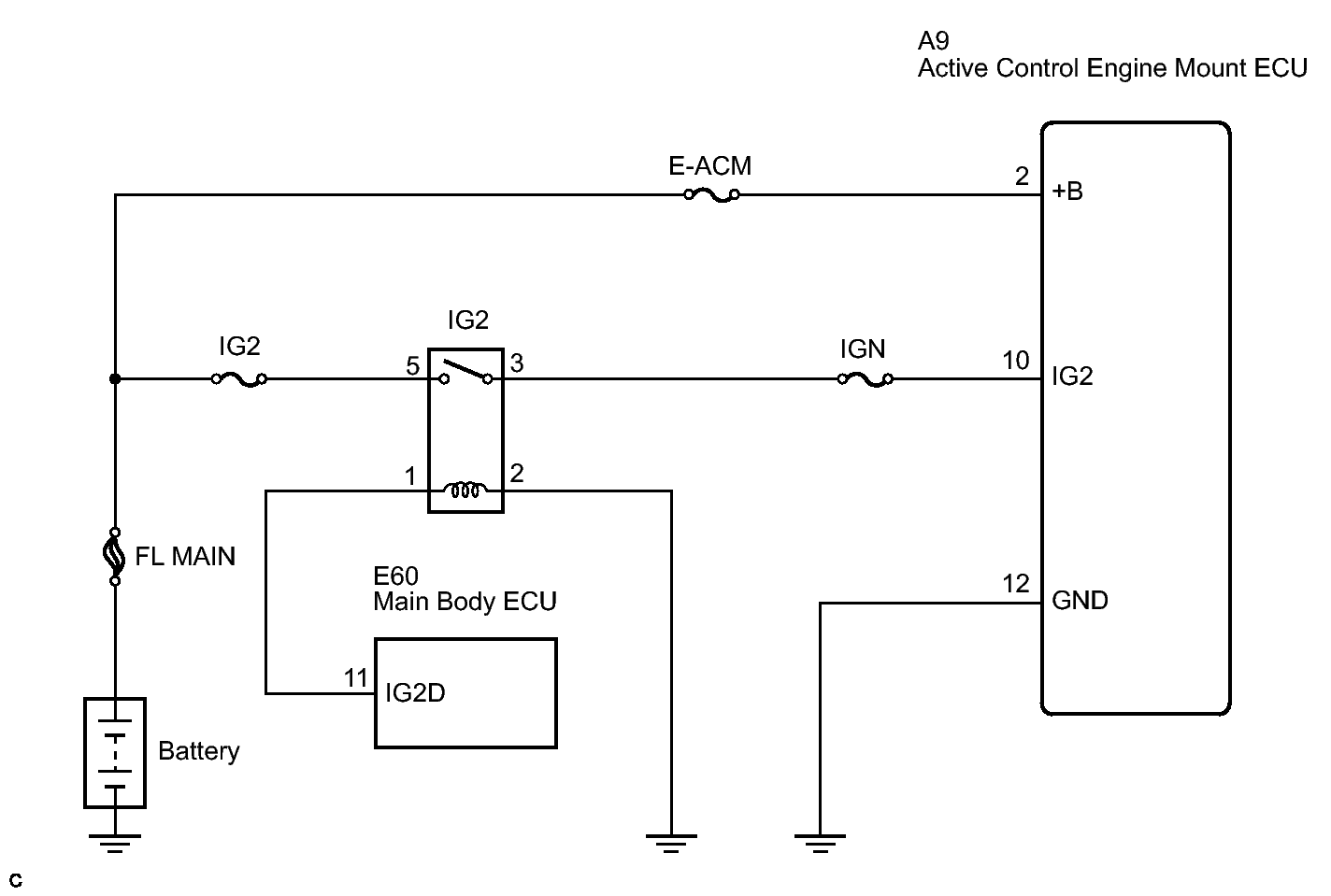

ECU Power Source Circuit: Wiring Diagram
Fig 1: Battery High Voltage -- Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
