Parts Location: Illustration

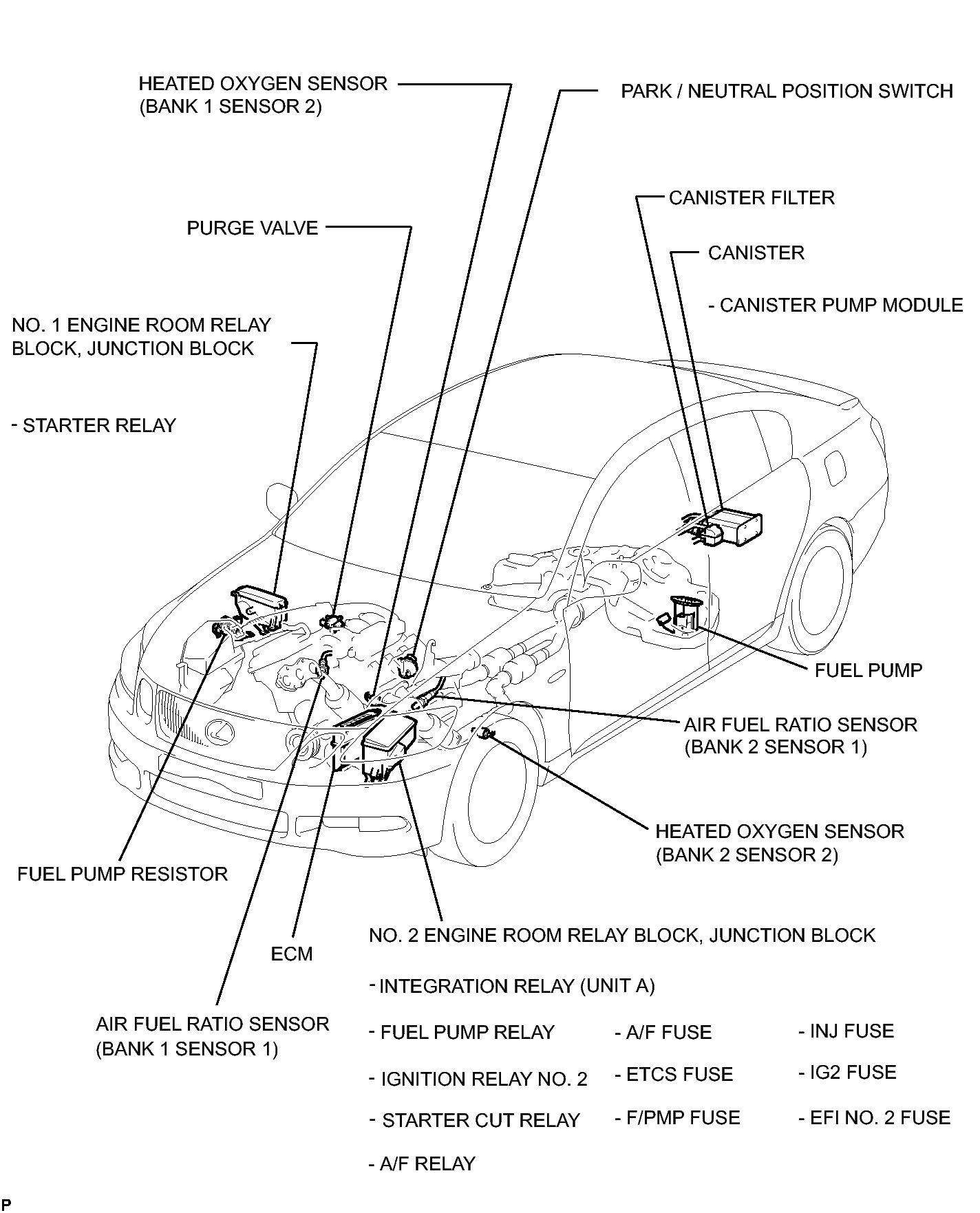

Fig 1: Identifying SFI System Components (1 Of 4)
GTY105148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

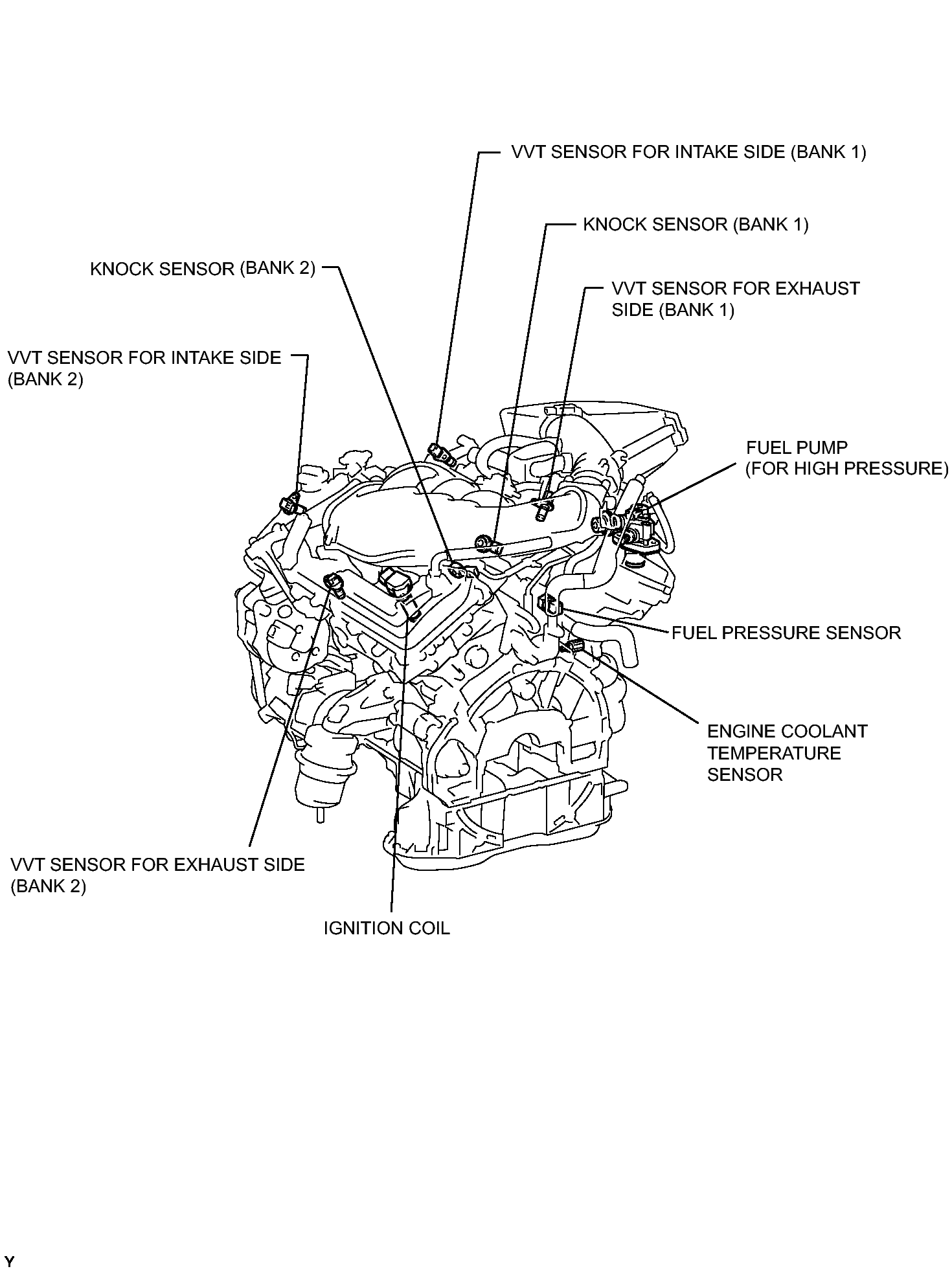

Fig 1: Identifying SFI System Components (2 Of 4)
GTY266193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

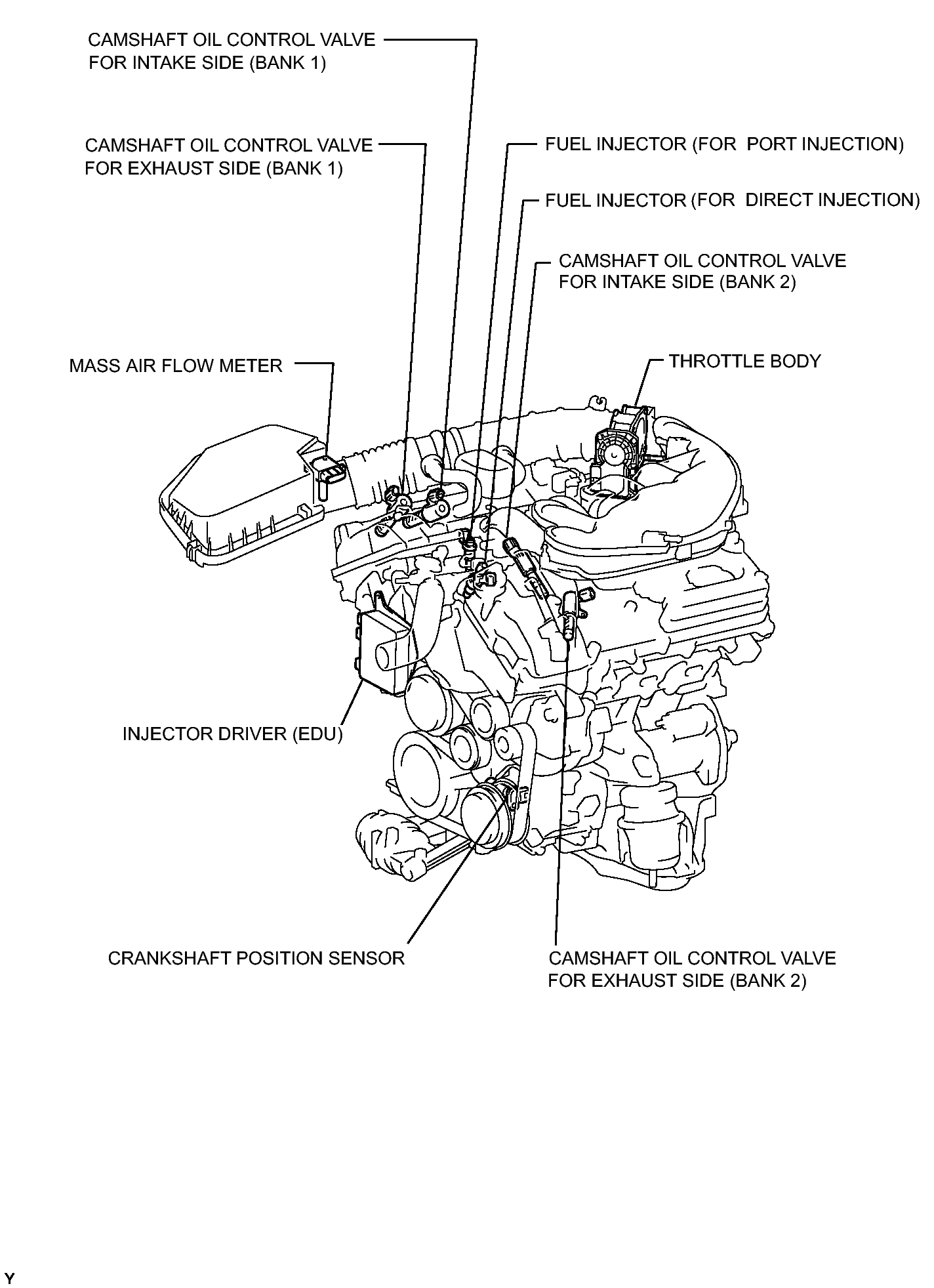

Fig 1: Identifying SFI System Components (3 Of 4)
GTY103742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

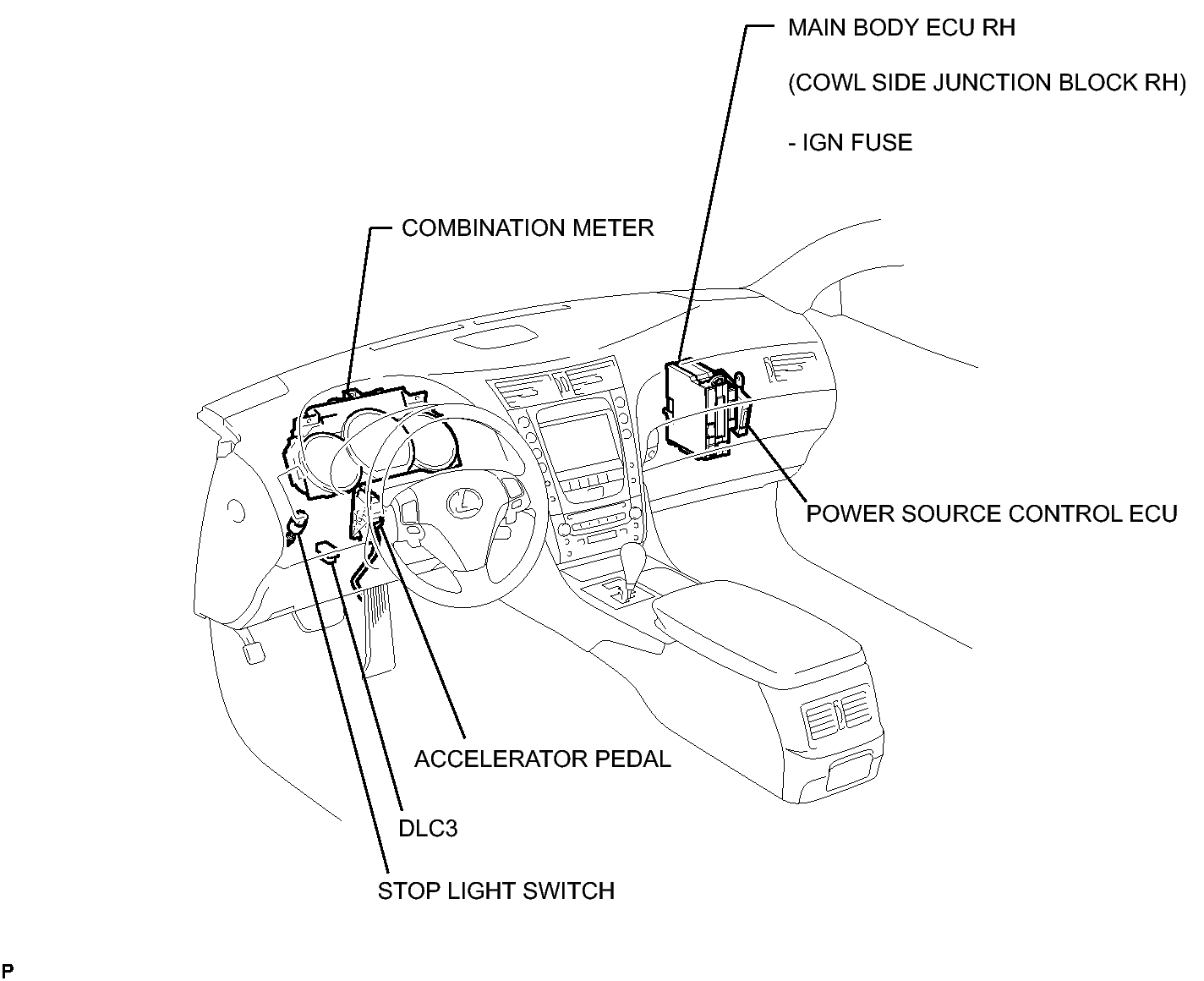

Fig 1: Identifying SFI System Components (4 Of 4)
GTY105149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
