Parts Location: Illustration

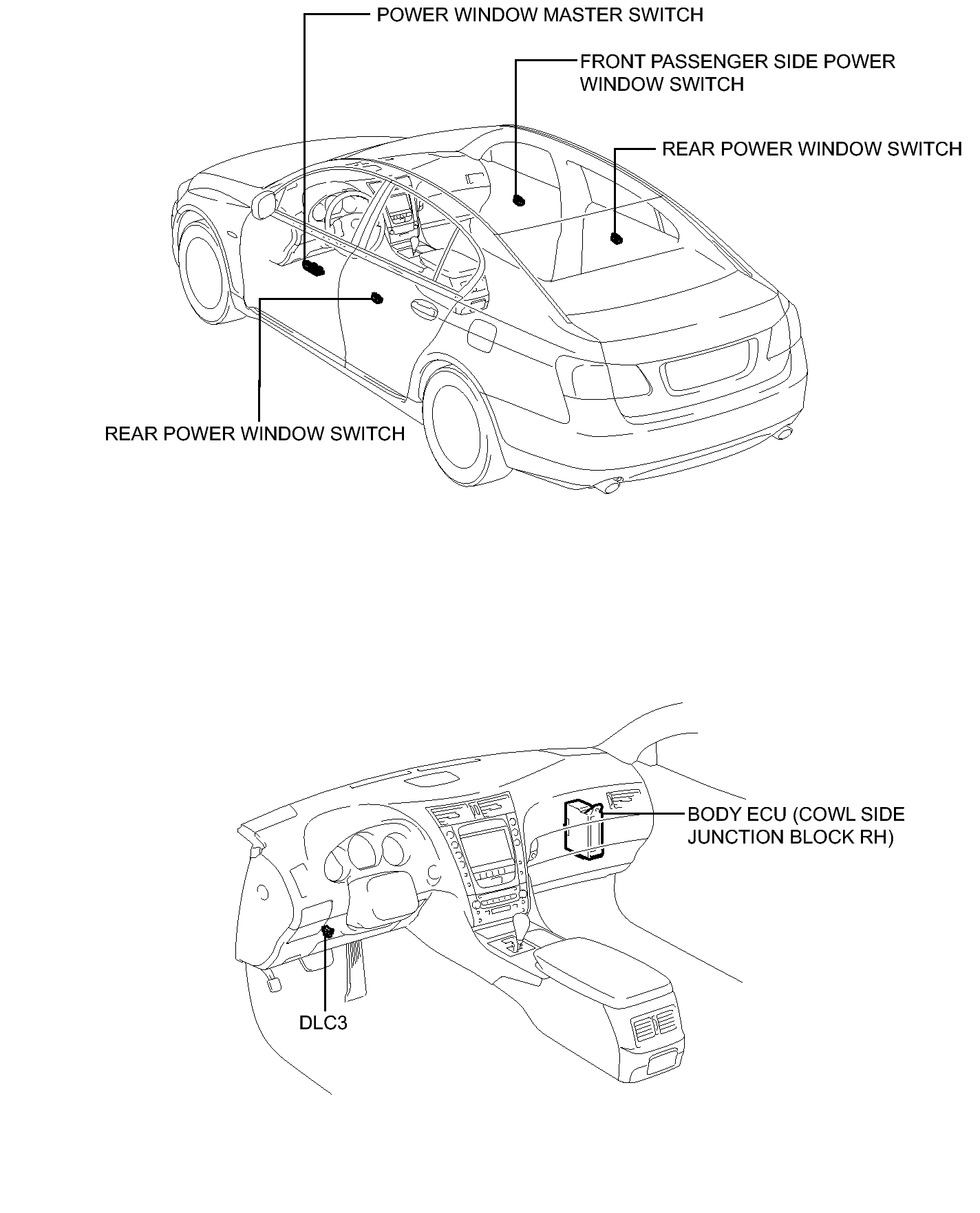

Fig 1: Identifying Power Window Control System Parts Location (1 Of 3)
GTY143538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Power Window Control System Parts Location (2 Of 3)
GTY103740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Power Window Control System Parts Location (3 Of 3)
GTY106409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
