Back-Up Light: Notes

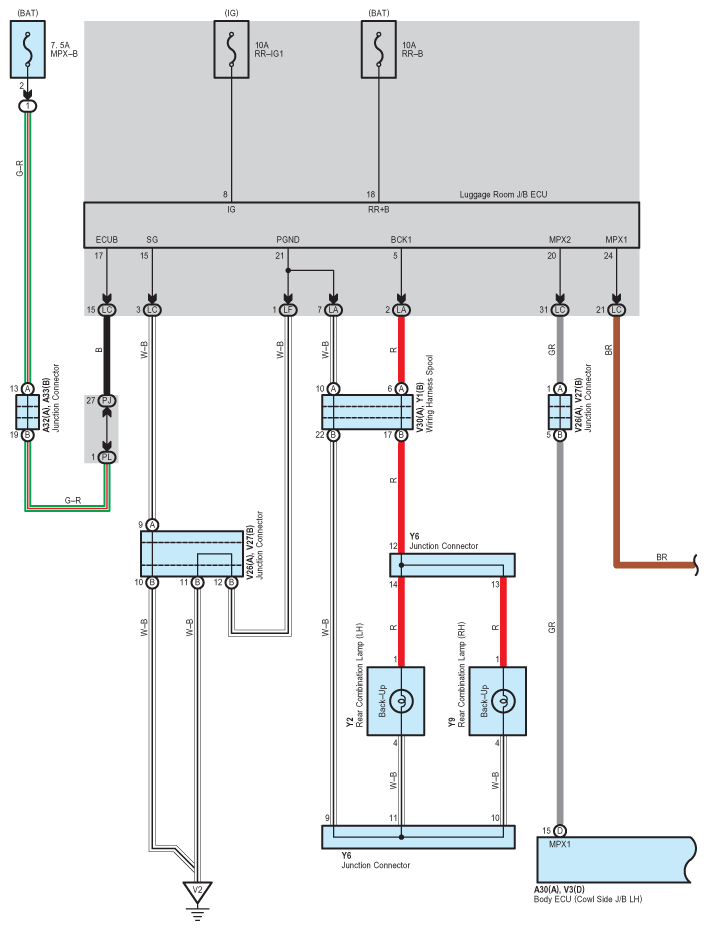

Fig 1: Back-Up Light - Wiring Diagram (1 Of 3)
G07557837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

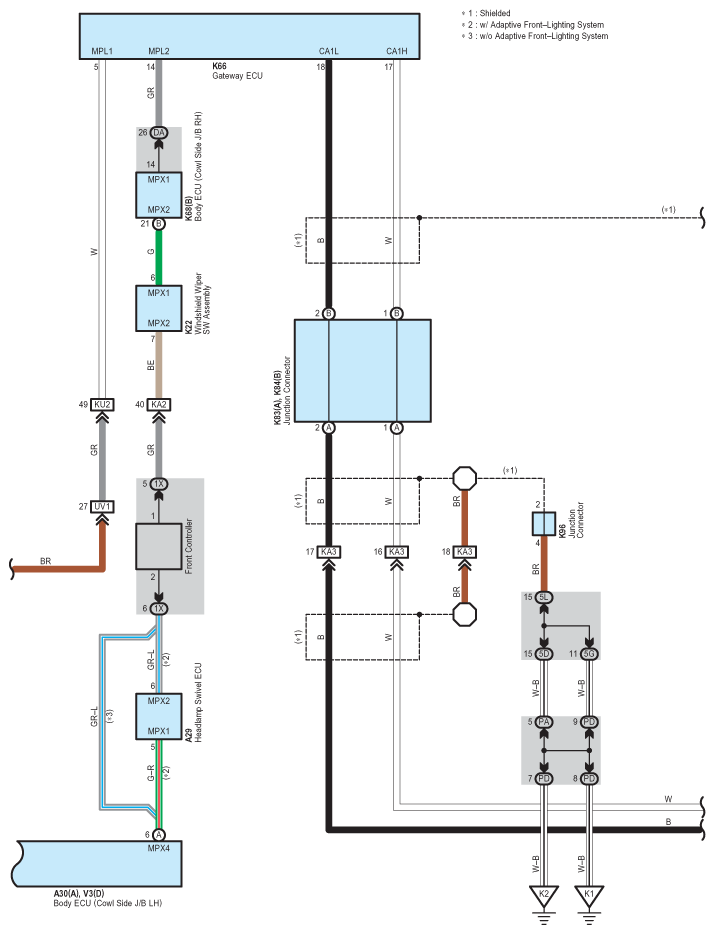

Fig 2: Back-Up Light - Wiring Diagram (2 Of 3)
G07557838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

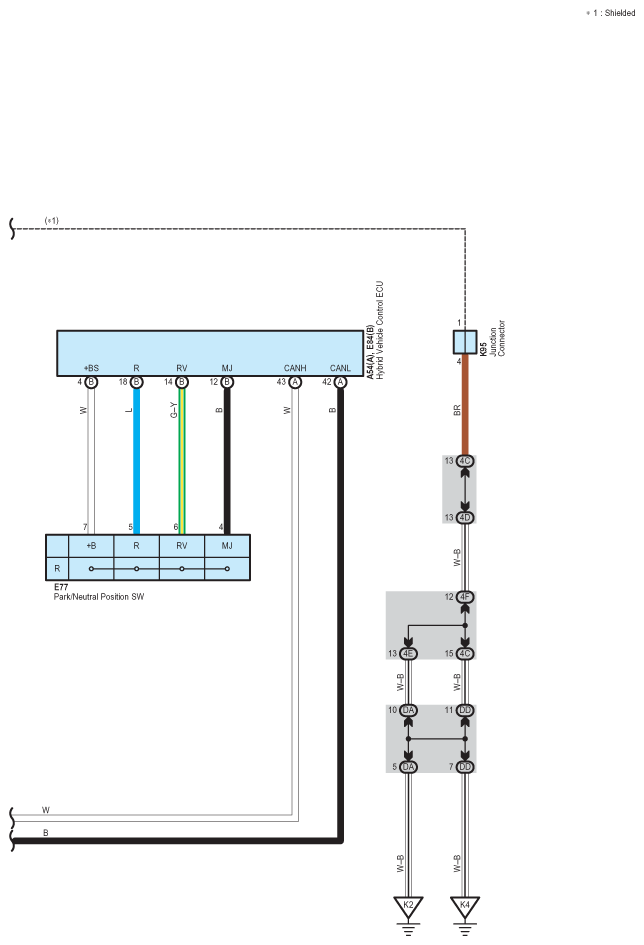

Fig 3: Back-Up Light - Wiring Diagram (3 Of 3)
G07557839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
