Multiplex Communication System (BEAN): Notes

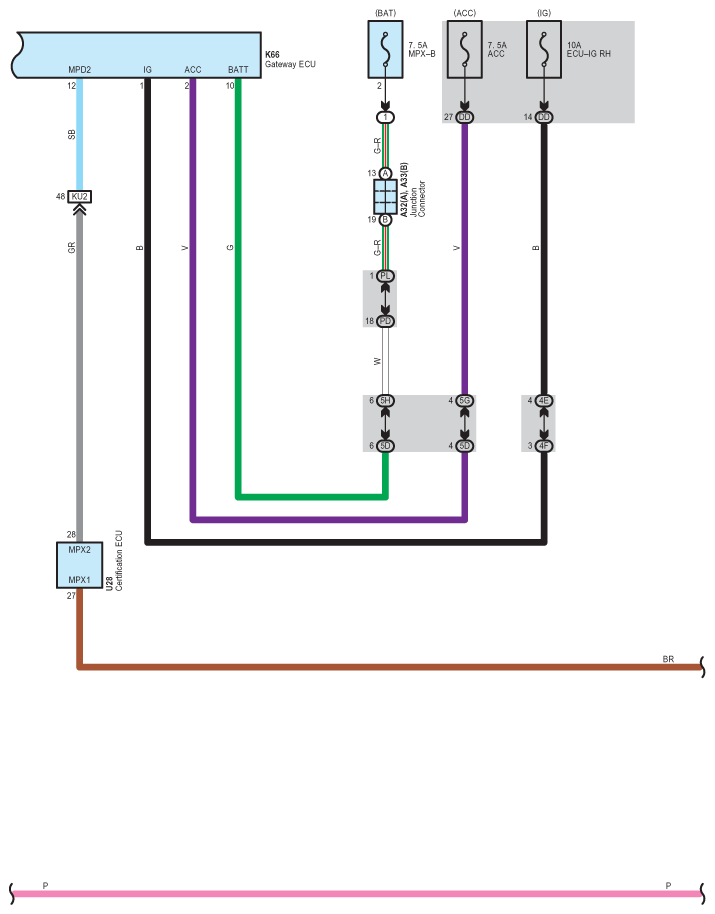

Fig 1: Multiplex Communication System (BEAN) - Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

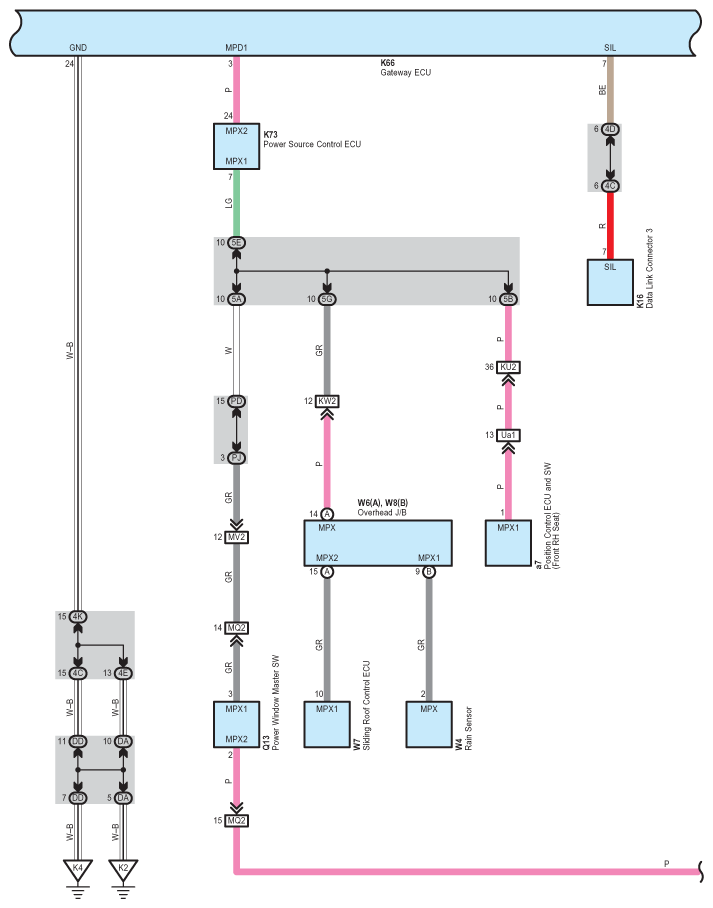

Fig 2: Multiplex Communication System (BEAN) - Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

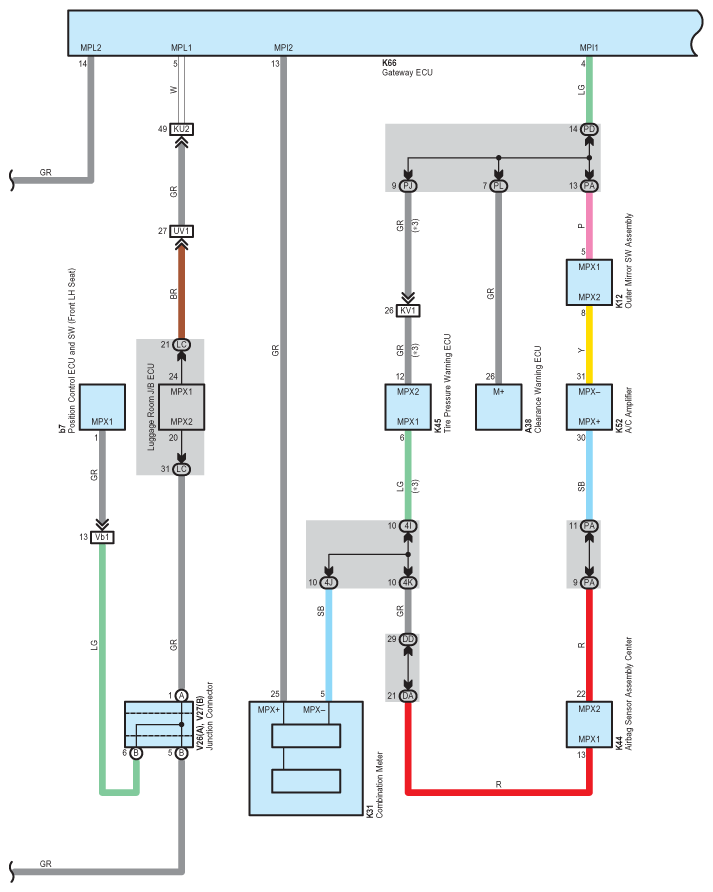

Fig 3: Multiplex Communication System (BEAN) - Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Multiplex Communication System (BEAN) - Wiring Diagram (4 Of 5)

Fig 5: Multiplex Communication System (BEAN) - Wiring Diagram (5 Of 5)
