Parts Location: Illustration

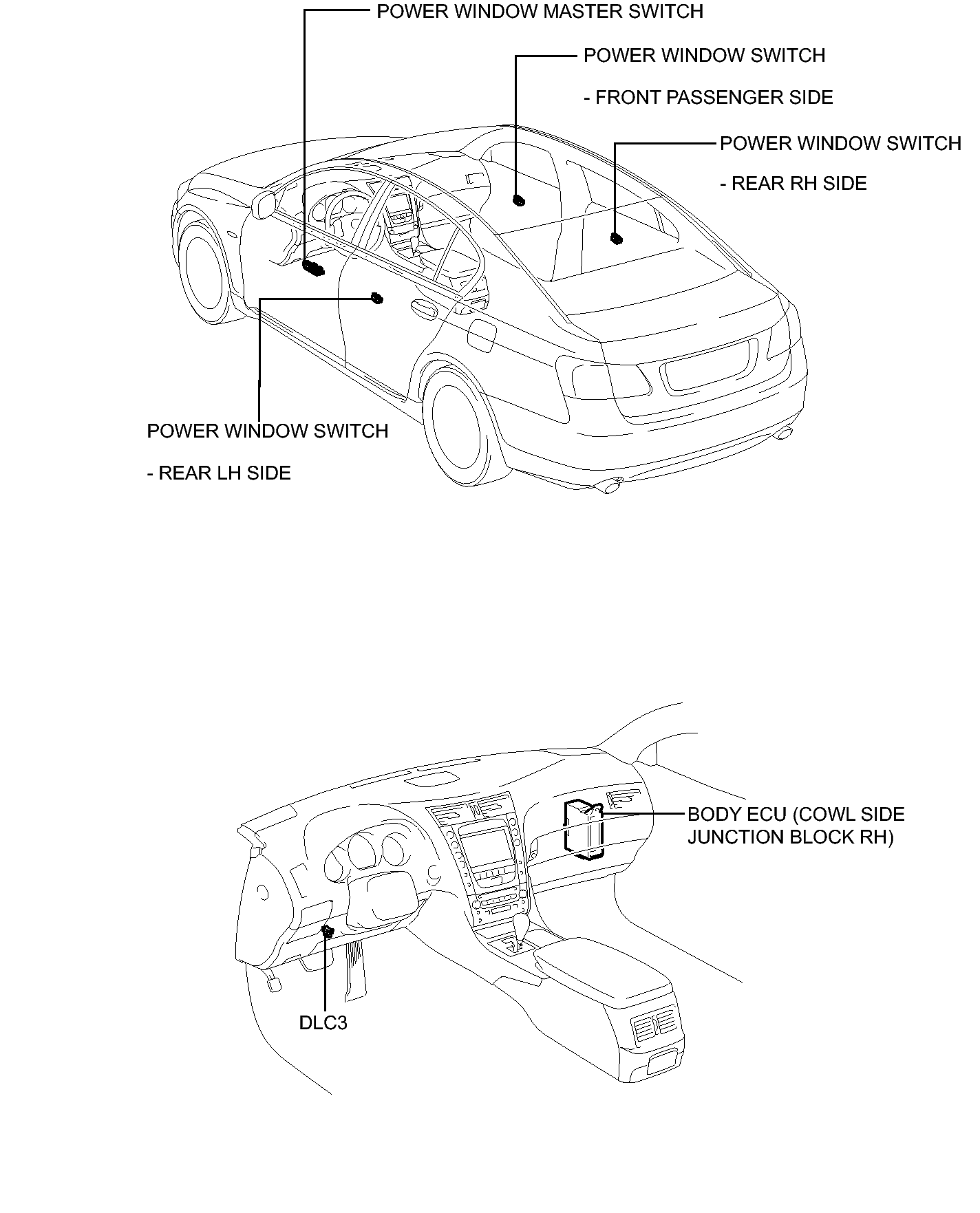

Fig 1: Identifying Power Window Control System Components (1 Of 3)
GTY106362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

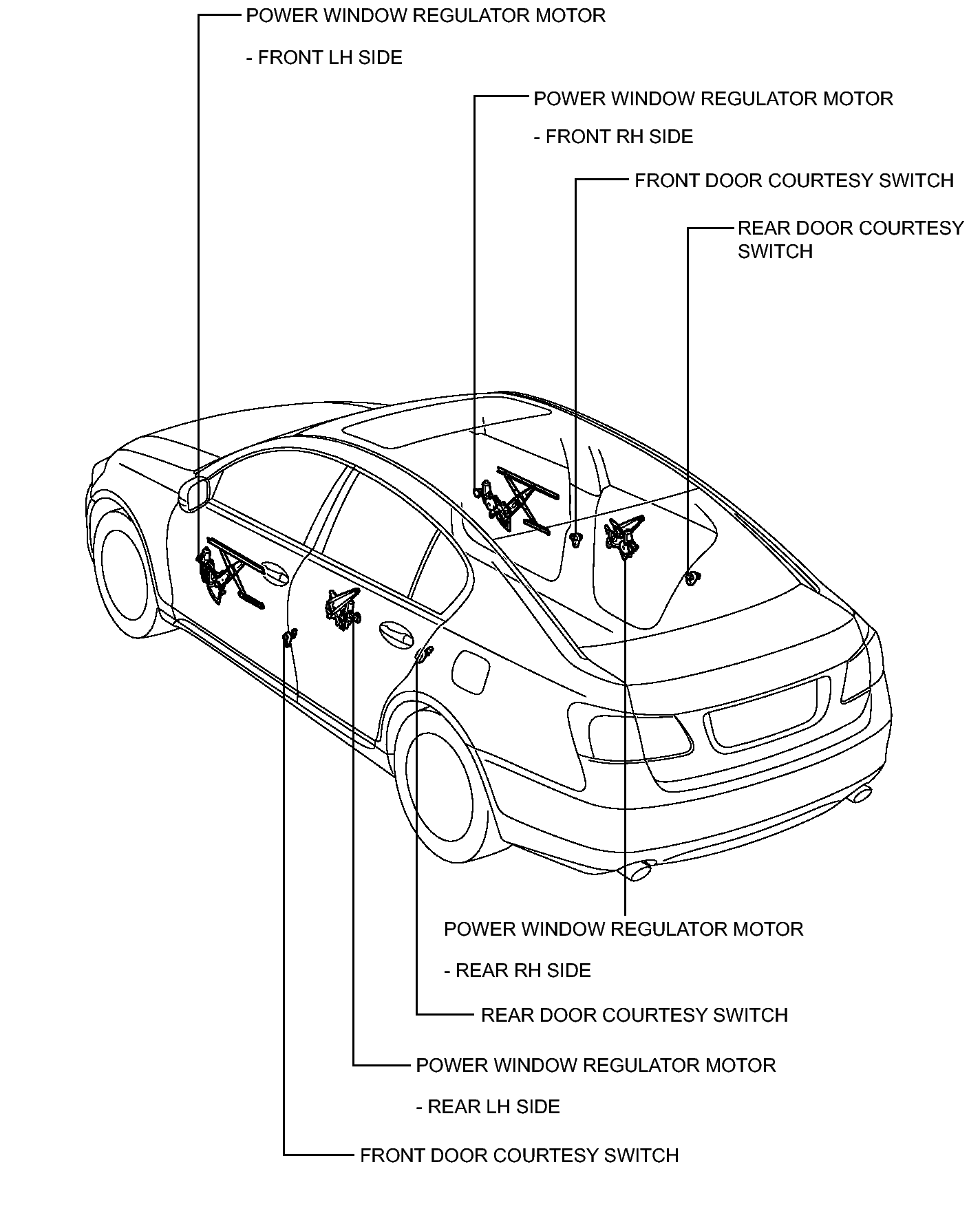

Fig 1: Identifying Power Window Control System Components (2 Of 3)
GTY103740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

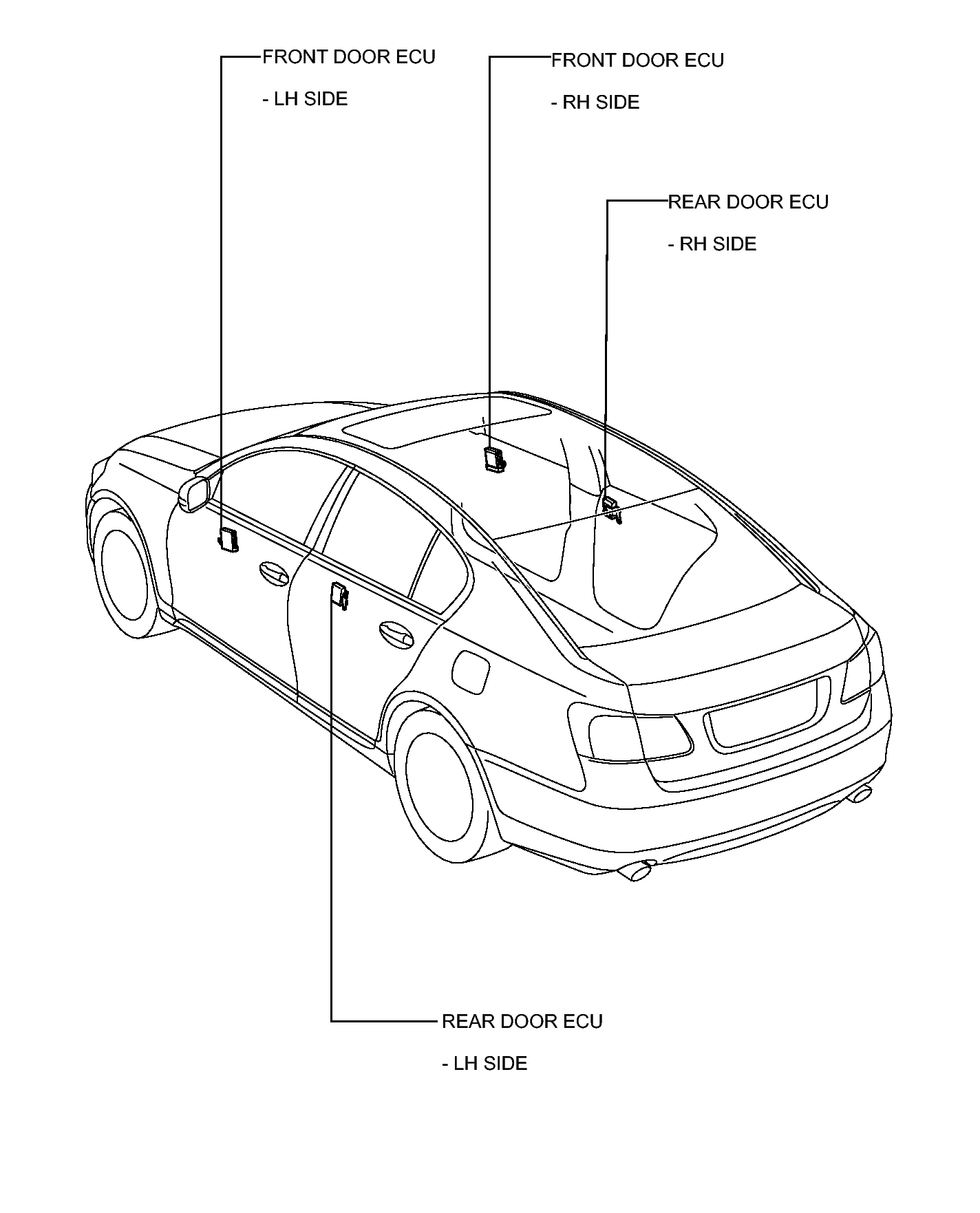

Fig 1: Identifying Power Window Control System Components (3 Of 3)
GTY106409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
