OEM System Circuits: 4WD: Notes

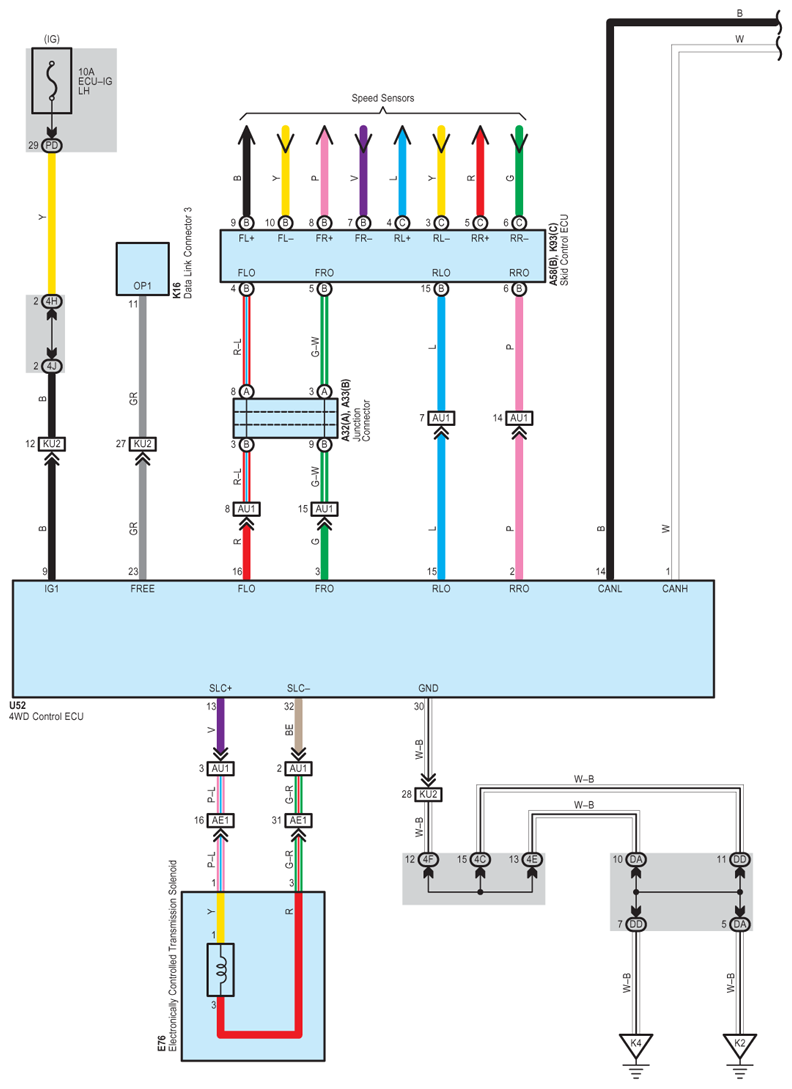

Fig 1: 4Wd - Circuit Diagram (1 Of 4)

G07627000

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

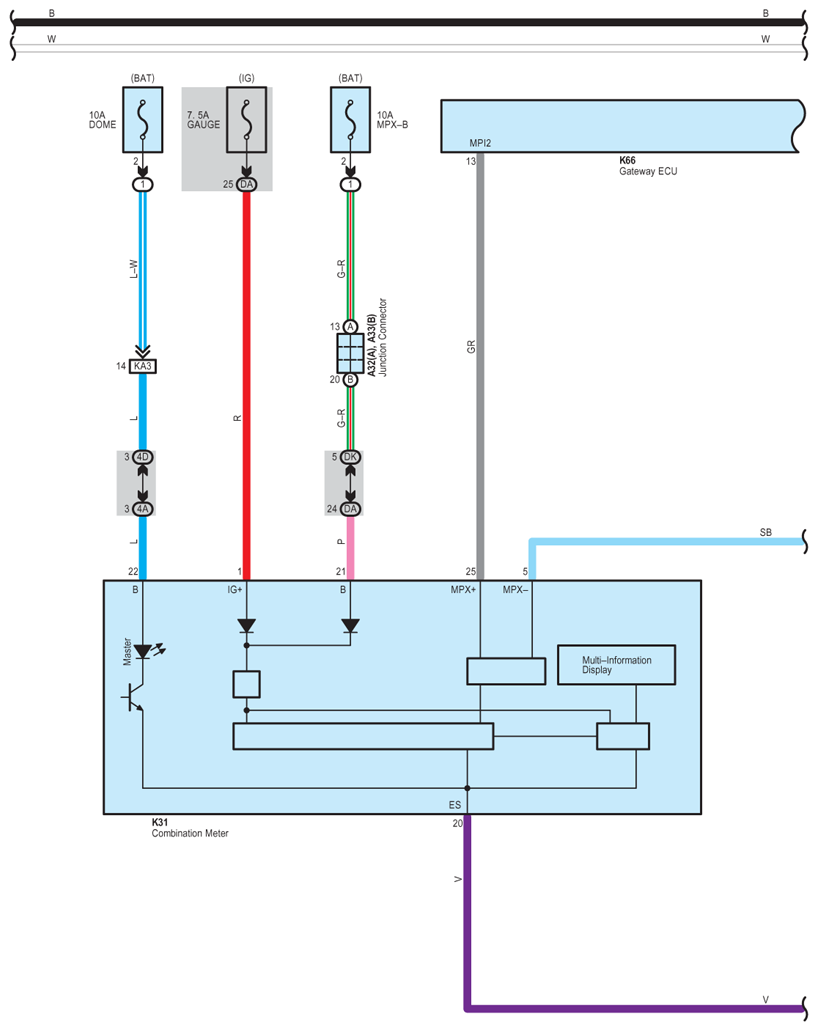

Fig 2: 4Wd - Circuit Diagram (2 Of 4)

G07627001

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

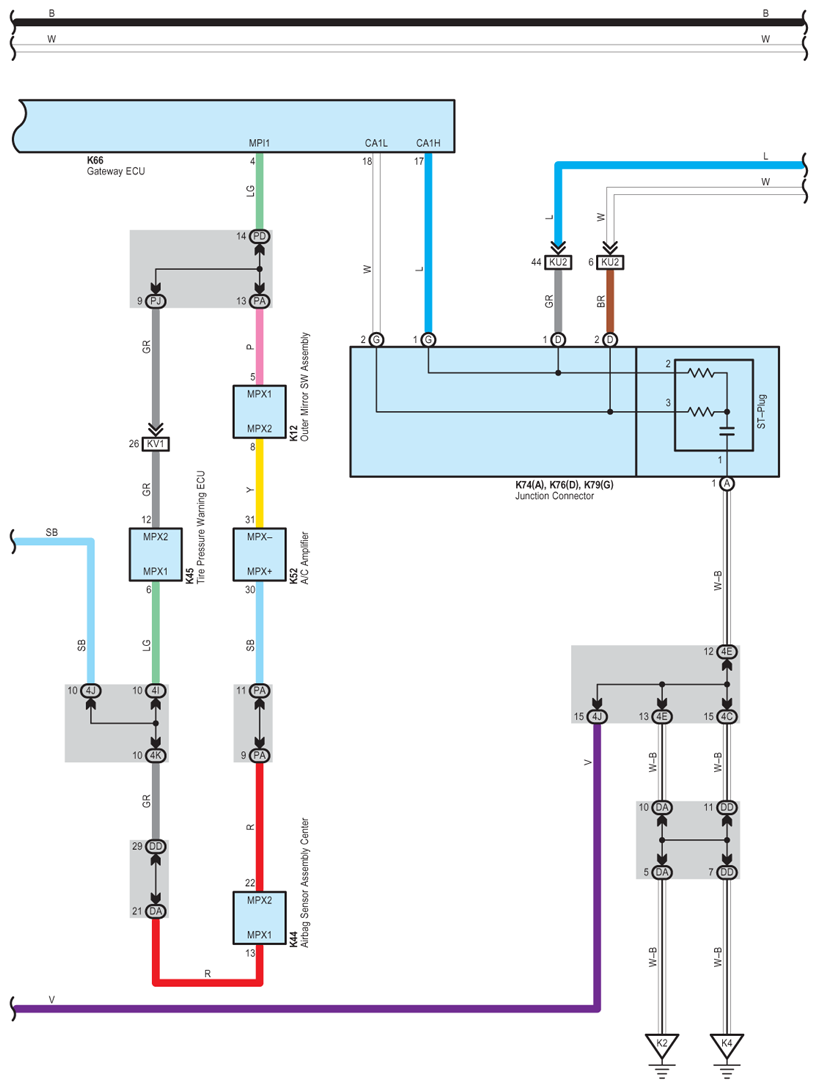

Fig 3: 4Wd - Circuit Diagram (3 Of 4)

G07627002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

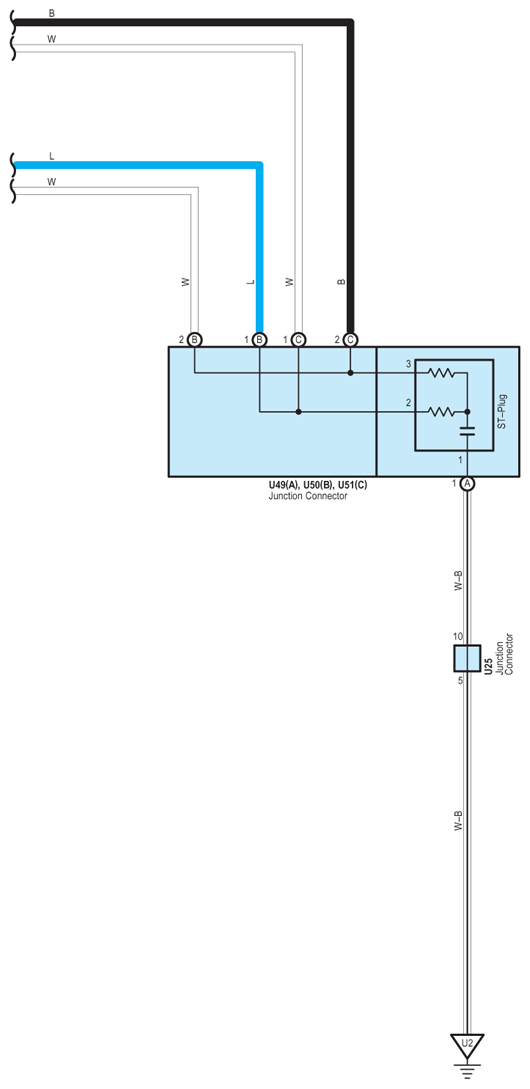

Fig 4: 4Wd - Circuit Diagram (4 Of 4)

G07627003

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
