Parts Location: Illustration

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

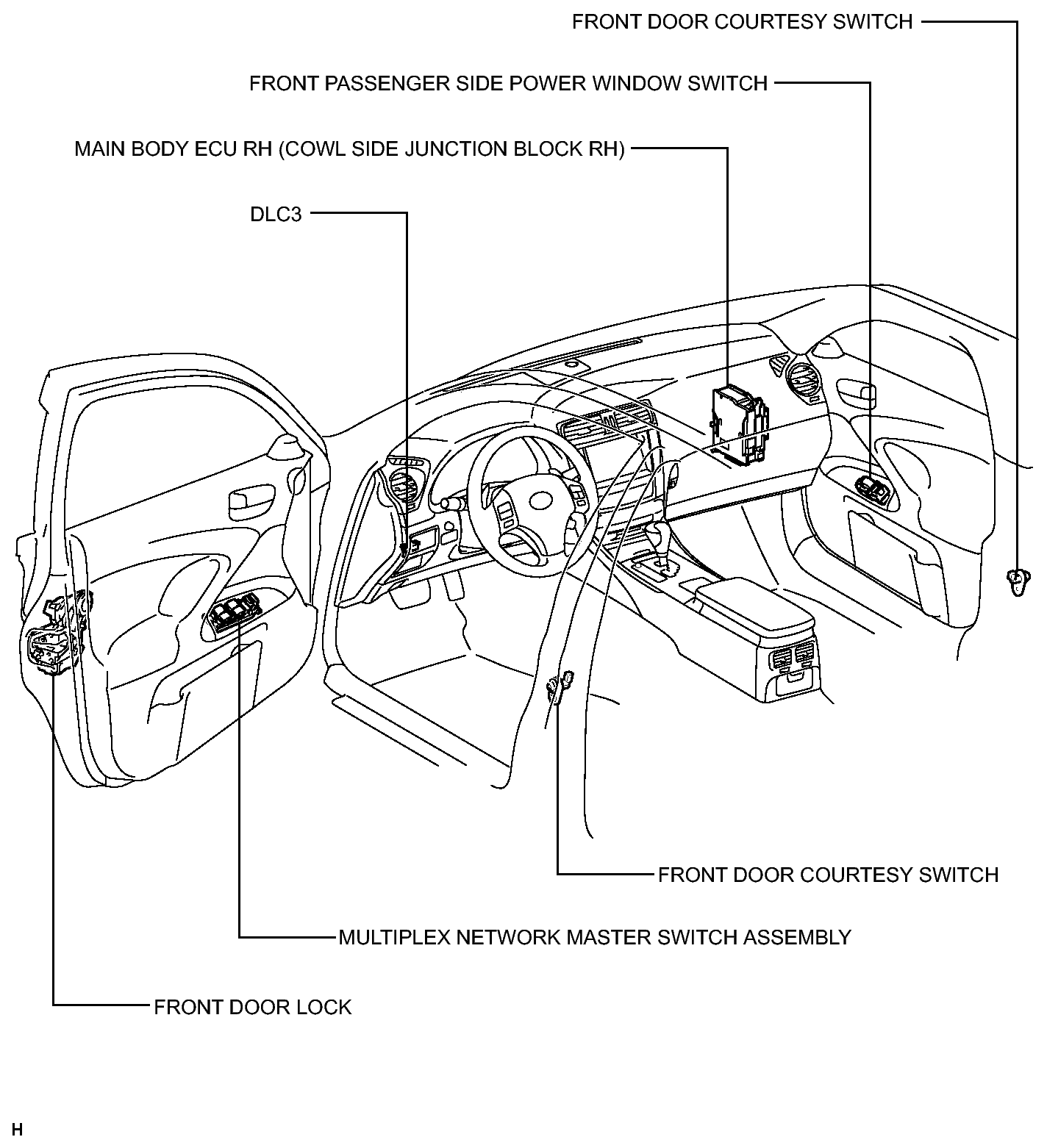

Fig 1: Identifying Power Window Control System Parts Location (1 Of 2)
GTY132983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

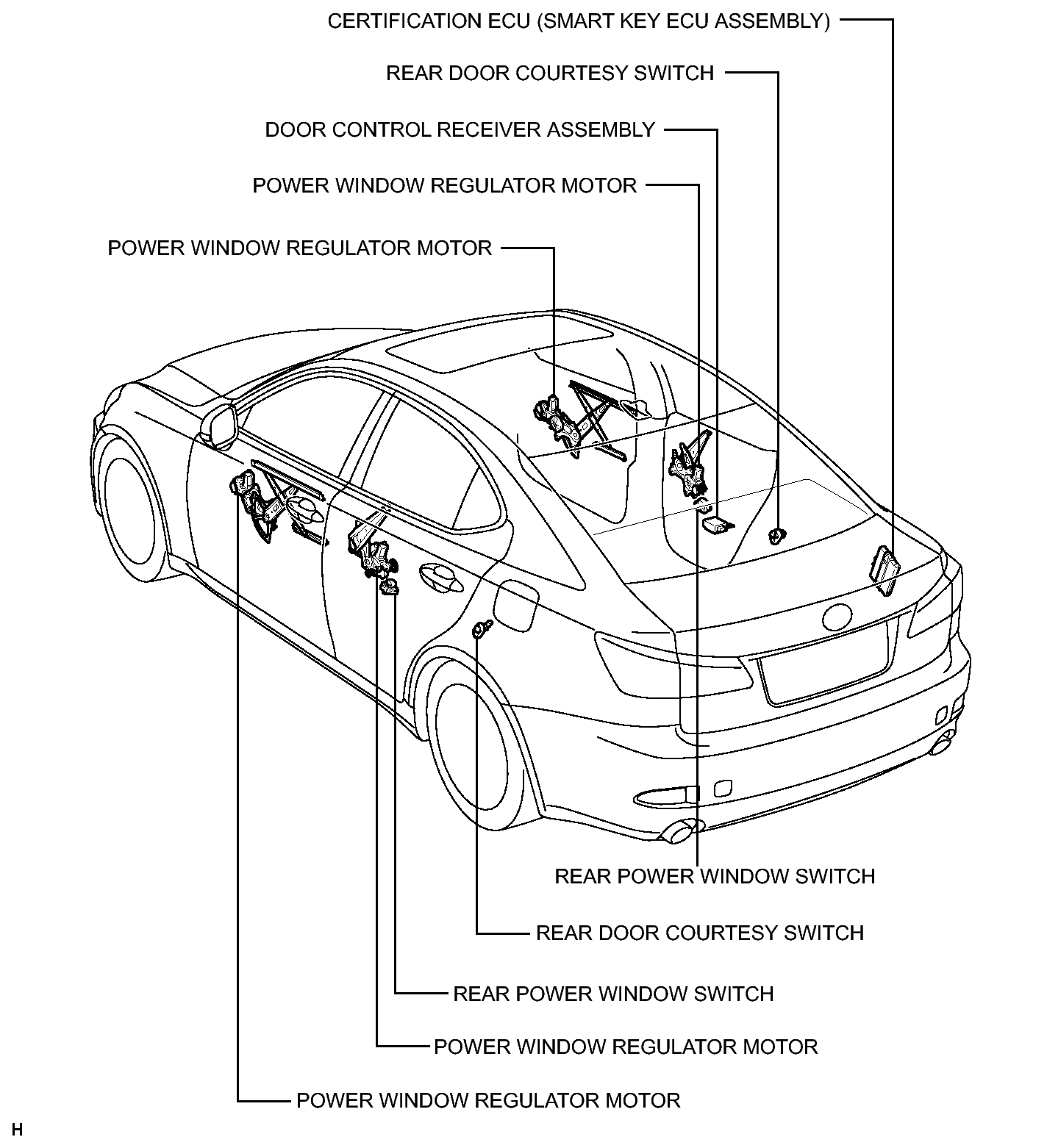

Fig 1: Identifying Power Window Control System Parts Location (2 Of 2)
GTY134891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
