Power Outlet (120V-400W): Notes

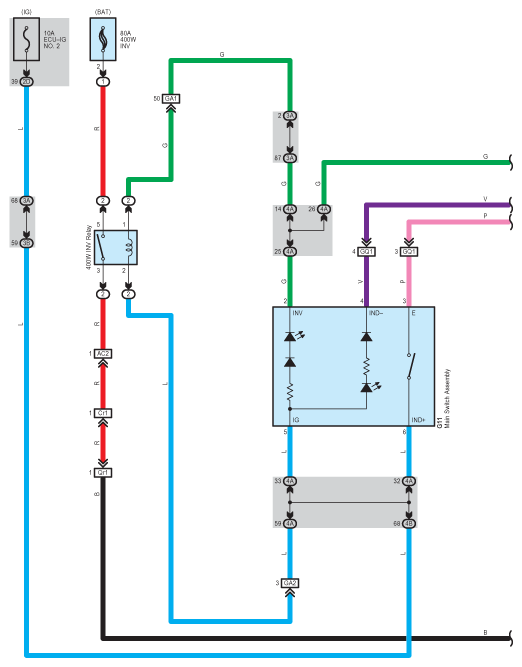

Fig 1: Power Outlet (120V-400W) - Circuit Diagram (1 Of 3)
G07579543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

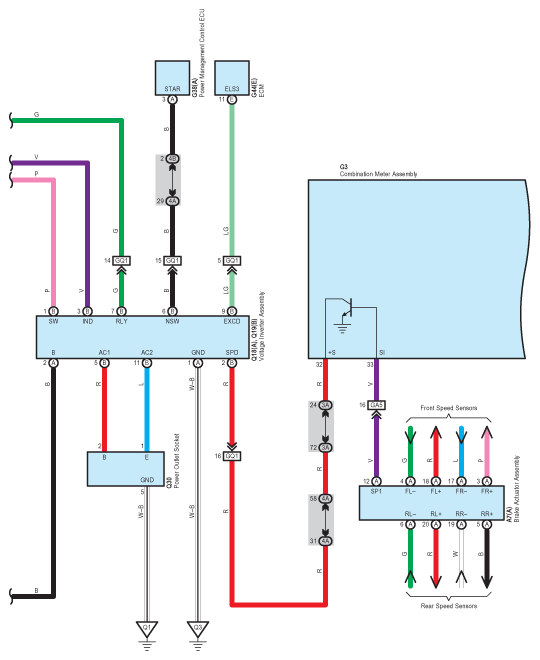

Fig 2: Power Outlet (120V-400W) - Circuit Diagram (2 Of 3)
G07579544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

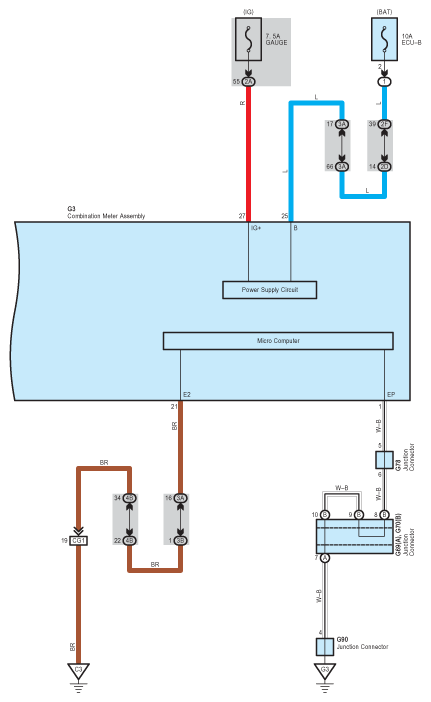

Fig 3: Power Outlet (120V-400W) - Circuit Diagram (3 Of 3)
G07579545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
