Ground Point: Notes — 2010 Lexus HS 250h Service Manual ~ FixVault

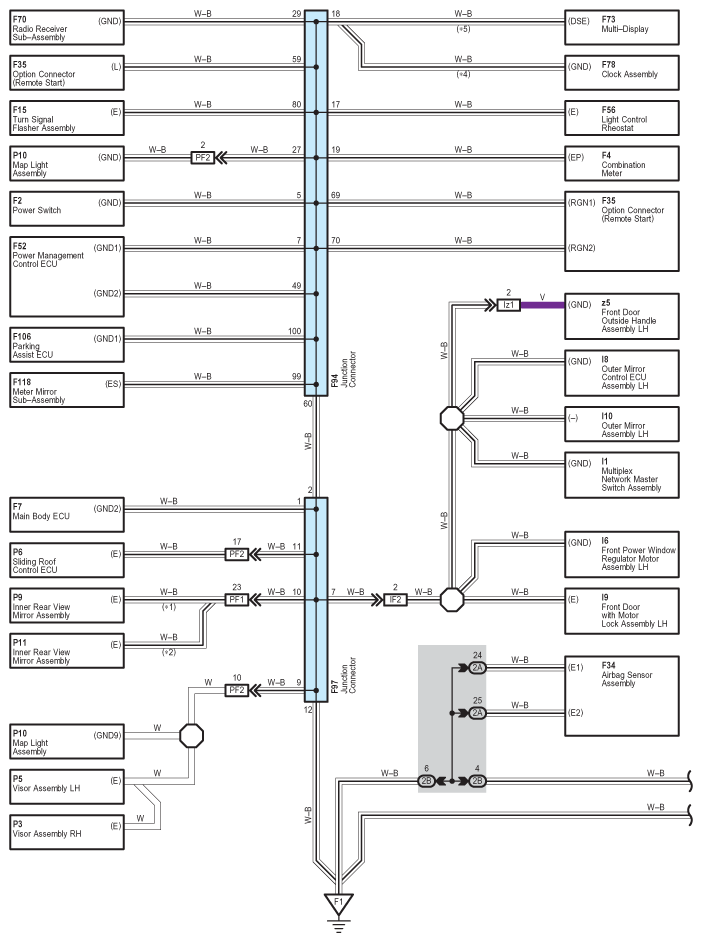

Fig 1: Ground Point - Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

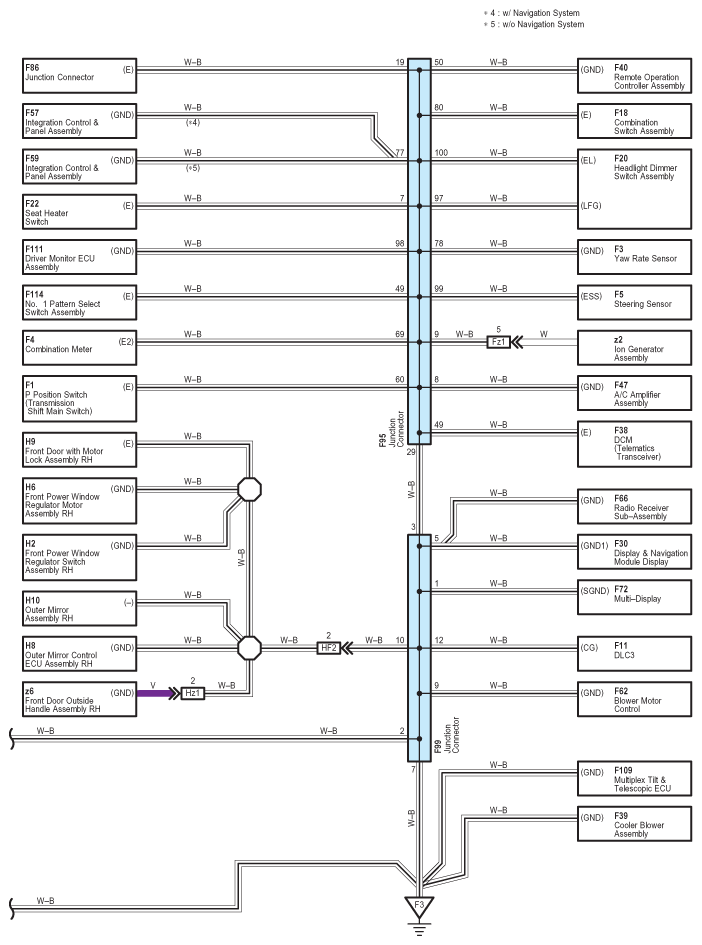

Fig 2: Ground Point - Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

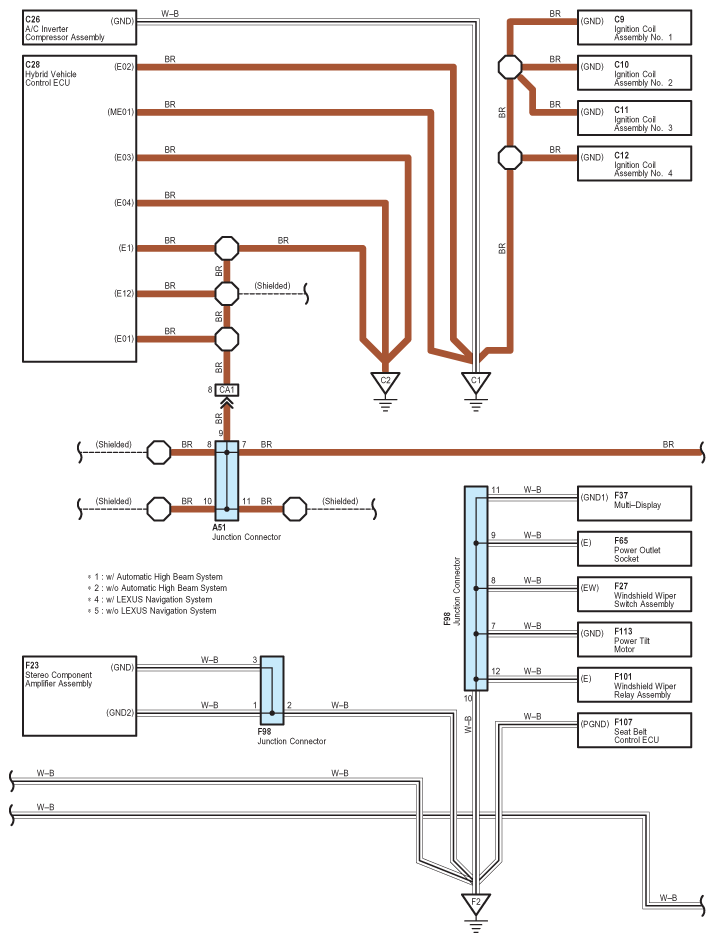

Fig 3: Ground Point - Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

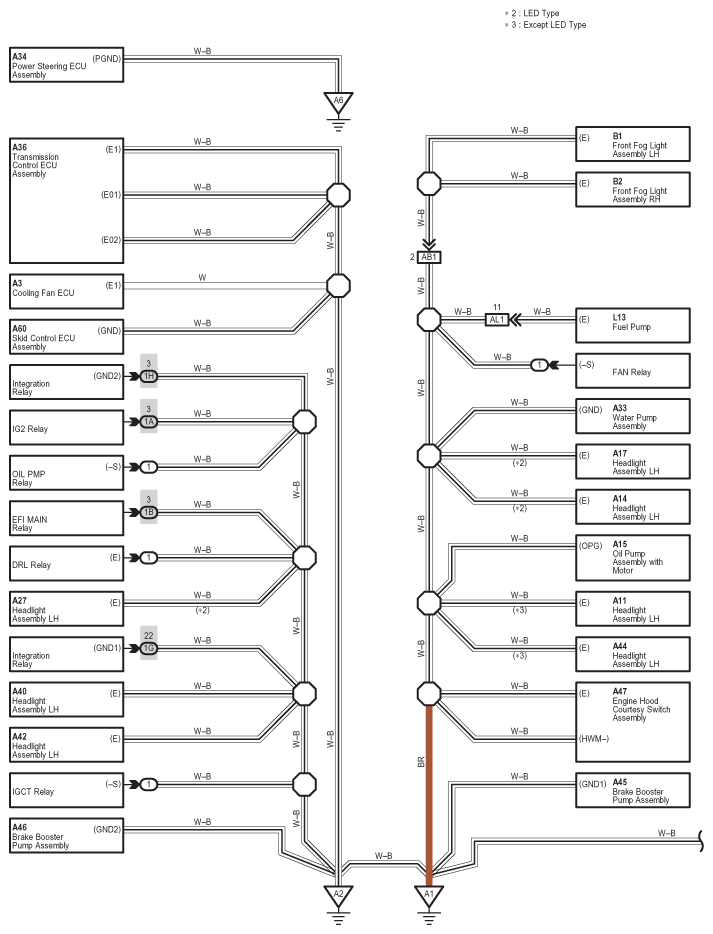

Fig 4: Ground Point - Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

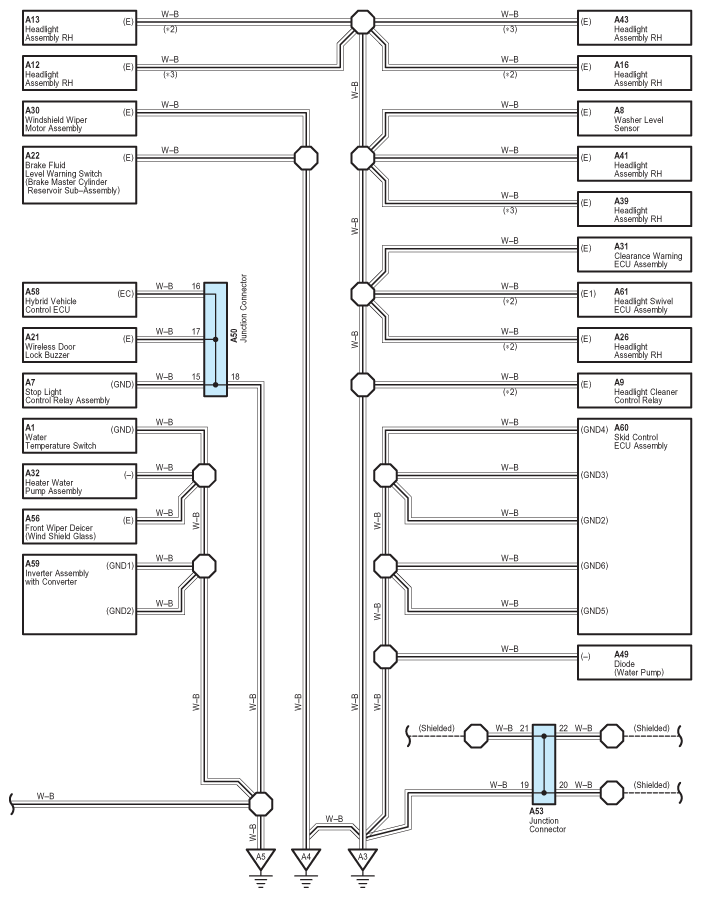

Fig 5: Ground Point - Wiring Diagram (5 Of 7)

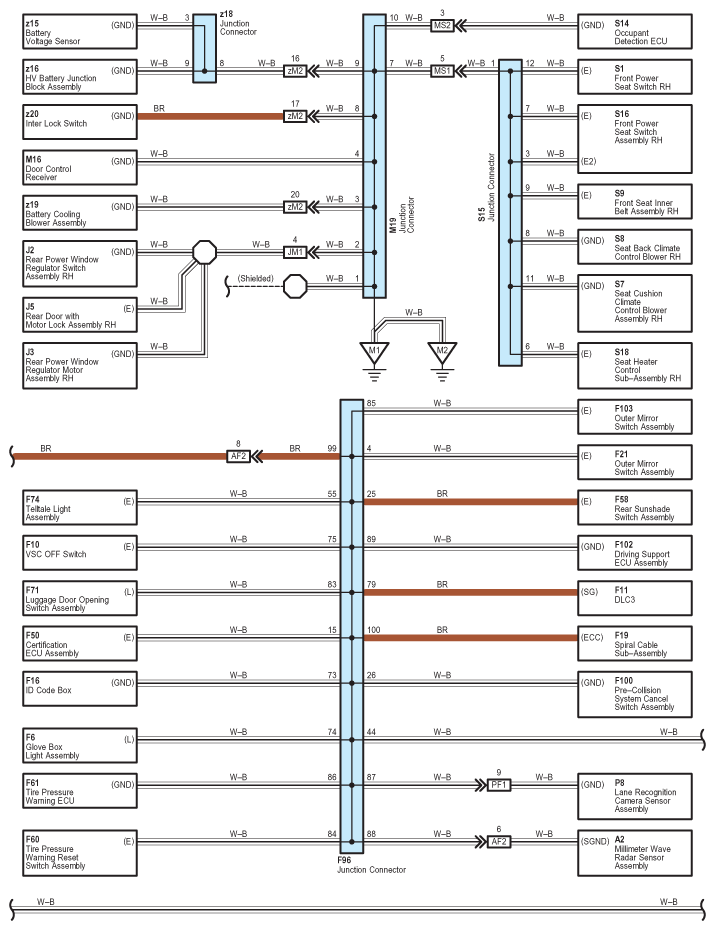

Fig 6: Ground Point - Wiring Diagram (6 Of 7)

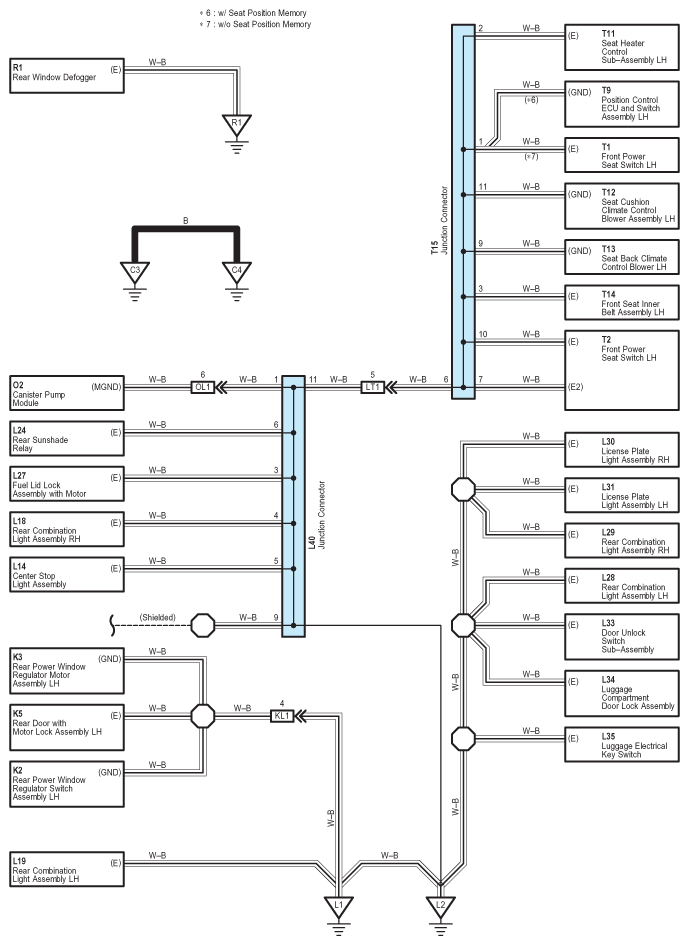

Fig 7: Ground Point - Wiring Diagram (7 Of 7)
