System Diagram

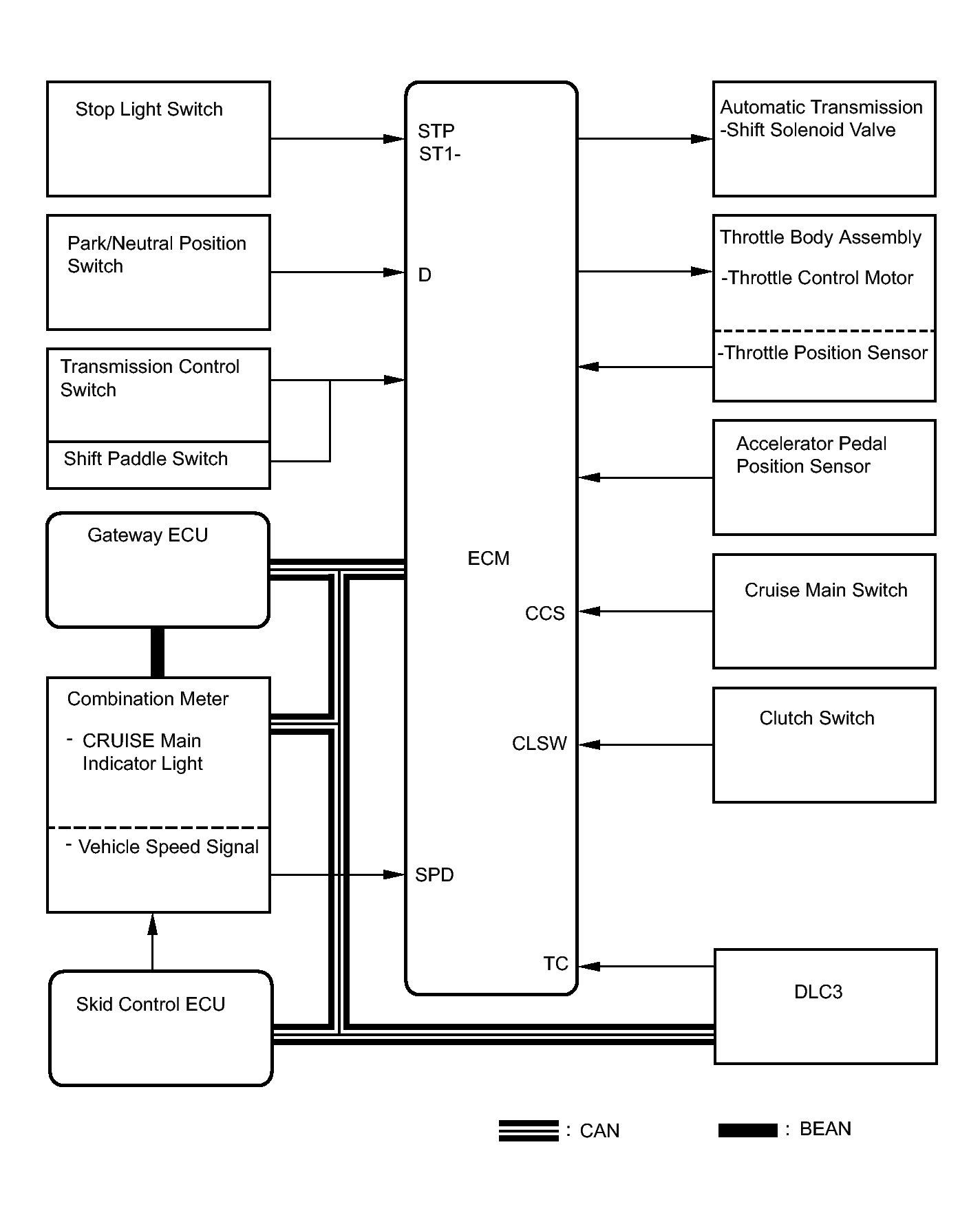

Fig 1: Cruise Control System Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE:

Sender	Receiver	Signal	Line
ECM	Combination Meter ECU	CRUISE main indicator operation signal	BEAN (Instrument Panel Bus)
