Ignition (2GR-FSE)
›
Notes
Ignition (2GR-FSE): Notes

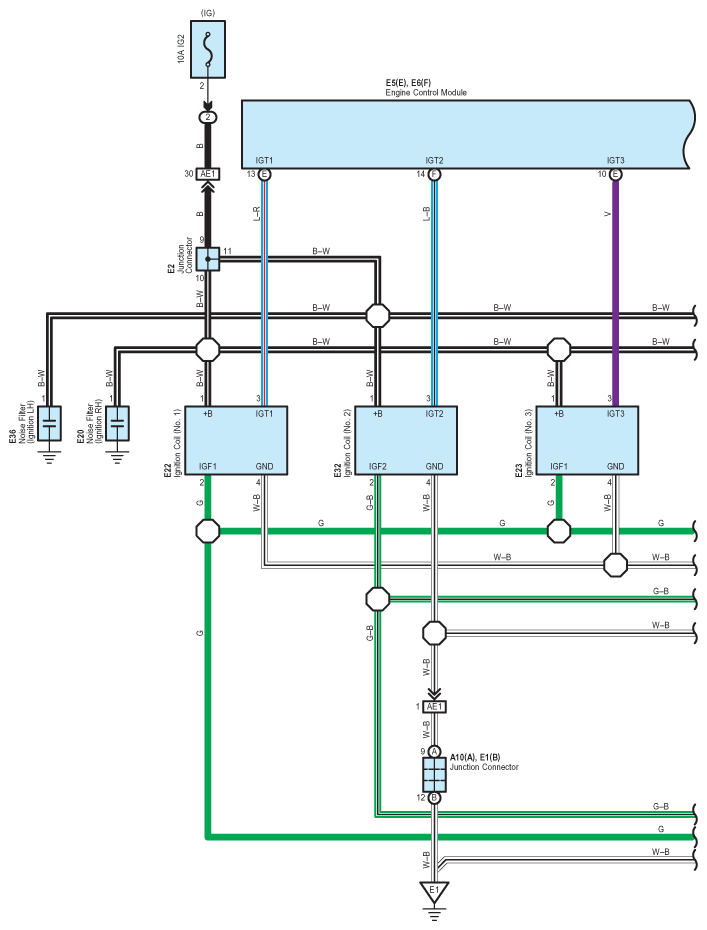

Fig 1: Ignition (2GR-FSE) - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

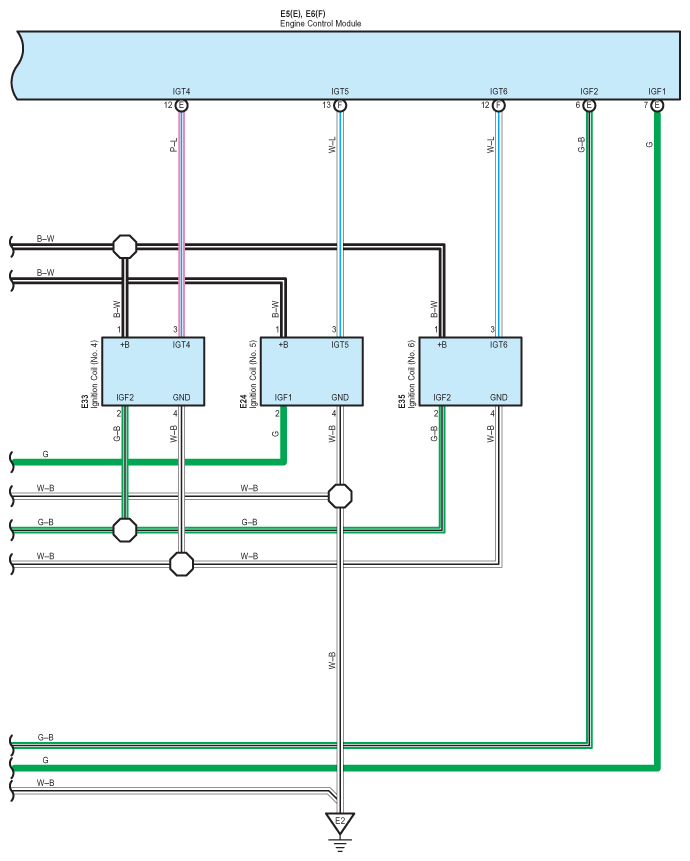

Fig 2: Ignition (2GR-FSE) - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
