Remote Control Mirror (w/o Seat Position Memory)
›
Notes
Remote Control Mirror (w/o Seat Position Memory): Notes

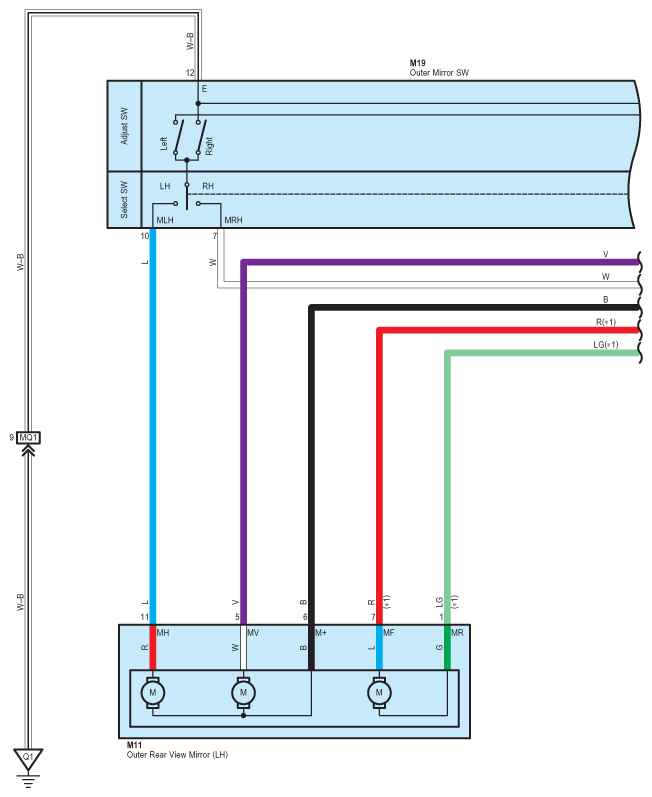

Fig 1: Remote Control Mirror (W/O Seat Position Memory) - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

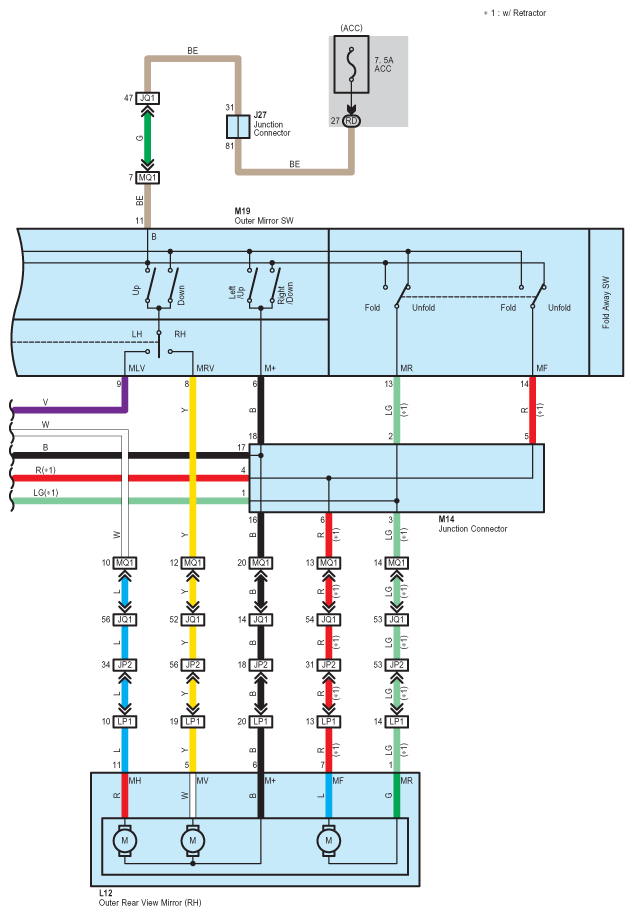

Fig 2: Remote Control Mirror (W/O Seat Position Memory) - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
