Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel (Service Information)
›
Fuel Pump Resistor
›
Components
›
Illustration
Fuel Pump Resistor: Components: Illustration

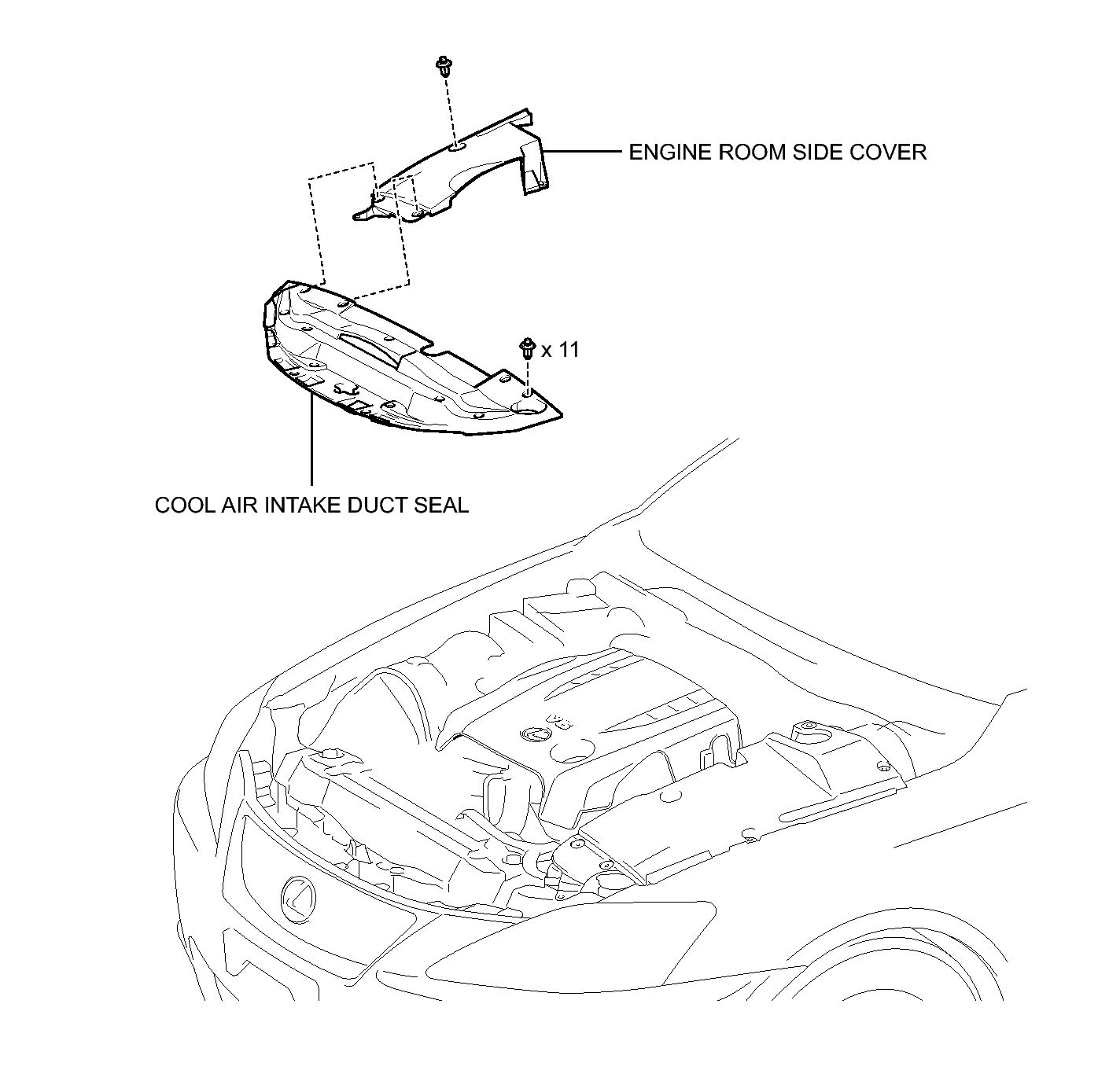

Fig 1: Identifying Fuel Pump Resistor Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

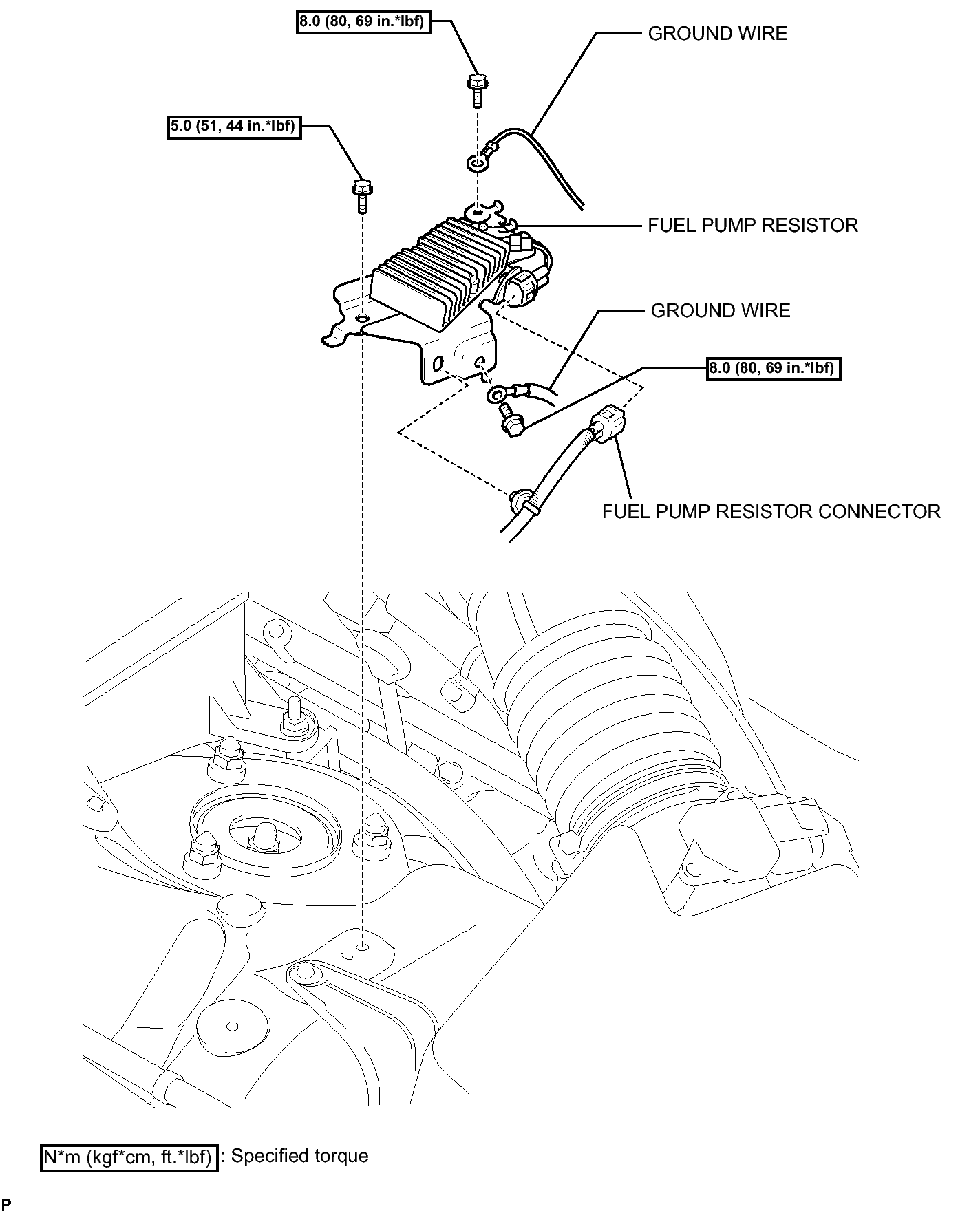

Fig 1: Identifying Fuel Pump Resistor Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
