OEM System Circuits: 4WD: Notes

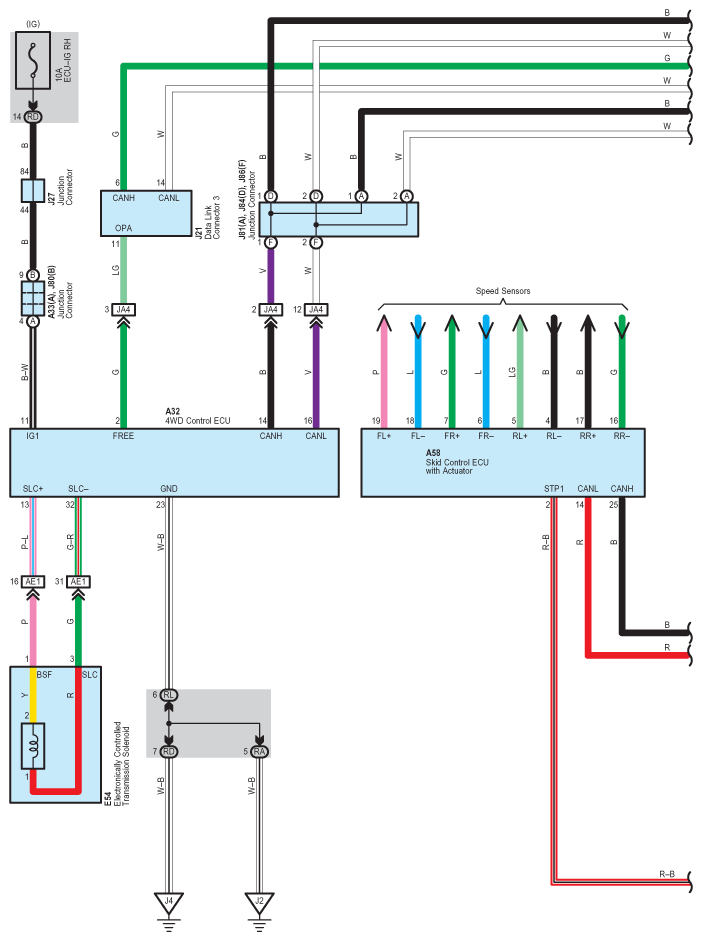

Fig 1: 4WD - Circuit Diagram (1 Of 3)

G07559170

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: 4WD - Circuit Diagram (2 Of 3)

G07559171

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

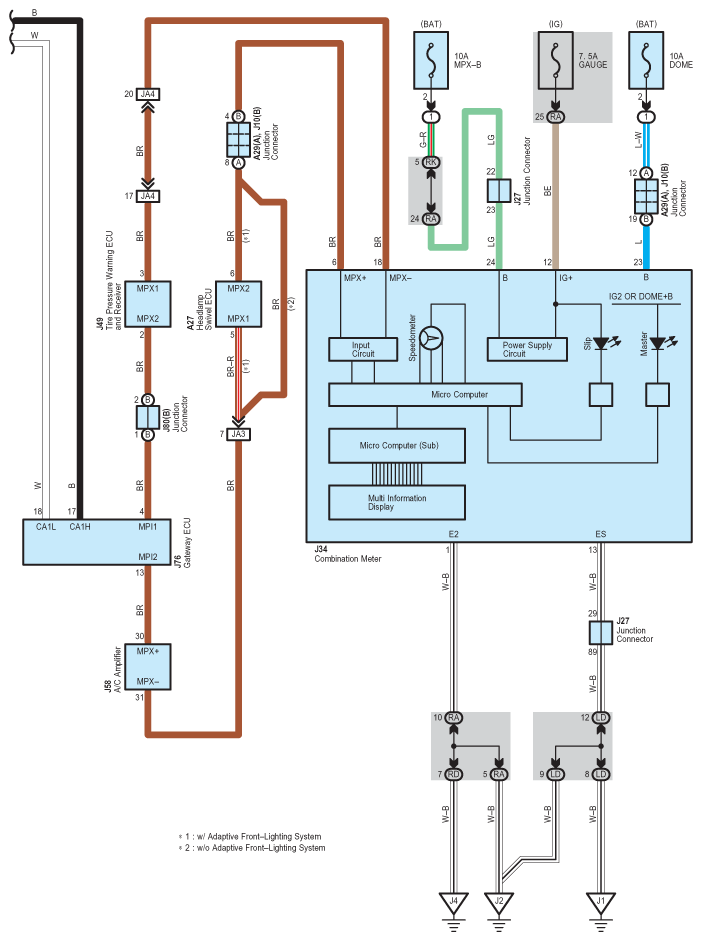

Fig 3: 4WD - Circuit Diagram (3 Of 3)

G07559172

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
