Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch: Wiring Diagram

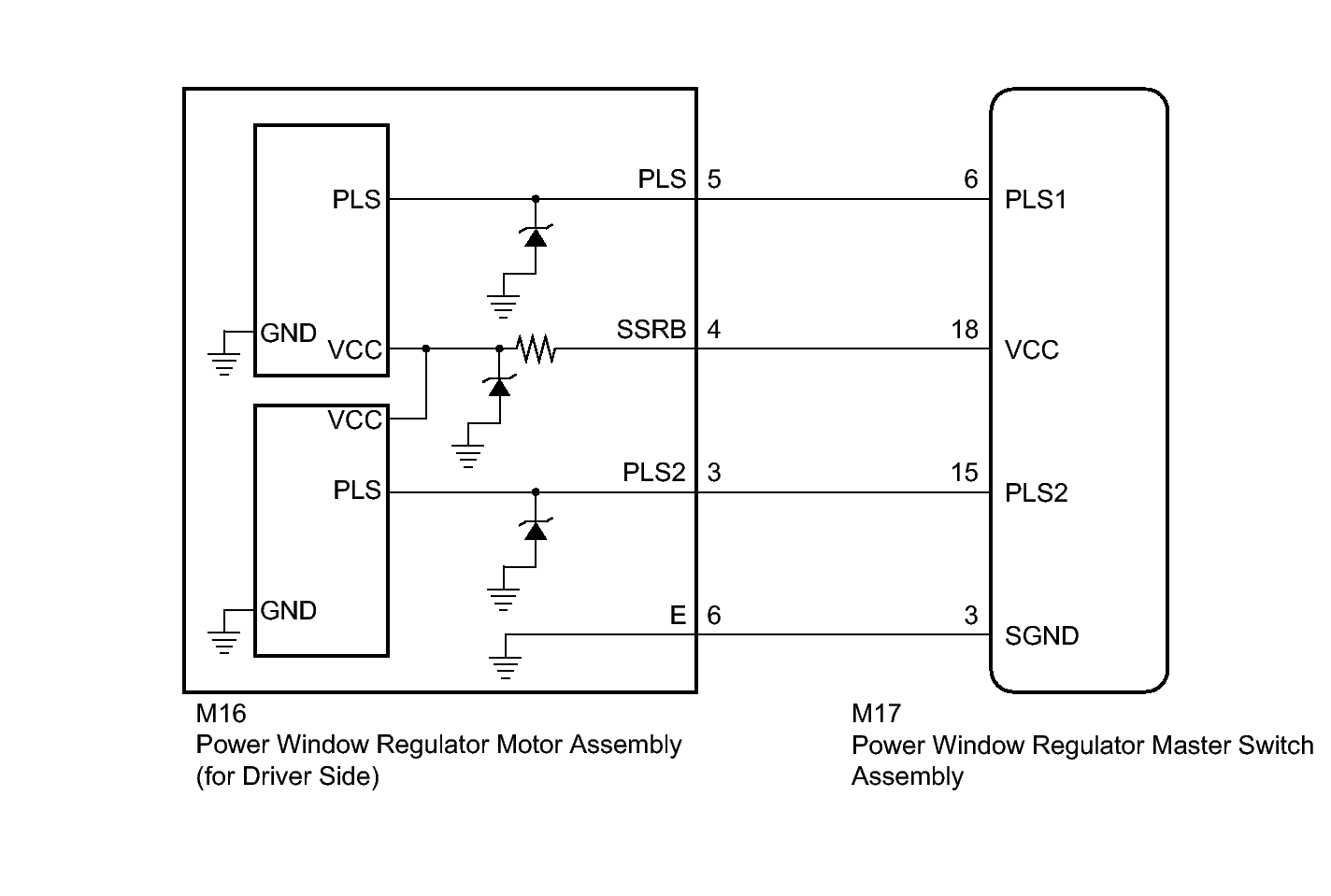

Fig 1: Power Window Master Switch - Wiring Diagram
GTY283391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
