Electronically Controlled Transmission and A/T Indicator (4GR-FSE): Notes

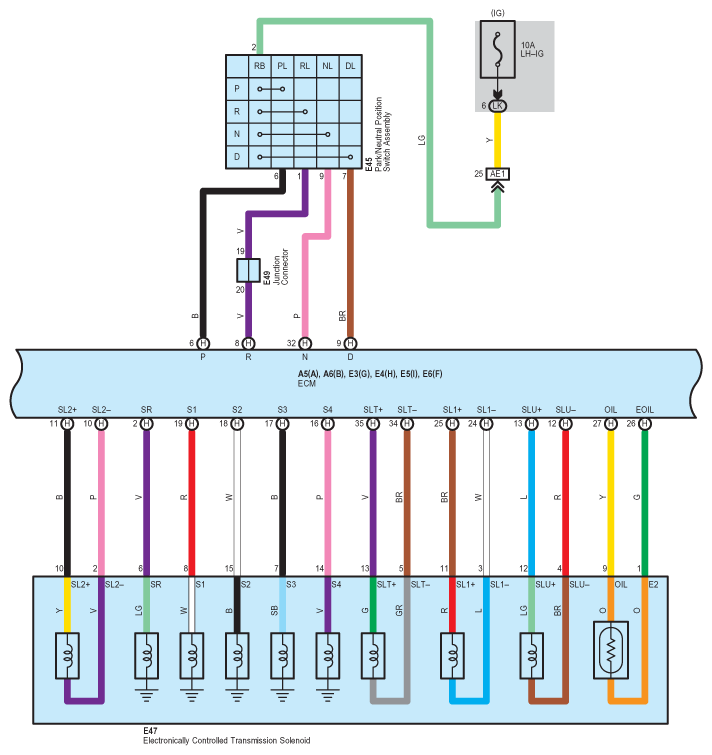

Fig 1: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) - Circuit Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

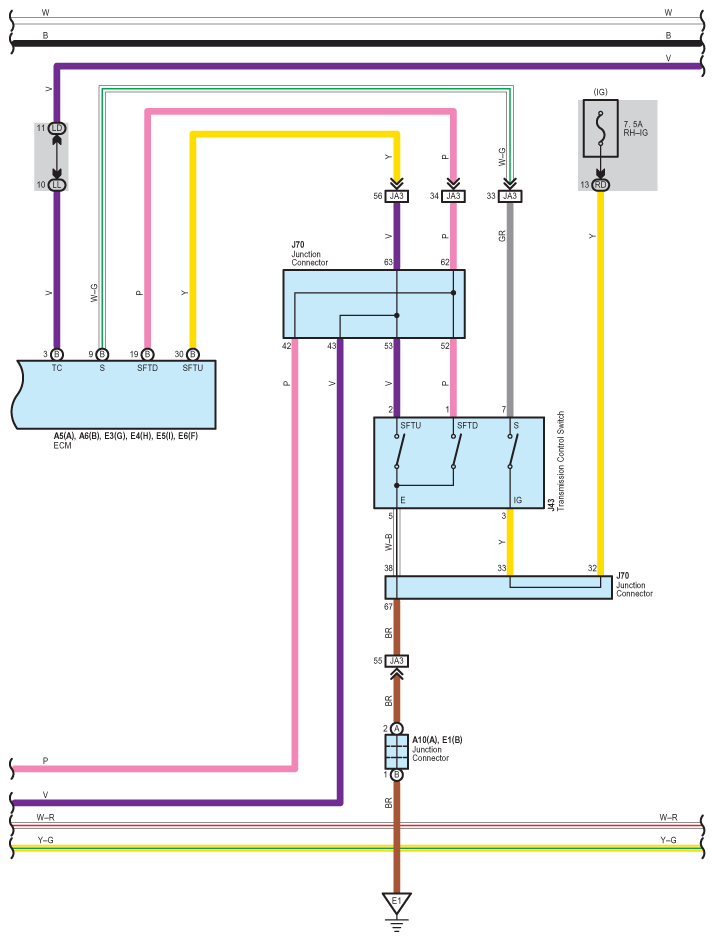

Fig 2: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) - Circuit Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

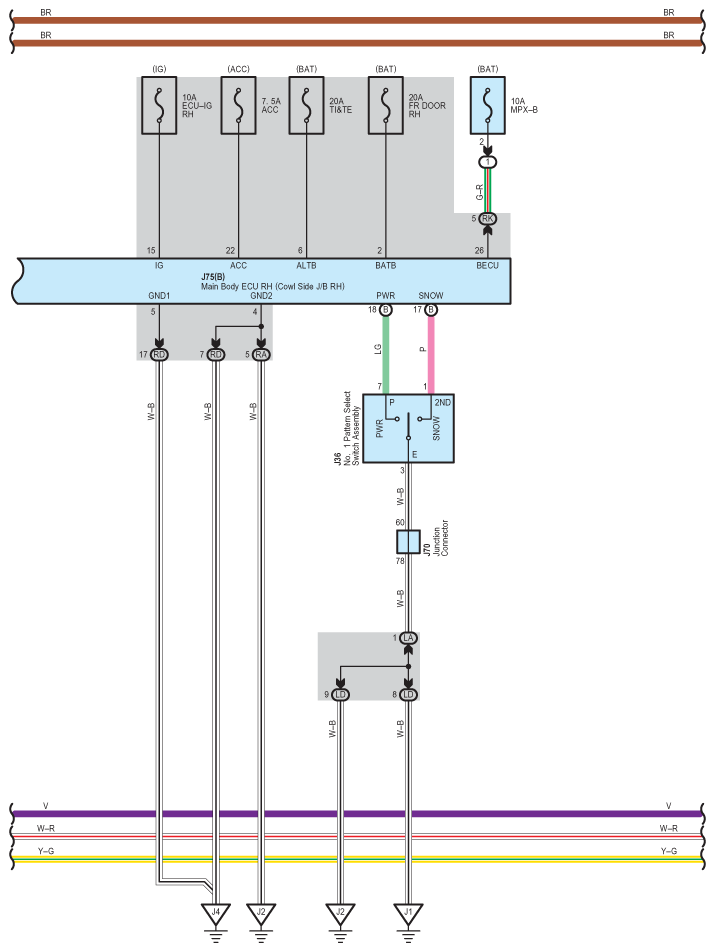

Fig 3: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) - Circuit Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

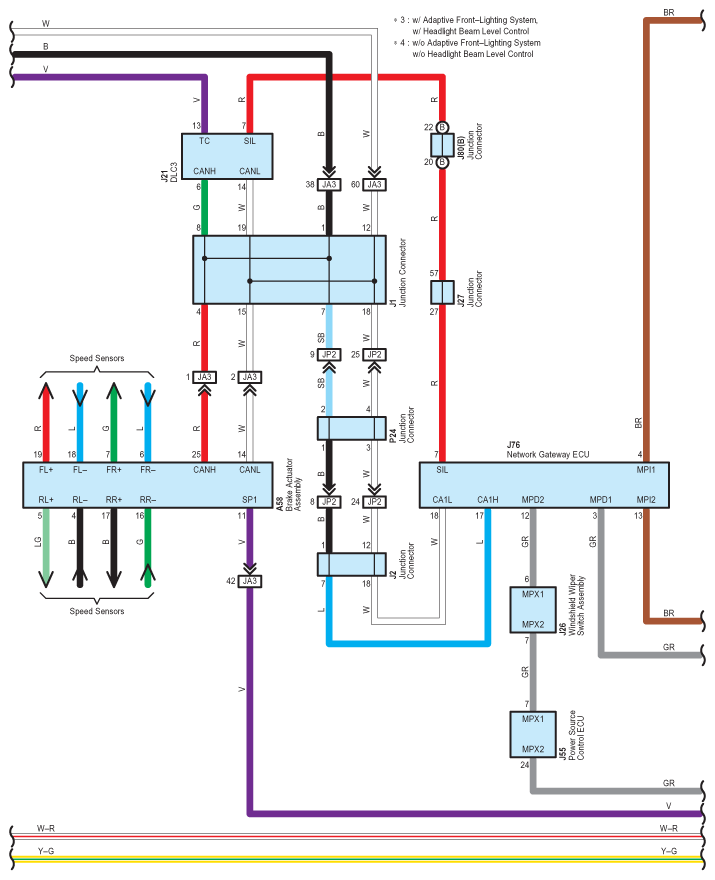

Fig 4: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) - Circuit Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

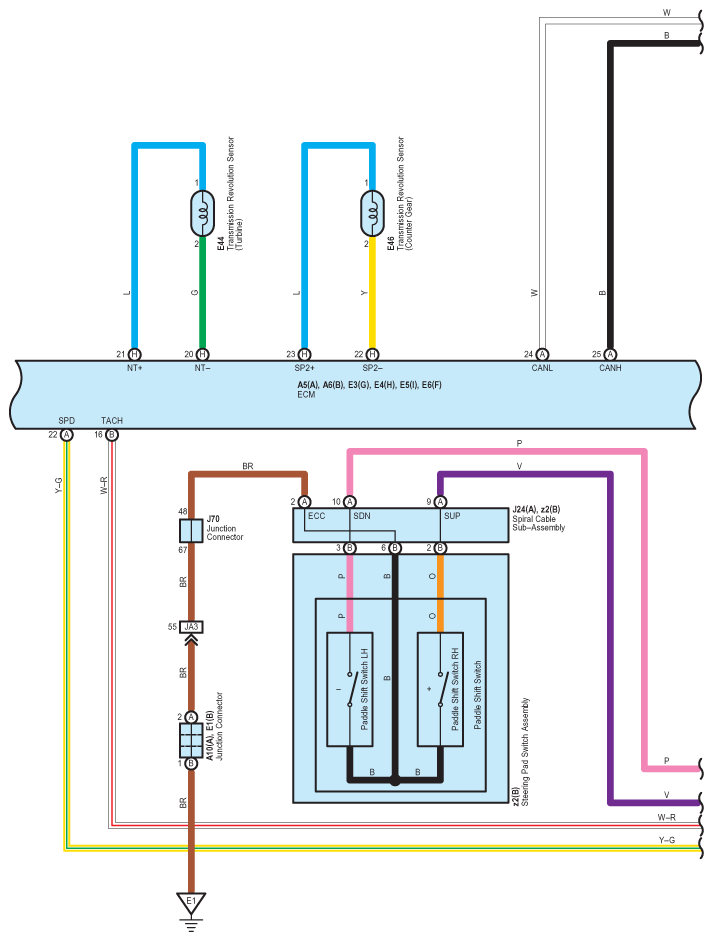

Fig 5: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) - Circuit Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

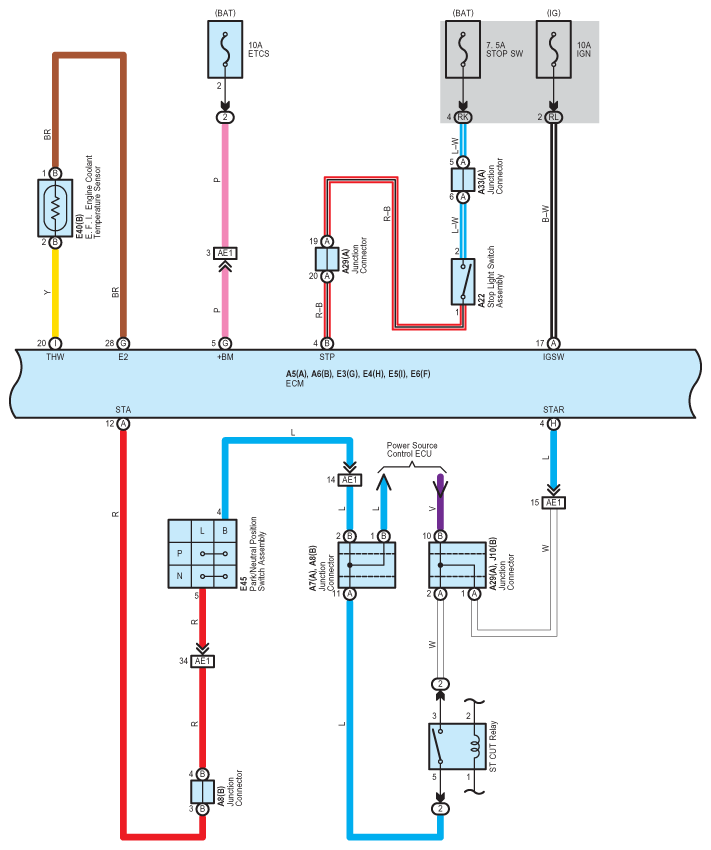

Fig 6: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) - Circuit Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

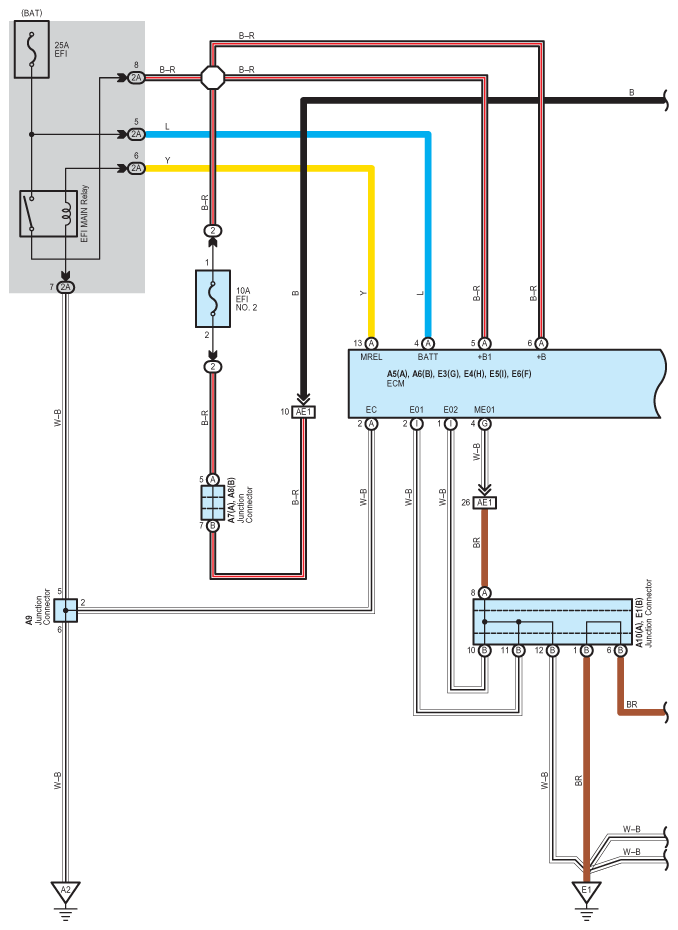

Fig 7: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) - Circuit Diagram (7 Of 10)

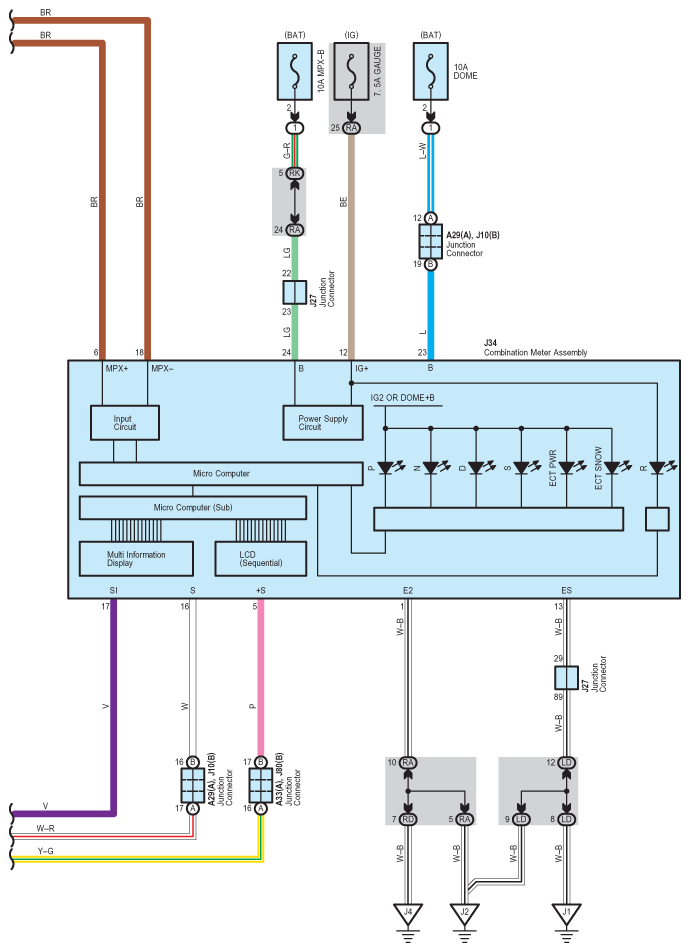

Fig 8: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) - Circuit Diagram (8 Of 10)

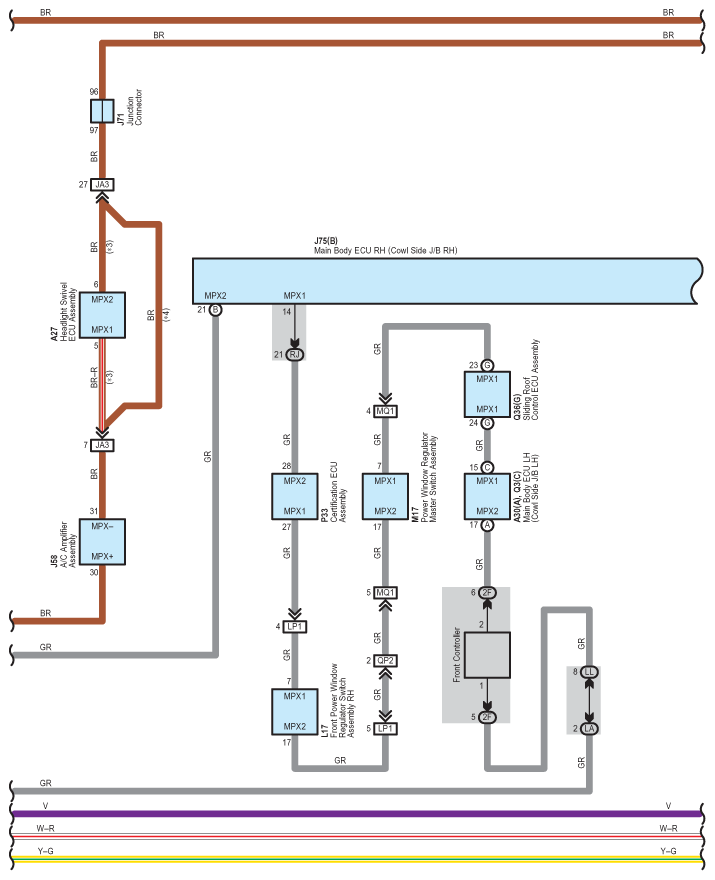

Fig 9: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) - Circuit Diagram (9 Of 10)

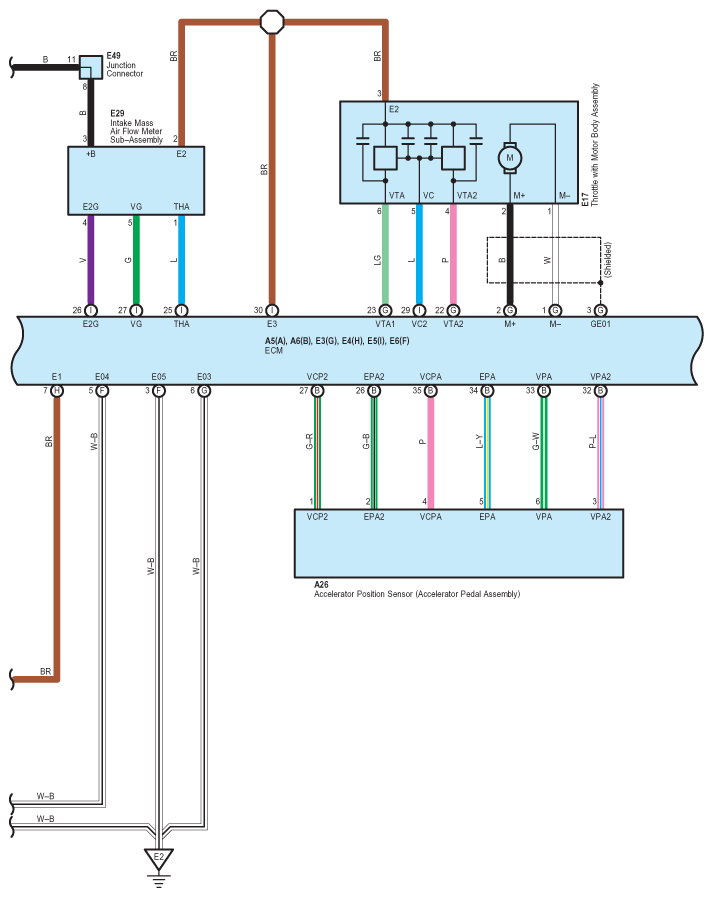

Fig 10: Electronically Controlled Transmission And A/T Indicator (4GR-FSE) - Circuit Diagram (10 Of 10)
